FL250HET'21
Section 12: THROTTLE BODY ASSY 3 CAJA DE ACELERADOR COMPL 3 (v2)
Model code: 6FK5
Section 12 β THROTTLE BODY ASSY 3 CAJA DE ACELERADOR COMPL 3
FL250HET'21
100%

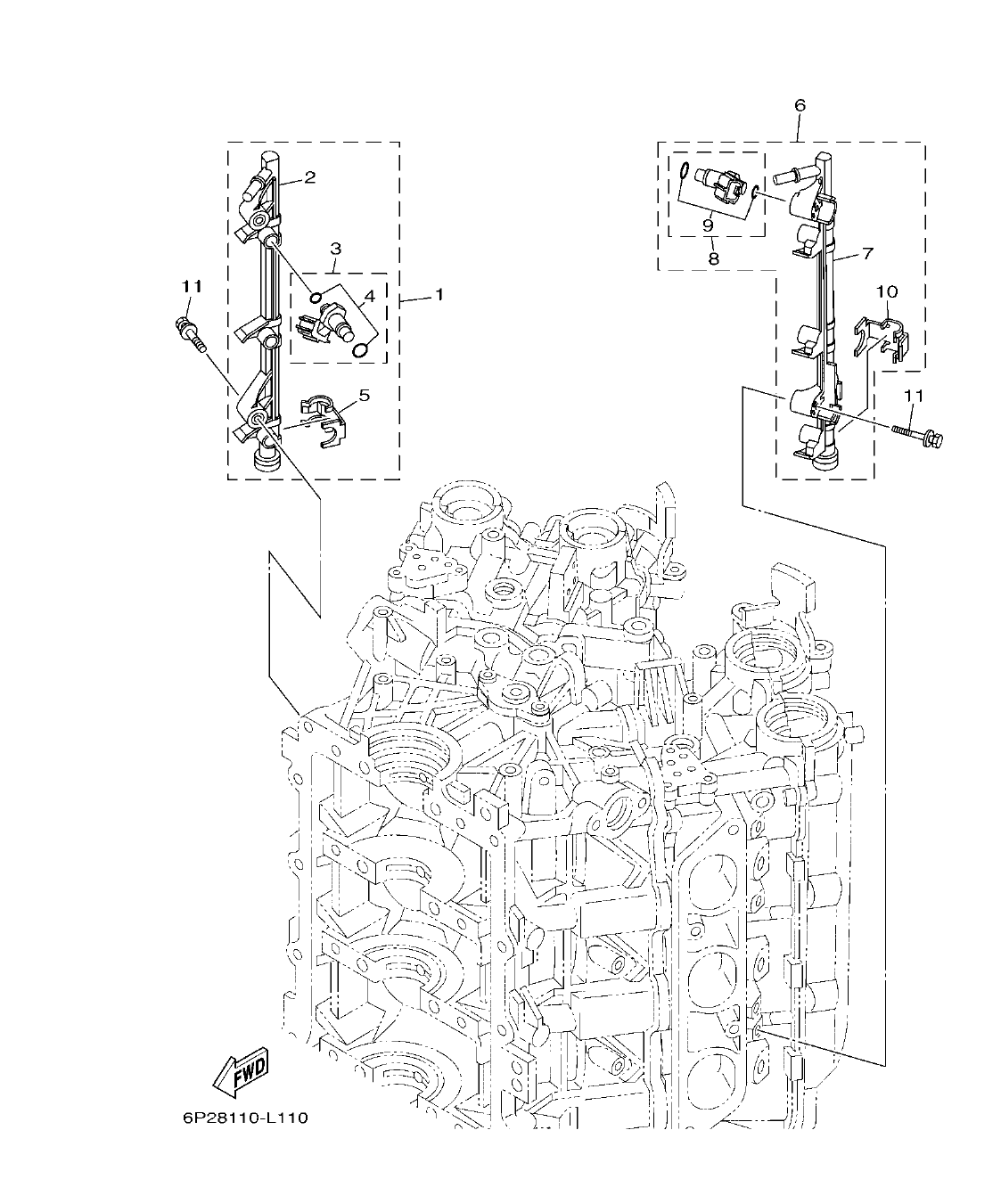

Diagram image
Open full size
Parts list
Section 12
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6P2-13160-11
DELIVERY PIPE ASSY 1 1
|
1 | |
| 2 |
6P2-13161-00
.PIPE, DELIVERY 1 1
|
1 | |
| 3 |
6P2-13761-11
.INJECTOR 3
|
3 | |
| 4 |
6C5-1410B-00
..PACKING KIT 1
|
1 | |
| 5 |
6P2-13577-00
.CLIP 3
|
3 | |
| 6 |
6P2-13170-11
DELIVERY PIPE ASSY 2 1
|
1 | |
| 7 |
6P2-13171-00
.PIPE, DELIVERY 2 1
|
1 | |
| 8 |
6P2-13761-11
.INJECTOR 3
|
3 | |
| 9 |
6C5-1410B-00
..PACKING KIT 1
|
1 | |
| 10 |
6P2-13577-00
.CLIP 3
|
3 | |
| 11 |
90119-06296
BOLT, WITH WASHER 4
|
4 |
