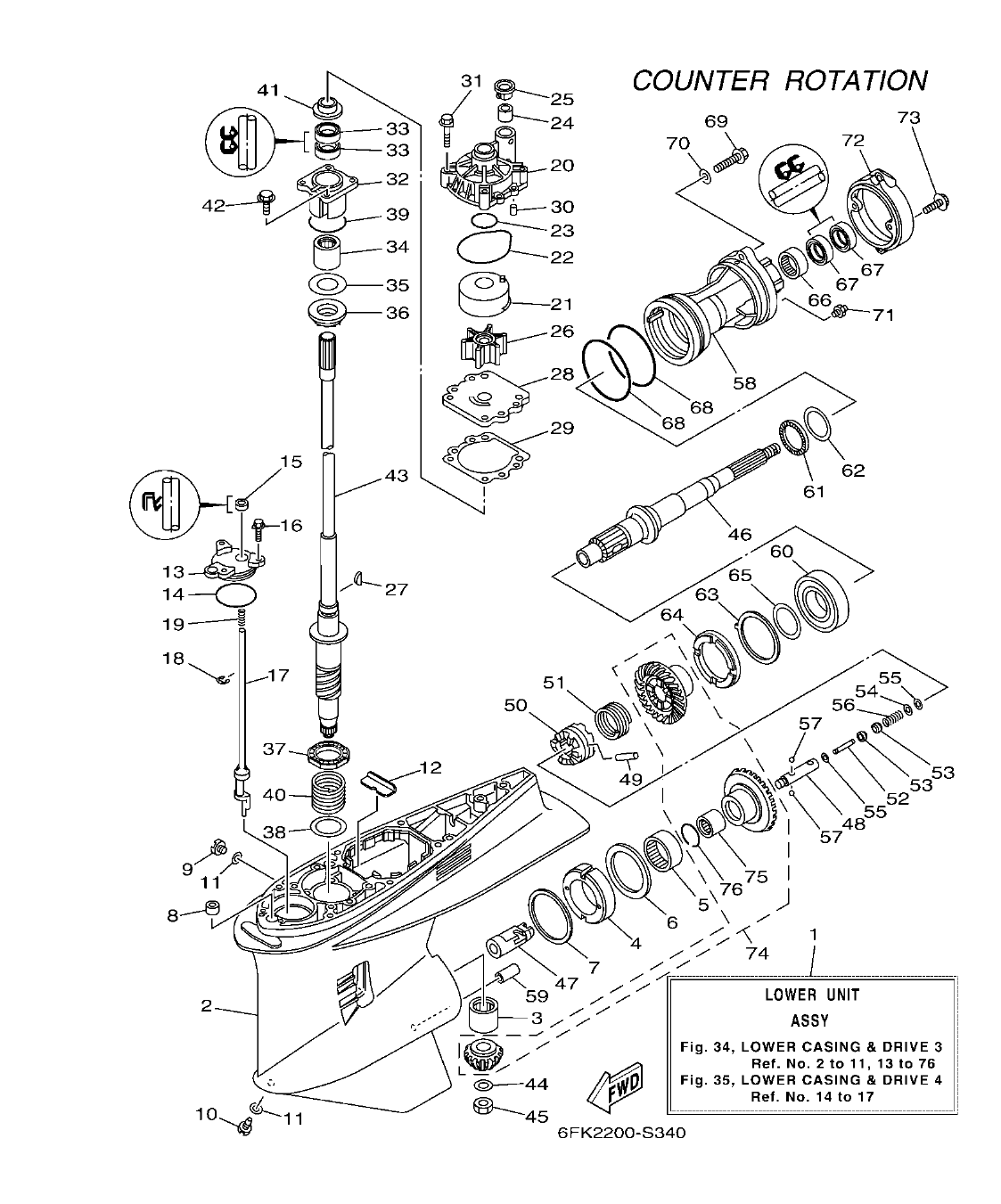

Section 34: LOWER CASING & DRIVE 3 IMPULSOR E INFERIOR 3 (v2)
Model code: 6FK5
Section 34 β LOWER CASING & DRIVE 3 IMPULSOR E INFERIOR 3
FL250HET'21
100%
Diagram image
Open full size
Parts list
Section 34
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6FK-45300-13-8D
LOWER UNIT ASSY
U(30.3"),LH
|
1 | |
| 1 |
6FK-45300-03-8D
LOWER UNIT ASSY
X(25.3"),LH
|
1 |
17,902.29 AED
Check price & stock on WhatsApp
|
| 2 |
6DX-45301-00-8D
CASING, LOWER
|
1 | |
| 3 |
93311-83280
BEARING
|
1 | |
| 4 |
61B-45538-01
SPACER
|
1 | |
| 5 |
93315-660W3
BEARING
|
1 | |
| 6 |
93341-670V0
BEARING
|
1 | |
| 7 |
61A-45567-00
SHIM (T:0.10MM)
UR
|
1 | |
| 7 |
61A-45567-10
SHIM (T:0.12MM)
UR
|
1 | |
| 7 |
61A-45567-20
SHIM (T:0.15MM)
UR
|
1 | |
| 7 |
61A-45567-30
SHIM (T:0.18MM)
UR
|
1 | |
| 7 |
61A-45567-40
SHIM (T:0.30MM)
UR
|
1 | |
| 7 |
61A-45567-50
SHIM (T:0.40MM)
UR
|
1 | |
| 7 |
61A-45567-60
SHIM (T:0.50MM)
UR
|
1 | |
| 8 |
663-44366-01
DAMPER, WATER SEAL
|
1 | |
| 9 |
90340-08002
PLUG, STRAIGHT SCREW
|
1 | |
| 10 |
688-45341-10
PLUG, DRAIN
|
1 | |
| 11 |
90430-08003
GASKET
|
2 | |
| 12 |
61A-45376-00
GUIDE, SEAL DAMPER
|
1 | |
| 13 |
61A-45321-01
PLATE
|
1 | |
| 14 |
93210-64488
O-RING
|
1 | |
| 15 |
93106-09014
OIL SEAL
|
1 | |
| 16 |
90119-06286
BOLT, WITH WASHER
|
3 | |
| 17 |
69K-44150-00
SHIFT CAM ASSY
|
1 | |
| 18 |
99001-08600
CIRCLIP
|
1 | |
| 19 |
90501-11M10
SPRING, COMPRESSION
|
1 | |
| 20 |
61A-44311-01
HOUSING, WATER PUMP
|
1 | |
| 21 |
6R3-44322-42
INSERT, CARTRIDGE
FOR CHROMATE
|
1 | |
| 22 |
93210-86M38
O-RING
|
1 | |
| 23 |
93210-37160
O-RING
|
1 | |
| 24 |
6E5-44365-01
DAMPER, WATER SEAL
|
1 | |
| 25 |
6E5-44312-00
COVER, WATER PUMP HOUSING
|
1 | |
| 26 |
6E5-44352-01
IMPELLER
|
1 | |
| 27 |
90280-04M05
KEY, WOODRUFF
|
1 | |
| 28 |
6G5-44323-41
OUTER PLATE, CARTRIDGE
FOR CHROMATE
|
1 | |
| 29 |
6E5-44315-A0
GASKET, WATER PUMP
|
1 | |
| 30 |
93606-12019
PIN, DOWEL
|
2 | |
| 31 |
90119-08191
BOLT, WITH WASHER
|
4 | |
| 32 |
61A-45331-00-9S
HOUSING, BEARING
|
1 | |
| 33 |
93101-28019
OIL SEAL
|
2 | |
| 34 |
93317-330U2
BEARING
|
1 | |
| 35 |
61A-45587-00
SHIM (T:0.10MM)
UR
|
1 | |
| 35 |
61A-45587-10
SHIM (T:0.12MM)
UR
|
1 | |
| 35 |
61A-45587-20
SHIM (T:0.15MM)
UR
|
1 | |
| 35 |
61A-45587-30
SHIM (T:0.18MM)
UR
|
1 | |
| 35 |
61A-45587-40
SHIM (T:0.30MM)
UR
|
1 | |
| 35 |
61A-45587-50
SHIM (T:0.40MM)
UR
|
1 | |
| 35 |
61A-45587-60
SHIM (T:0.50MM)
UR
|
1 | |
| 36 |
93341-93020
BEARING
|
1 | |
| 37 |
93341-34019
BEARING
|
1 | |
| 38 |
90201-42014
WASHER, PLATE
|
1 | |
| 39 |
93210-55M14
O-RING
|
1 | |
| 40 |
90501-450A2
SPRING, COMPRESSION
|
1 | |
| 41 |
6E5-45344-00
COVER, OIL SEAL
|
1 | |
| 42 |
97E95-08525
BOLT, HEXAGON W/W DEEP RECESS
|
4 | |
| 43 |
6P2-45501-01
DRIVE SHAFT COMP.
X(25.3")
|
1 | |
| 43 |
6P2-45501-11
DRIVE SHAFT COMP.
U(30.3")
|
1 | |
| 44 |
90201-16M00
WASHER, PLATE
|
1 | |
| 45 |
90170-16M19
NUT
|
1 | |
| 46 |
69K-45611-01
SHAFT, PROPELLER
|
1 | |
| 47 |
61B-45641-01
SHIFTER
|
1 | |
| 48 |
61A-45634-01
SLIDE, SHIFT
|
1 | |
| 49 |
61A-45632-00
PIN, CROSS
|
1 | |
| 50 |
69J-45631-00
CLUTCH, DOG
|
1 | |
| 51 |
61A-45633-00
RING, CROSS PIN
|
1 | |
| 52 |
6H1-45668-00
SHAFT, FREE
|
1 | |
| 53 |
61A-45635-00
PLUNGER, SHIFT
|
2 | |
| 54 |
90201-02M00
WASHER, PLATE
|
1 | |
| 55 |
90183-02M03
NUT, SPRING
|
2 | |
| 56 |
90501-10M77
SPRING, COMPRESSION
|
1 | |
| 57 |
93501-04011
BALL
|
2 | |
| 58 |
6DY-45332-00
HOUSING, BEARING
|
1 | |
| 59 |
99590-10114
PIN, DOWEL
|
1 | |
| 60 |
93332-00048
BEARING
|
1 | |
| 61 |
93341-440U5
BEARING
|
1 | |
| 62 |
6K1-45578-60
SHIM (T:0.50MM)
UR
|
1 | |
| 62 |
6K1-45578-50
SHIM (T:0.40MM)
UR
|
1 | |
| 62 |
6K1-45578-20
SHIM (T:0.15MM)
UR
|
1 | |
| 62 |
6K1-45578-40
SHIM (T:0.30MM)
UR
|
1 | |
| 62 |
6K1-45578-10
SHIM (T:0.12MM)
UR
|
1 | |
| 62 |
6K1-45578-01
SHIM (T:0.10MM)
UR
|
1 | |
| 62 |
6K1-45578-30
SHIM (T:0.18MM)
UR
|
1 | |
| 63 |
61B-45383-00
WASHER, CLAW
|
1 | |
| 64 |
6DY-45384-00
NUT
|
1 | |
| 65 |
69K-45577-60
SHIM (T:0.50MM)
UR
|
1 | |
| 65 |
69K-45577-50
SHIM (T:0.40MM)
UR
|
1 | |
| 65 |
69K-45577-40
SHIM (T:0.30MM)
UR
|
1 | |
| 65 |
69K-45577-30
SHIM (T:0.18MM)
UR
|
1 | |
| 65 |
69K-45577-20
SHIM (T:0.15MM)
UR
|
1 | |
| 65 |
69K-45577-10
SHIM (T:0.12MM)
UR
|
1 | |
| 65 |
69K-45577-00
SHIM (T:0.10MM)
UR
|
1 | |
| 66 |
93315-43064
BEARING
|
1 | |
| 67 |
93101-30030
OIL SEAL
|
2 | |
| 68 |
93211-04384
O-RING
|
2 | |
| 69 |
90105-08049
BOLT, FLANGE
|
2 | |
| 70 |
90201-08023
WASHER, PLATE
|
2 | |
| 71 |
93700-09M00
NIPPLE, GREASE
|
1 | |
| 72 |
6D0-45361-00-8D
CAP, LOWER CASING
|
1 | |
| 73 |
97E95-08520
BOLT, HEXAGON W/W DEEP RECESS
|
2 | |
| 74 |
6FK-45550-00
GEAR SET
|
1 | |
| 75 |
93317-62891
.BEARING
|
1 | |
| 76 |
93450-37097
.CIRCLIP
|
1 |
