F70LA

Section 3: CRANKSHAFT & PISTON (v2)

Engine sections in this catalog
TOP COWLING FUEL INJECTION PUMP 2 OIL PUMP FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 ELECTRICAL 4 STARTING MOTOR CYLINDER & CRANKCASE 1 BOTTOM COWLING 1 BOTTOM COWLING 2 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 CRANKSHAFT & PISTON LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 OPTIONAL PARTS 3 OPTIONAL PARTS 4 OPTIONAL PARTS 5 REPAIR KIT 1 REPAIR KIT 2 CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 INTAKE 3 FUEL INJECTION PUMP 1

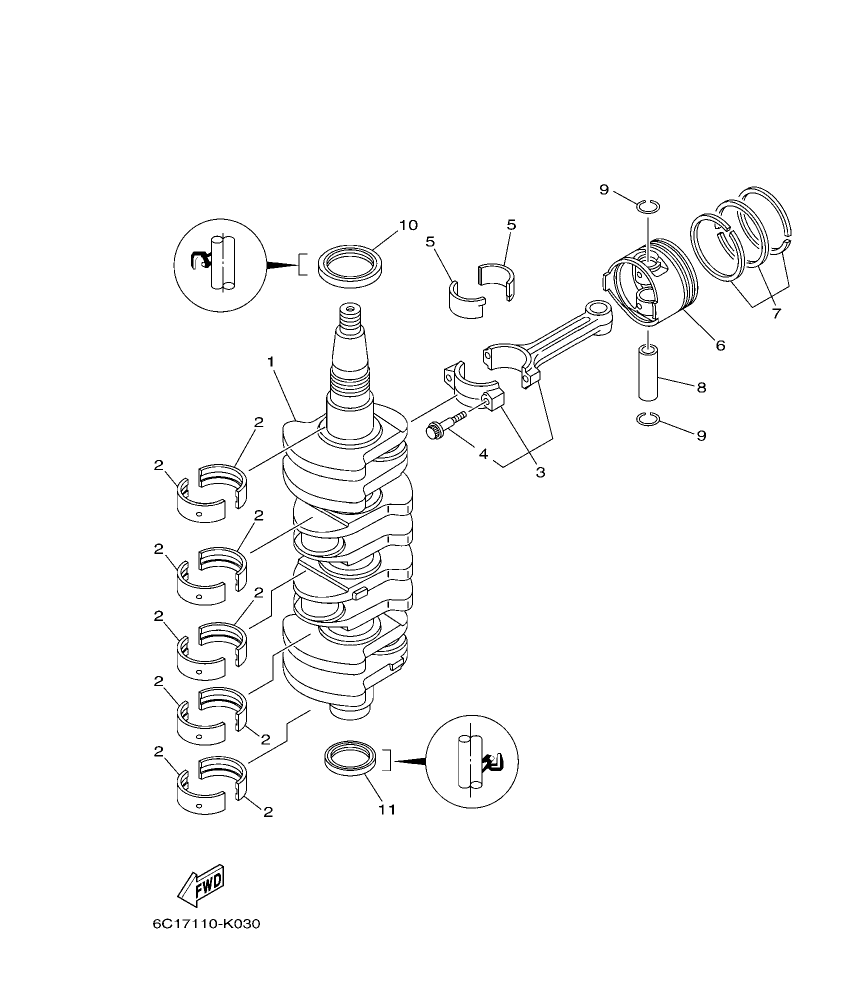

F70LA – section 3 CRANKSHAFT & PISTON parts diagram

Diagram for section 3: CRANKSHAFT & PISTON.

Ref Part No. Qty Buy
2
6C5-11411-01
CRANKSHAFT
 1 Ask on WhatsApp
3
6BG-11416-00
PLANE BEARING, CRANKSHAFT 1
 10 Ask on WhatsApp
4
6BG-11416-10
PLANE BEARING, CRANKSHAFT 1
 10 Ask on WhatsApp
5
6BG-11416-20
PLANE BEARING, CRANKSHAFT 1
 10 Ask on WhatsApp
6
6BG-11416-30
PLANE BEARING, CRANKSHAFT 1
 10 Ask on WhatsApp
7
6C5-11650-00
CONNECTING ROD ASSY
 4 Ask on WhatsApp
8
6C5-11654-00
.BOLT, CONNECTING ROD
 2 Ask on WhatsApp
9
6CJ-11656-00
PLANE BEARING, CONNECTING ROD
 8 Ask on WhatsApp
10
6CJ-11656-10
PLANE BEARING, CONNECTING ROD
 8 Ask on WhatsApp
11
6CJ-11656-20
PLANE BEARING, CONNECTING ROD
 8 Ask on WhatsApp
12
6CJ-11656-30
PLANE BEARING, CONNECTING ROD
 8 Ask on WhatsApp
13
6CJ-11631-00-96
PISTON (STD)
 4 Ask on WhatsApp
14
6CJ-11635-00
PISTON (0.25MM O/S)
 4 Ask on WhatsApp
15
6CJ-11636-00
PISTON (0.50MM O/S)
 4 Ask on WhatsApp
16
67C-11603-00
PISTON RING SET (STD)
 4 Ask on WhatsApp
17
67C-11604-00
PISTON RING SET (0.25MM O/S)
 4 Ask on WhatsApp
18
67C-11605-00
PISTON RING SET (0.50MM O/S)
 4 Ask on WhatsApp
19
62Y-11633-00
PIN, PISTON
 4 Ask on WhatsApp
20
93450-17129
CIRCLIP
 8
Price: 3.72 AED
In stock (207 pcs)
21
93102-43004
OIL SEAL
 1 Ask on WhatsApp
22
93101-35002
OIL SEAL
 1
Price: 47.67 AED
In stock (62 pcs)
