F70LA
Section 38: REPAIR KIT 2 (v2)
Engine sections in this catalog
TOP COWLING
FUEL INJECTION PUMP 2
OIL PUMP
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
ELECTRICAL 4
STARTING MOTOR
CYLINDER & CRANKCASE 1
BOTTOM COWLING 1
BOTTOM COWLING 2
CONTROL
BRACKET 1
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
CRANKSHAFT & PISTON
LOWER CASING & DRIVE 2
STEERING GUIDE
OPTIONAL PARTS 1
OPTIONAL PARTS 2
OPTIONAL PARTS 3
OPTIONAL PARTS 4
OPTIONAL PARTS 5
REPAIR KIT 1
REPAIR KIT 2
CYLINDER & CRANKCASE 2
VALVE
INTAKE 1
INTAKE 2
INTAKE 3
FUEL INJECTION PUMP 1

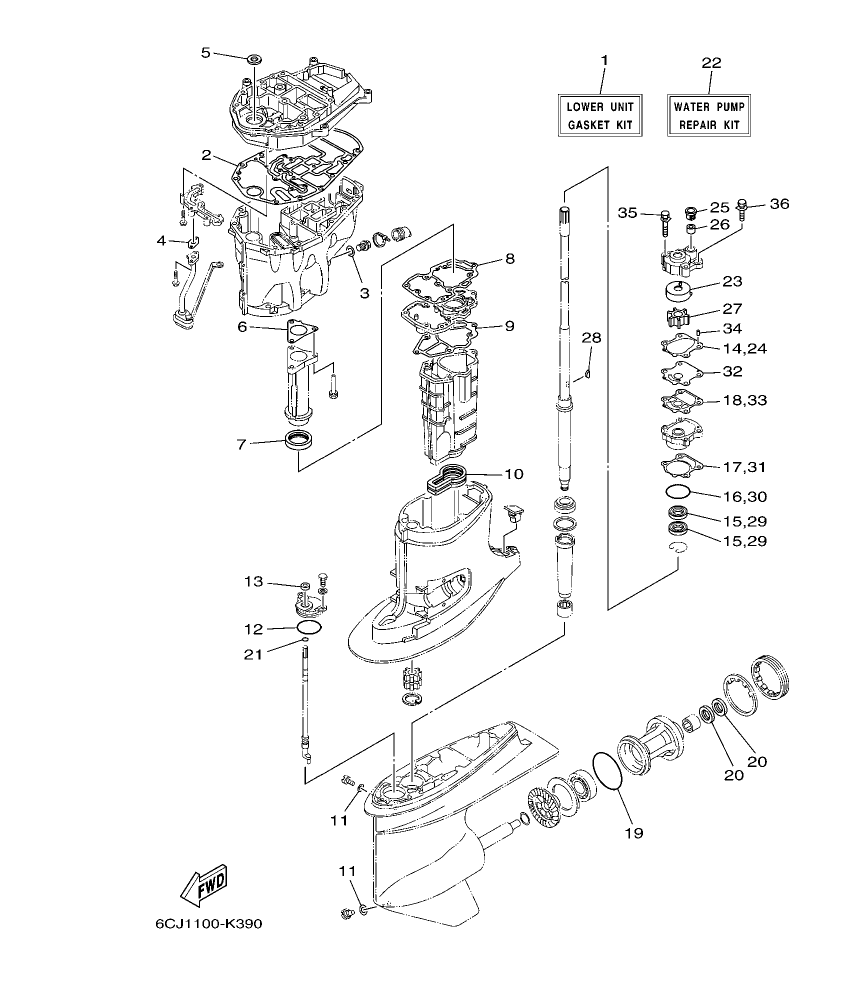

Diagram for section 38: REPAIR KIT 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 2 |
6CJ-W0001-20
LOWER UNIT GASKET KIT
|
1 | Ask on WhatsApp |
| 2 |
90280-03M03
.KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 3 |
6C5-15312-01
.GASKET, OIL PAN
|
1 | Ask on WhatsApp |
| 3 |
93101-23070
.OIL SEAL
|
2 |
Price:
23.84 AED
In stock
(35 pcs)
|
| 4 |
90430-14M09
.GASKET
|
1 | Ask on WhatsApp |
| 4 |
93210-46044
.O-RING
|
1 |
Price:
5.96 AED
In stock
(320 pcs)
|
| 5 |
6C5-13414-01
.GASKET, STRAINER COVER
|
1 | Ask on WhatsApp |
| 5 |
6CJ-44316-00
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 6 |
6CJ-44323-00
.OUTER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 6 |
93103-18011
.OIL SEAL
|
1 |
Price:
26.28 AED
In stock
(1 pcs)
|
| 7 |
6C5-41133-00
.GASKET, EXHAUST MANIFOLD 1
|
1 | Ask on WhatsApp |
| 7 |
6CJ-44324-00
.GASKET, CARTRIDGE
|
1 | Ask on WhatsApp |
| 8 |
6C5-46132-00
.GASKET 1
|
1 | Ask on WhatsApp |
| 8 |
93604-10M03
.PIN, DOWEL
|
2 | Ask on WhatsApp |
| 9 |
6C5-41134-00
.GASKET, EXHAUST MANIFOLD
|
1 | Ask on WhatsApp |
| 9 |
90119-08M33
.BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 10 |
6C5-41135-00
.GASKET, EXHAUST MANIFOLD
|
1 | Ask on WhatsApp |
| 10 |
90119-08M14
.BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 11 |
6C5-45123-00
.GASKET, MUFFLER
|
1 | Ask on WhatsApp |
| 12 |
90430-08020
.GASKET
|
2 | Ask on WhatsApp |
| 13 |
93210-49046
.O-RING
|
1 |
Price:
5.96 AED
In stock
(61 pcs)
|
| 14 |
93106-09014
.OIL SEAL
|
1 |
Price:
8.19 AED
In stock
(2 pcs)
|
| 15 |
6CJ-44315-00
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 16 |
93101-23070
.OIL SEAL
|
2 |
Price:
23.84 AED
In stock
(35 pcs)
|
| 17 |
93210-46044
.O-RING
|
1 |
Price:
5.96 AED
In stock
(320 pcs)
|
| 18 |
6CJ-44316-00
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 19 |
6CJ-44324-00
.GASKET, CARTRIDGE
|
1 | Ask on WhatsApp |
| 20 |
93210-86M39
.O-RING
|
1 | Ask on WhatsApp |
| 21 |
93101-25M03
.OIL SEAL
|
2 | Ask on WhatsApp |
| 22 |
93210-07003
.O-RING
|
1 | Ask on WhatsApp |
| 23 |
6CJ-W0078-00
WATER PUMP REPAIR KIT
|
1 | Ask on WhatsApp |
| 24 |
63D-44322-00
.INSERT, CARTRIDGE
|
1 | Ask on WhatsApp |
| 25 |
6CJ-44315-00
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 26 |
63D-44312-00
.COVER, WATER PUMP HOUSING
|
1 | Ask on WhatsApp |
| 27 |
663-44366-00
.DAMPER, WATER SEAL
|
1 | Ask on WhatsApp |
| 28 |
6H3-44352-00
.IMPELLER
|
1 | Ask on WhatsApp |
