F70LA

Section 30: LOWER CASING & DRIVE 2 (v2)

Engine sections in this catalog
TOP COWLING FUEL INJECTION PUMP 2 OIL PUMP FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 ELECTRICAL 4 STARTING MOTOR CYLINDER & CRANKCASE 1 BOTTOM COWLING 1 BOTTOM COWLING 2 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 CRANKSHAFT & PISTON LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 OPTIONAL PARTS 3 OPTIONAL PARTS 4 OPTIONAL PARTS 5 REPAIR KIT 1 REPAIR KIT 2 CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 INTAKE 3 FUEL INJECTION PUMP 1

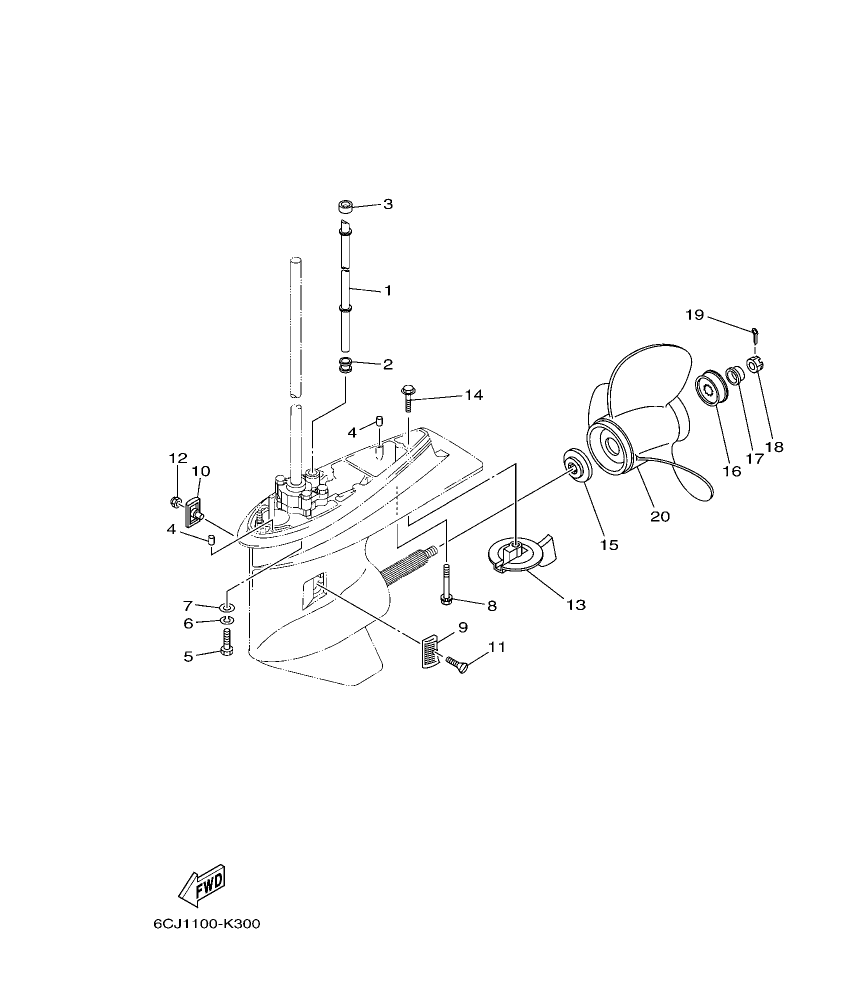

F70LA – section 30 LOWER CASING & DRIVE 2 parts diagram

Diagram for section 30: LOWER CASING & DRIVE 2.

Ref Part No. Qty Buy
2
6CJ-44361-00
TUBE, WATER
 1 Ask on WhatsApp
2
6E5-45958-00-EL
"PROPELLER (3X13-5/8""X14""-K)"
 1 Ask on WhatsApp
3
663-44367-00
DAMPER, WATER SEAL
 1 Ask on WhatsApp
3
688-45970-03-98
"PROPELLER (3X13""X19""-K)"
 1 Ask on WhatsApp
4
663-44366-00
DAMPER, WATER SEAL
 1 Ask on WhatsApp
4
688-45972-02-98
"PROPELLER (3X13""X21""-K)"
 1 Ask on WhatsApp
5
688-45974-02-98
"PROPELLER (3X13""X23""-K)"
 1 Ask on WhatsApp
5
93606-12019
PIN, DOWEL
 2
Price: 6.70 AED
In stock (378 pcs)
6
688-45976-01-98
"PROPELLER (3X13""X25""-K)"
 1 Ask on WhatsApp
6
97075-10040
BOLT
 4 Ask on WhatsApp
7
688-45978-60-98
"PROPELLER (3X13-1/2""X16""-K)"
 1 Ask on WhatsApp
7
92995-10100
WASHER
 4 Ask on WhatsApp
8
688-45930-02-98
"PROPELLER (3X13""X17""-K)"
 1 Ask on WhatsApp
8
92995-10600
WASHER
 4 Ask on WhatsApp
9
688-45932-60-98
"PROPELLER (3X13-1/2""X14""-K)"
 1 Ask on WhatsApp
9
90119-08M84
BOLT, WITH WASHER
 1 Ask on WhatsApp
10
68V-45941-00-EL
"PROPELLER (3X13-1/2""X17""-K)"
 1 Ask on WhatsApp
10
6H1-45214-00
COVER, WATER INLET 1
 1 Ask on WhatsApp
11
68V-45943-00-EL
"PROPELLER (3X13-1/2""X19""-K)"
 1 Ask on WhatsApp
11
6H1-45215-00
COVER, WATER INLET 2
 1 Ask on WhatsApp
12
90151-05M00
SCREW, COUNTERSUNK
 1 Ask on WhatsApp
13
90185-05002
NUT, NYLON
 1 Ask on WhatsApp
14
67F-45371-00
TAB-TRIM
 1 Ask on WhatsApp
15
90105-10M67
BOLT, FLANGE
 1 Ask on WhatsApp
16
688-45987-01
SPACER
 1
Price: 136.31 AED
In stock (40 pcs)
17
67F-45997-00
SPACER
 1 Ask on WhatsApp
18
90389-25M00
BUSH
 1 Ask on WhatsApp
19
90171-16011
NUT, CASTLE
 1
Price: 17.13 AED
In stock (216 pcs)
20
91490-40025
PIN. COTTER
 1 Ask on WhatsApp
21
6E5-45941-00-EL
"PROPELLER (3X13""X19""-K)"
 1 Ask on WhatsApp
22
6E5-45943-00-EL
"PROPELLER (3X12-5/8""X21""-K)"
 1 Ask on WhatsApp
23
6E5-45945-01-EL
"PROPELLER (3X13-1/4""X17""-K)"
 1 Ask on WhatsApp
24
6E5-45947-00-EL
"PROPELLER (3X13-1/2""X15""-K)"
 1 Ask on WhatsApp
25
6E5-45949-00-EL
"PROPELLER (3X13-5/8""X13""-K)"
 1 Ask on WhatsApp
26
6E5-45952-00-EL
"PROPELLER (3X13""X23""-K)"
 1 Ask on WhatsApp
27
6E5-45954-00-EL
"PROPELLER (3X14""X11""-K)"
 1 Ask on WhatsApp
28
6E5-45956-00-EL
"PROPELLER (3X13""X25""-K)"
 1 Ask on WhatsApp
