F70LA
Section 5: VALVE (v2)
Engine sections in this catalog
TOP COWLING
FUEL INJECTION PUMP 2
OIL PUMP
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
ELECTRICAL 4
STARTING MOTOR
CYLINDER & CRANKCASE 1
BOTTOM COWLING 1
BOTTOM COWLING 2
CONTROL
BRACKET 1
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
CRANKSHAFT & PISTON
LOWER CASING & DRIVE 2
STEERING GUIDE
OPTIONAL PARTS 1
OPTIONAL PARTS 2
OPTIONAL PARTS 3
OPTIONAL PARTS 4
OPTIONAL PARTS 5
REPAIR KIT 1
REPAIR KIT 2
CYLINDER & CRANKCASE 2
VALVE
INTAKE 1
INTAKE 2
INTAKE 3
FUEL INJECTION PUMP 1

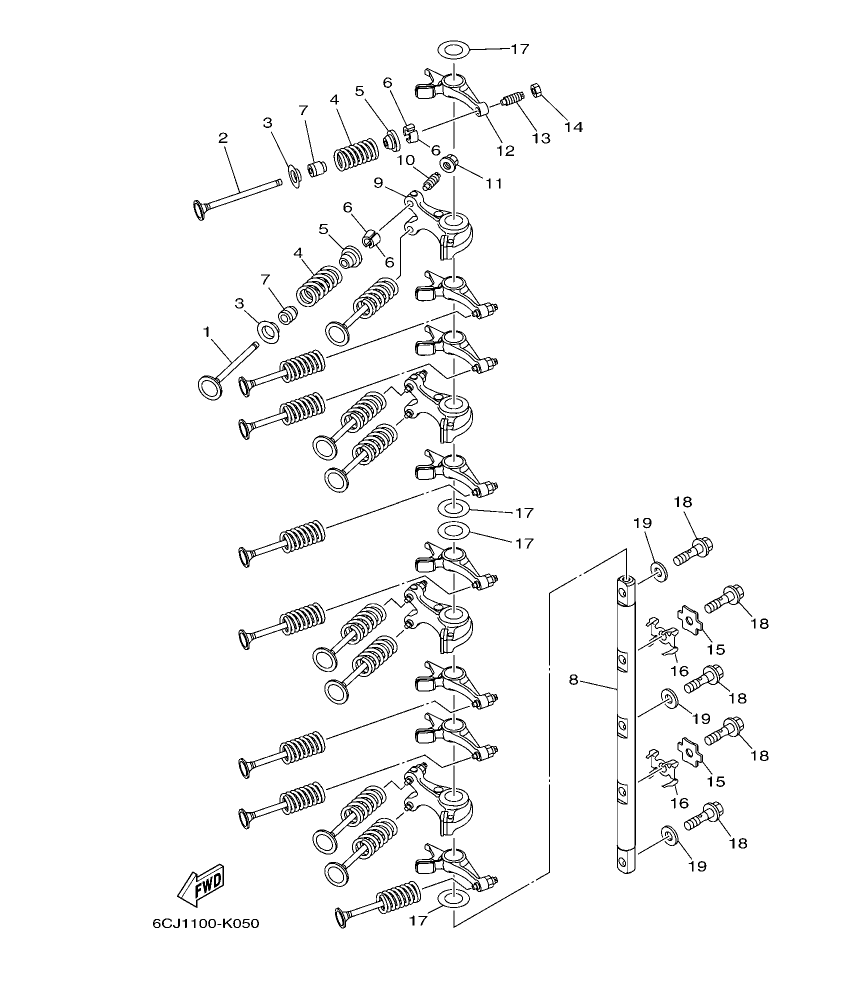

Diagram for section 5: VALVE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 2 |
6CJ-12111-00
VALVE, INTAKE
|
8 | Ask on WhatsApp |
| 3 |
6CJ-12121-00
VALVE, EXHAUST
|
8 | Ask on WhatsApp |
| 4 |
6CJ-12116-00
SEAT, VALVE SPRING
|
16 | Ask on WhatsApp |
| 5 |
6CJ-12113-00
SPRING, VALVE INNER
|
16 | Ask on WhatsApp |
| 6 |
3LD-12117-00
RETAINER, VALVE SPRING
|
16 | Ask on WhatsApp |
| 7 |
3LD-12118-00
COTTER, VALVE
|
32 | Ask on WhatsApp |
| 8 |
51Y-12119-00
SEAL, VALVE STEM
|
16 | Ask on WhatsApp |
| 9 |
6CJ-12146-00
SHAFT, ROCKER
|
1 | Ask on WhatsApp |
| 10 |
6CJ-12151-00
ARM, VALVE ROCKER
|
4 | Ask on WhatsApp |
| 11 |
6C5-12159-00
SCREW, VALVE ADJUSTING
|
8 | Ask on WhatsApp |
| 12 |
6C5-12158-00
NUT, LOCK
|
8 | Ask on WhatsApp |
| 13 |
6CJ-12161-00
ARM, VALVE ROCKER 2
|
8 | Ask on WhatsApp |
| 14 |
64J-12159-00
SCREW, VALVE ADJUSTING
|
8 | Ask on WhatsApp |
| 15 |
62Y-12158-00
NUT, LOCK
|
8 | Ask on WhatsApp |
| 16 |
6CJ-12231-00
GUIDE, STOPPER 1
|
2 | Ask on WhatsApp |
| 17 |
6CJ-12233-00
PLATE, GUIDE STOPPER 1
|
2 | Ask on WhatsApp |
| 18 |
90201-16014
WASHER, PLATE
|
4 | Ask on WhatsApp |
| 19 |
90401-08011
BOLT, UNION
|
5 | Ask on WhatsApp |
| 20 |
92990-08200
WASHER, PLAIN
|
3 | Ask on WhatsApp |
