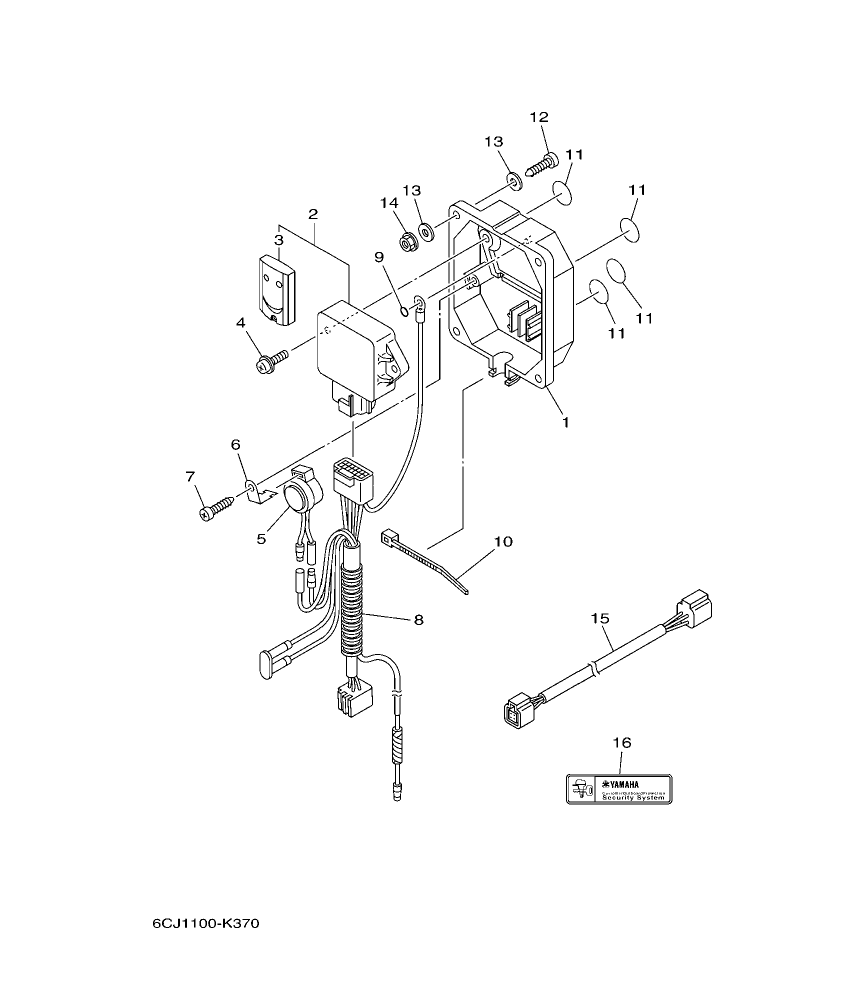

Diagram for section 36: OPTIONAL PARTS 5.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 2 |
6Y8-86267-00
CASE COMPLETE 1
|
1 | Ask on WhatsApp |
| 3 |
6Y8-86260-10
REMOTE CONTROL UNIT ASSY
|
1 | Ask on WhatsApp |
| 4 |
6AA-86261-20
.TRANSMITTER COMP
|
2 | Ask on WhatsApp |
| 5 |
97980-06216
SCREW, WITH WASHER
|
2 | Ask on WhatsApp |
| 6 |
6X4-83383-00
BUZZER
|
1 | Ask on WhatsApp |
| 7 |
6X4-83386-00
STAY, BUZZER
|
1 | Ask on WhatsApp |
| 8 |
97780-60620
SCREW, TAPPING
|
1 | Ask on WhatsApp |
| 9 |
6Y8-82509-10
WIRE, SUB LEAD
|
1 | Ask on WhatsApp |
| 10 |
93210-04279
O-RING
|
1 | Ask on WhatsApp |
| 11 |
90465-11M10
CLAMP
|
1 | Ask on WhatsApp |
| 12 |
6Y8-8454G-00
PATCH 1
|
4 | Ask on WhatsApp |
| 13 |
90167-06M00
SCREW, TAPPING
|
4 | Ask on WhatsApp |
| 14 |
97880-06035
SCREW, PAN HEAD
|
4 | Ask on WhatsApp |
| 15 |
90201-06M30
WASHER, PLATE
|
8 | Ask on WhatsApp |
| 16 |
95780-06300
NUT, FLANGE
|
4 | Ask on WhatsApp |
| 17 |
6Y8-82521-11
2FT PIGTAIL BUS
|
1 | Ask on WhatsApp |
| 18 |
6Y8-48277-00
STICKER 1
|
4 | Ask on WhatsApp |
