F70LA
Section 11: OIL PUMP (v2)
Engine sections in this catalog
TOP COWLING
FUEL INJECTION PUMP 2
OIL PUMP
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
ELECTRICAL 4
STARTING MOTOR
CYLINDER & CRANKCASE 1
BOTTOM COWLING 1
BOTTOM COWLING 2
CONTROL
BRACKET 1
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
CRANKSHAFT & PISTON
LOWER CASING & DRIVE 2
STEERING GUIDE
OPTIONAL PARTS 1
OPTIONAL PARTS 2
OPTIONAL PARTS 3
OPTIONAL PARTS 4
OPTIONAL PARTS 5
REPAIR KIT 1
REPAIR KIT 2
CYLINDER & CRANKCASE 2
VALVE
INTAKE 1
INTAKE 2
INTAKE 3
FUEL INJECTION PUMP 1

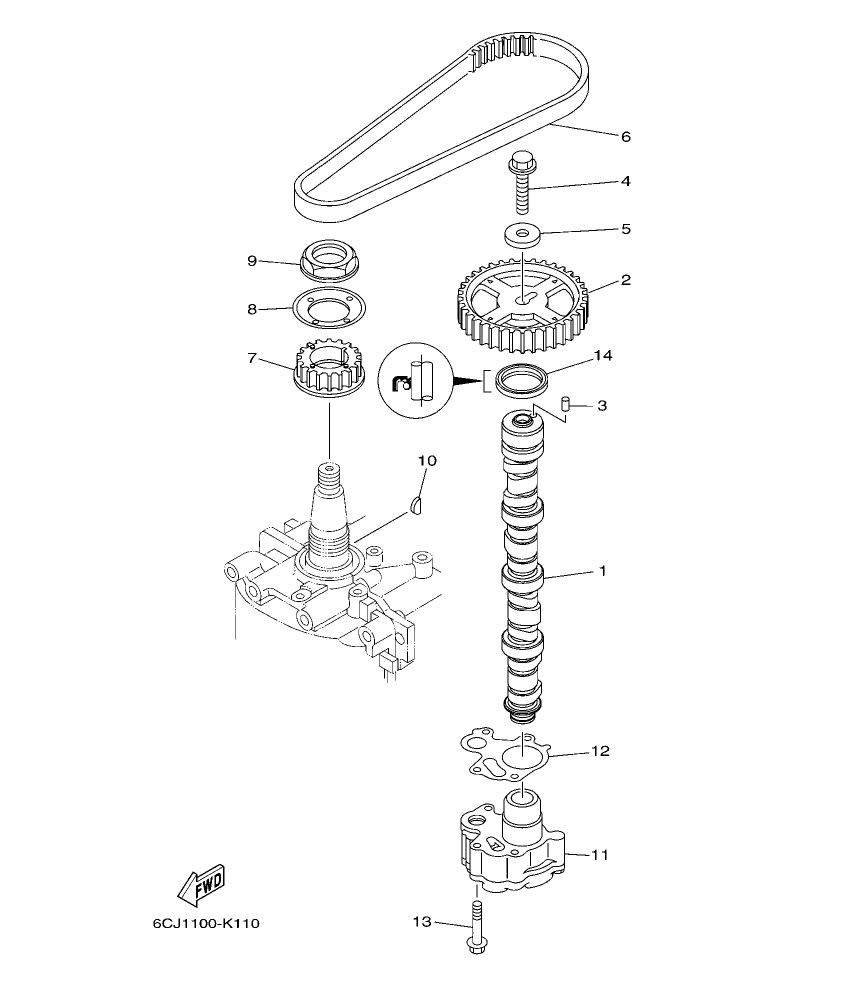

Diagram for section 11: OIL PUMP.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 2 |
6CJ-12171-00
CAMSHAFT 1
|
1 | Ask on WhatsApp |
| 3 |
6C5-11537-00
GEAR, DRIVEN
|
1 | Ask on WhatsApp |
| 4 |
93605-17002
PIN, DOWEL
|
1 | Ask on WhatsApp |
| 5 |
95817-10035
BOLT, FLANGE
|
1 | Ask on WhatsApp |
| 6 |
90201-10144
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 7 |
6C5-46241-00
BELT
|
1 | Ask on WhatsApp |
| 8 |
6C5-11536-00
GEAR, DRIVE
|
1 | Ask on WhatsApp |
| 9 |
62Y-11557-00
WASHER 1
|
1 | Ask on WhatsApp |
| 10 |
90179-35001
NUT
|
1 | Ask on WhatsApp |
| 11 |
90280-03M01
KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 12 |
6CJ-13300-00
OIL PUMP ASSY
|
1 | Ask on WhatsApp |
| 13 |
6C5-13329-00
GASKET, PUMP COVER
|
1 | Ask on WhatsApp |
| 14 |
90119-06025
BOLT, WITH WASHER
|
4 | Ask on WhatsApp |
| 15 |
93102-37M40
OIL SEAL
|
1 | Ask on WhatsApp |
