F70LA

Section 37: REPAIR KIT 1 (v2)

Engine sections in this catalog
TOP COWLING FUEL INJECTION PUMP 2 OIL PUMP FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 ELECTRICAL 4 STARTING MOTOR CYLINDER & CRANKCASE 1 BOTTOM COWLING 1 BOTTOM COWLING 2 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 CRANKSHAFT & PISTON LOWER CASING & DRIVE 2 STEERING GUIDE OPTIONAL PARTS 1 OPTIONAL PARTS 2 OPTIONAL PARTS 3 OPTIONAL PARTS 4 OPTIONAL PARTS 5 REPAIR KIT 1 REPAIR KIT 2 CYLINDER & CRANKCASE 2 VALVE INTAKE 1 INTAKE 2 INTAKE 3 FUEL INJECTION PUMP 1

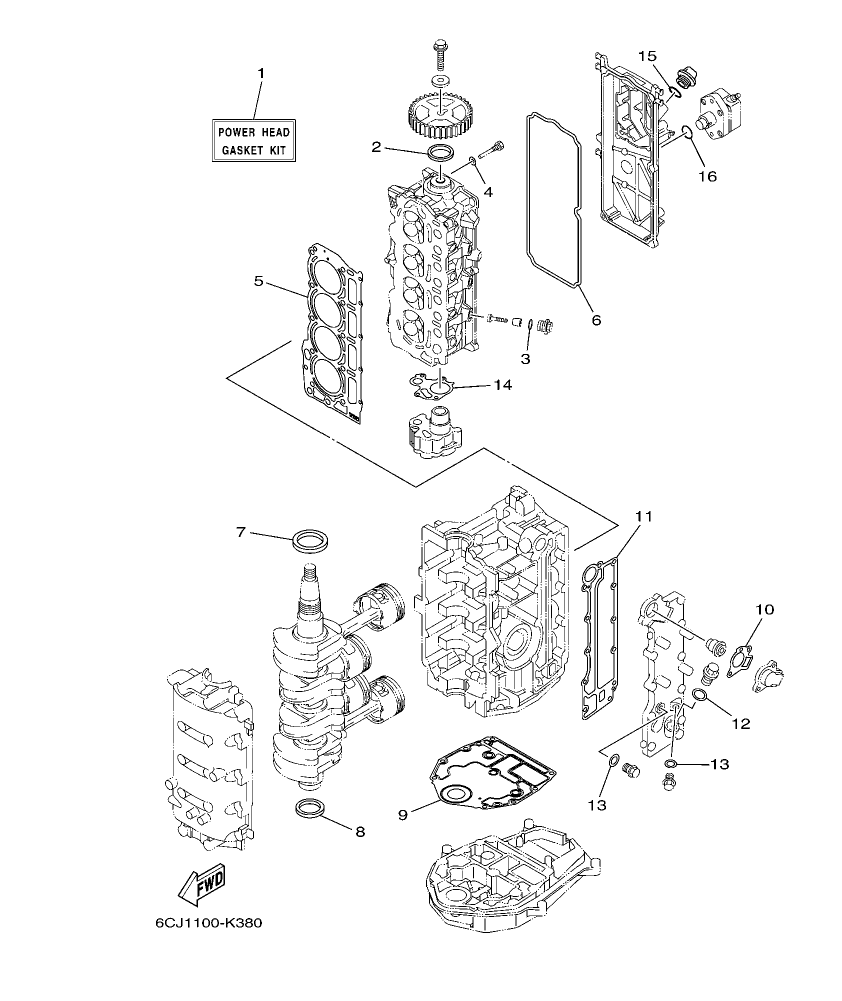

F70LA – section 37 REPAIR KIT 1 parts diagram

Diagram for section 37: REPAIR KIT 1.

Ref Part No. Qty Buy
2
6CJ-W0001-00
POWER HEAD GASKET KIT
 1 Ask on WhatsApp
3
93102-37M40
.OIL SEAL
 1 Ask on WhatsApp
4
93210-13M63
.O-RING
 3 Ask on WhatsApp
5
90430-06014
.GASKET
 1
Price: 3.72 AED
In stock (5 pcs)
6
6CJ-11181-00
.GASKET, CYLINDER HEAD 1
 1 Ask on WhatsApp
7
6CJ-11356-00
.SEAL, CYLINDER 2
 1 Ask on WhatsApp
8
93102-43004
.OIL SEAL
 1 Ask on WhatsApp
9
93101-35002
.OIL SEAL
 1
Price: 47.67 AED
In stock (62 pcs)
10
6BG-11351-00
.GASKET, CYLINDER
 1 Ask on WhatsApp
11
62Y-12414-00
.GASKET, COVER
 1 Ask on WhatsApp
12
6C5-41114-10
.GASKET, EXHAUST OUTER COVER
 1 Ask on WhatsApp
13
90430-18130
.GASKET
 1 Ask on WhatsApp
14
90430-14115
.GASKET
 2
Price: 3.72 AED
In stock (1 pcs)
15
6C5-13329-00
.GASKET, PUMP COVER
 1 Ask on WhatsApp
16
93210-24M79
.O-RING
 1 Ask on WhatsApp
17
93210-24M79
.O-RING
 1 Ask on WhatsApp
