F200BET'19

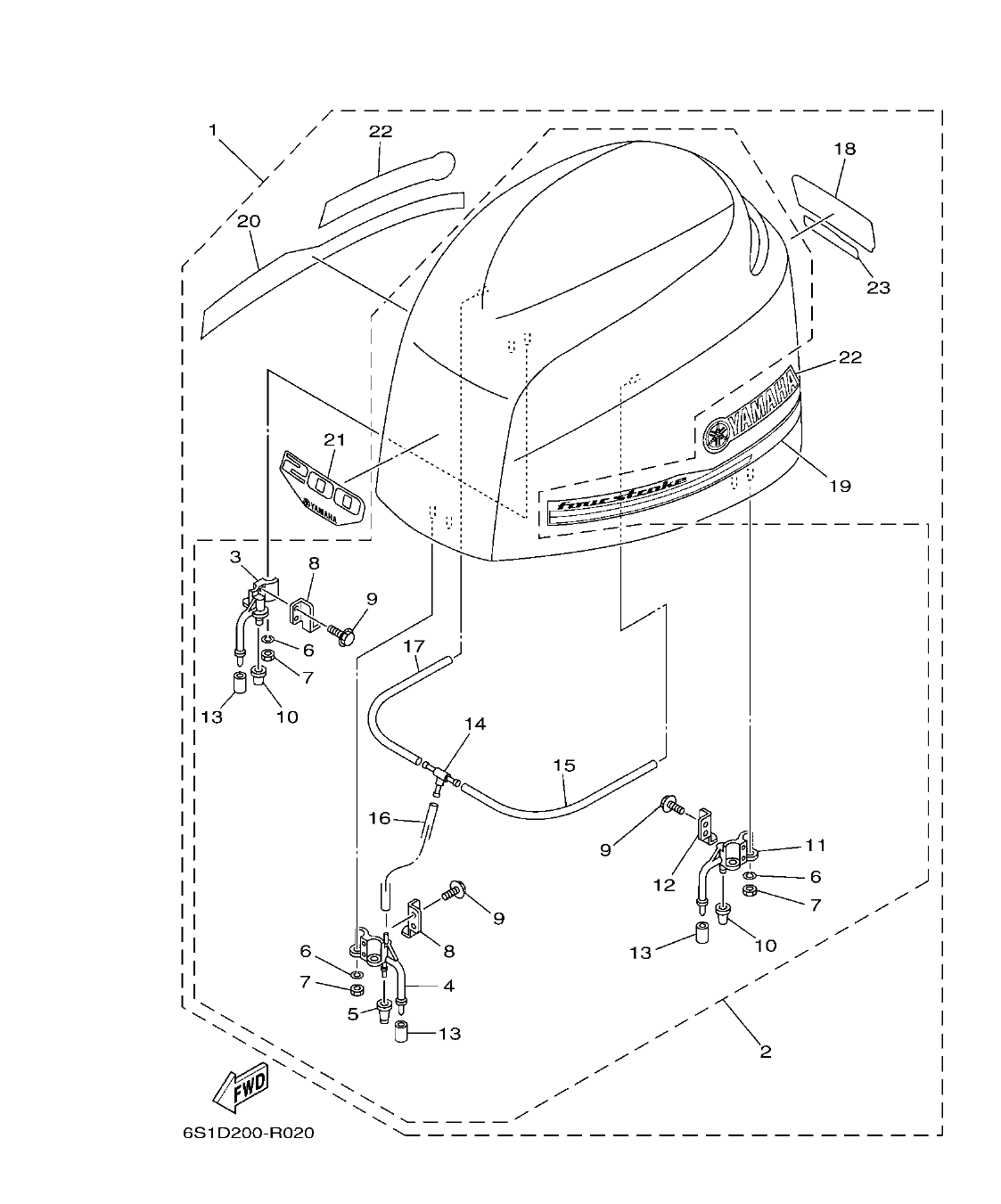

Section 2: TOP COWLING SOPORTE SUPERIOR (v2)
Model code: 6S1F
Parts list
Section 2
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6S1-42610-11
TOP COWLING ASSY
|
1 | |
| 2 |
6P2-4261A-01
.TOP COWLING W/O GRAPHICS
|
1 | |
| 3 |
68F-42647-01
..HOLDER, CLAMP BAND
|
1 | |
| 4 |
69J-42647-01
..HOLDER, CLAMP BAND
|
1 | |
| 5 |
69J-42663-00
..DAMPER 2
|
1 | |
| 6 |
92990-06100
..WASHER, SPRING
|
6 | |
| 7 |
95380-06600
..NUT, HEXAGON
|
6 | |
| 8 |
60V-42651-01
..HOOK
|
2 | |
| 9 |
97E95-06516
..BOLT, HEXAGON W/W DEEP RECESS
|
6 | |
| 10 |
68F-42663-00
..DAMPER 2
|
2 | |
| 11 |
68F-42648-01
..HOLDER, CLAMP BAND
|
1 |
165.36 AED
Check price & stock on WhatsApp
|
| 12 |
60V-42652-00
..HOOK
|
1 | |
| 13 |
67F-13448-00
..CAP
|
3 | |
| 14 |
69J-24378-00
..PIPE, JOINT 3
|
1 | |
| 15 |
90445-11M27
..HOSE (L240)
|
1 | |
| 16 |
90445-11699
..HOSE (L500)
|
1 | |
| 17 |
90445-11182
..HOSE (L300)
|
1 | |
| 18 |
6S1-42678-00
.GRAPHIC, REAR
|
1 | |
| 19 |
6S1-42675-00
.GRAPHIC, SIDE 1
|
1 | |
| 20 |
6S1-42676-00
.GRAPHIC, SIDE 2
|
1 | |
| 21 |
6S1-42677-00
.GRAPHIC, FRONT
|
1 | |
| 22 |
6S1-42681-00
.MARK, COWLING
|
2 | |
| 23 |
6S1-4267A-00
.GRAPHIC, REAR 2
|
1 |
