F200BET'19

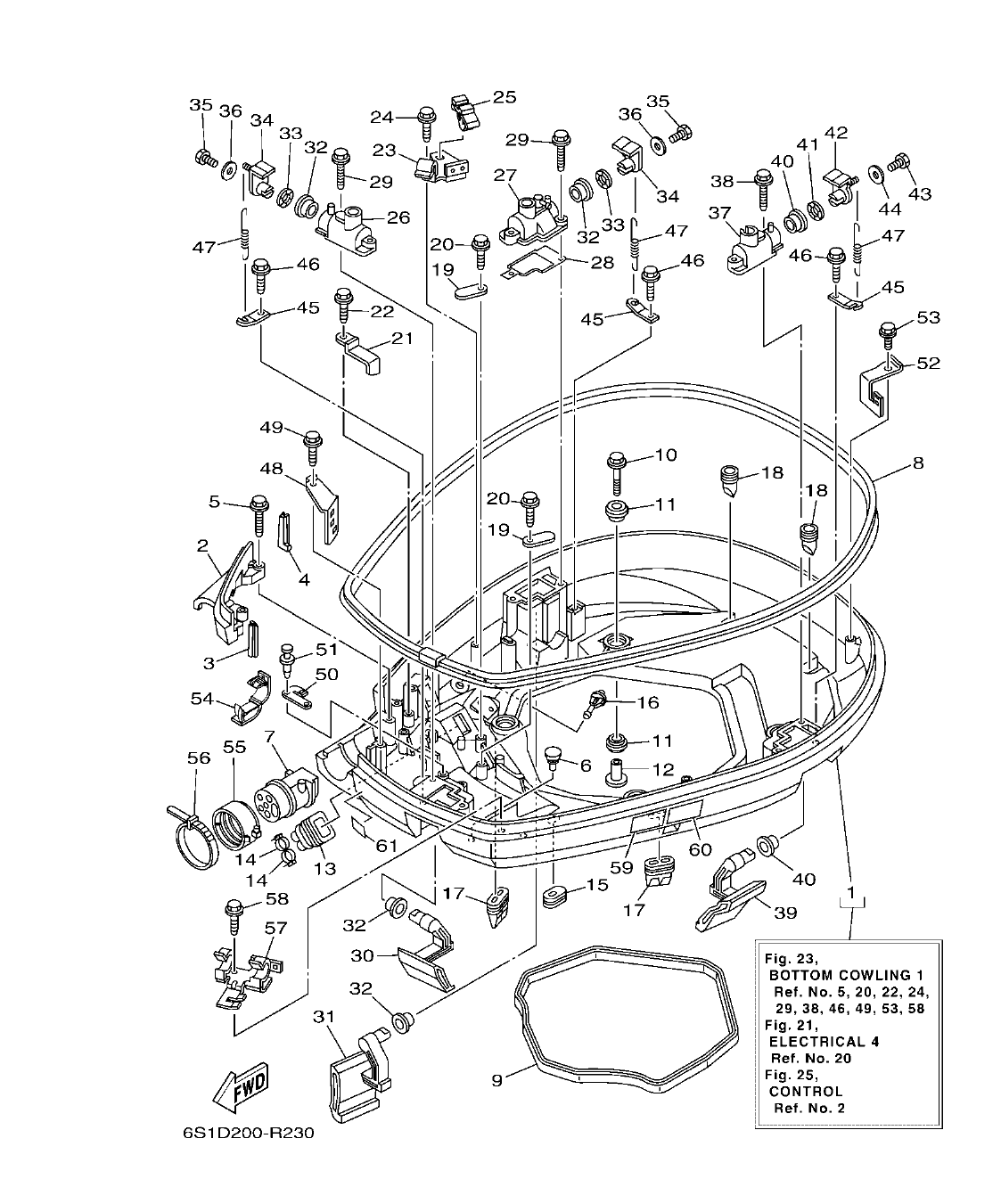

Section 23: BOTTOM COWLING 1 CUBIERTA INFERIOR 1 (v2)
Model code: 6S1F
Parts list
Section 23
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6P2-42710-00-8D
BOTTOM COWLING ASSY
|
1 | |
| 2 |
6P2-42738-00-8D
PLATE, FITTING
|
1 | |
| 3 |
6P2-42717-00
RUBBER, SEAL 2
|
1 | |
| 4 |
6P2-42718-00
RUBBER, SEAL 3
|
1 | |
| 5 |
90109-06M82
BOLT
|
2 | |
| 6 |
6H4-42748-00
GROMMET
|
2 | |
| 7 |
6P2-42725-00
GROMMET
|
1 | |
| 8 |
6P2-42615-00
SEAL
|
1 | |
| 9 |
69J-42716-00
RUBBER SEAL 1
|
1 | |
| 10 |
90119-08M22
BOLT, WITH WASHER
|
4 | |
| 11 |
90480-22M81
GROMMET
|
8 | |
| 12 |
90387-08M37
COLLAR
|
4 | |
| 13 |
6H1-42726-21
GROMMET
|
1 | |
| 14 |
90465-11M10
CLAMP
|
2 | |
| 15 |
61A-42727-00
GROMMET
|
1 | |
| 16 |
6P2-44391-00
NIPPLE, HOSE
|
1 | |
| 17 |
69J-42717-00
RUBBER, SEAL 2
|
2 | |
| 18 |
61A-42717-00
RUBBER, SEAL 2
|
2 | |
| 19 |
6E5-82588-00
PLATE
|
2 | |
| 20 |
90109-06M81
BOLT
|
2 | |
| 23 |
6P2-82554-00
STAY, NEUTRAL SWITCH
|
1 | |
| 24 |
90109-06M86
BOLT
|
1 | |
| 25 |
90464-09M47
CLAMP
|
1 | |
| 26 |
69J-42828-02-9S
PLATE, CLAMP
|
1 | |
| 27 |
6P2-42828-00-9S
PLATE, CLAMP
|
1 | |
| 28 |
6P2-42722-00
GASKET 2
|
1 | |
| 29 |
90109-06M82
BOLT
|
4 | |
| 30 |
69J-42815-00-8D
LEVER, CLAMP 1
|
1 | |
| 31 |
69J-42817-00-8D
LEVER, CLAMP 3
|
1 | |
| 32 |
90386-15M73
BUSH
|
4 | |
| 33 |
90206-15M18
WASHER, WAVE
|
2 | |
| 34 |
63P-42818-01
LEVER, CLAMP 4
|
2 | |
| 35 |
97D95-06020
BOLT, HEXAGON DEEP RECESS
|
2 | |
| 36 |
90201-06068
WASHER, PLATE
|
2 | |
| 37 |
68F-42828-11-9S
PLATE, CLAMP
|
1 | |
| 38 |
90109-06M82
BOLT
|
2 | |
| 39 |
69J-42816-00-8D
LEVER, CLAMP 2
|
1 | |
| 40 |
90386-15M73
BUSH
|
2 | |
| 41 |
90206-15M18
WASHER, WAVE
|
1 | |
| 42 |
68V-42818-01
LEVER, CLAMP 4
|
1 | |
| 43 |
97D95-06020
BOLT, HEXAGON DEEP RECESS
|
1 | |
| 44 |
90201-06068
WASHER, PLATE
|
1 | |
| 45 |
64D-43144-00
HOOK, SPRING
|
3 | |
| 46 |
90109-06M86
BOLT
|
3 | |
| 47 |
90506-18M40
SPRING, TENSION
|
3 | |
| 48 |
6P2-42743-00
BRACKET
|
1 | |
| 49 |
90109-06M82
BOLT
|
1 | |
| 50 |
6P2-42766-20
BRACKET 2
|
1 | |
| 51 |
90269-05005
RIVET
|
2 | |
| 52 |
69J-8366G-02
BRACKET 3
|
1 | |
| 53 |
90109-06M86
BOLT
|
1 | |
| 54 |
90464-18004
CLAMP
|
2 | |
| 55 |
68F-42753-00
FASTNER
AP
|
1 | |
| 56 |
90464-20258
CLAMP
AP
|
1 | |
| 57 |
6P2-82594-00
CLAMP
|
1 | |
| 58 |
90109-06M86
BOLT
|
1 | |
| 59 |
6EE-42794-40
LABEL, WARNING (GENERAL)
|
1 | |
| 60 |
6EE-42794-50
LABEL, WARNING (GENERAL)
FOR CAR
|
1 | |
| 61 |
6AH-81996-00
MARK
FOR CAR
|
1 |
