F200BET'19

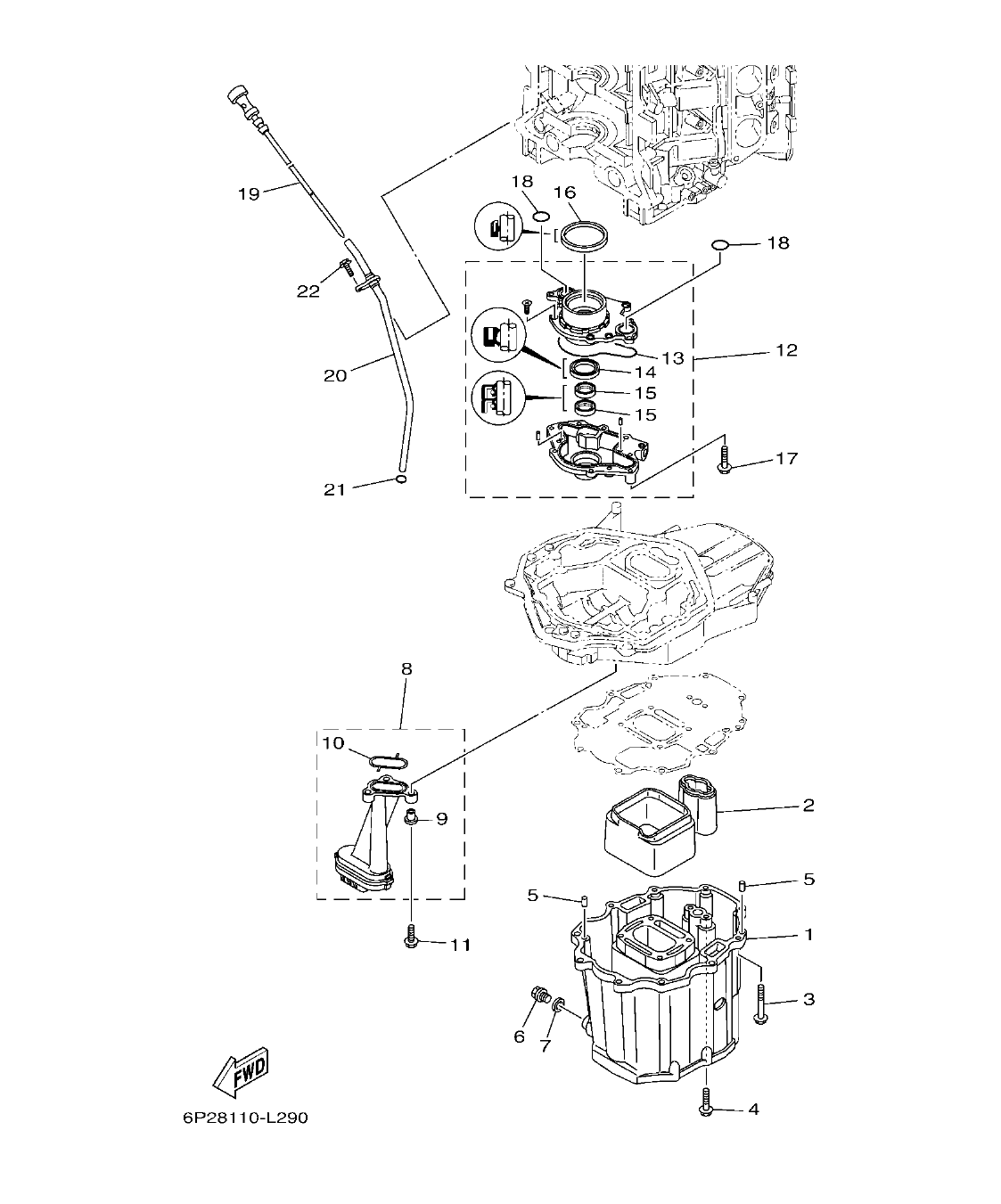

Section 31: OIL PAN OIL PAN (v2)
Model code: 6S1F
Parts list
Section 31
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
69J-15311-10-CA
OIL PAN
|
1 | |
| 2 |
69J-15761-00
SEAL, RUBBER 1
|
1 | |
| 3 |
97E75-08560
BOLT, HEXAGON W/W DEEP RECESS
|
10 | |
| 4 |
97E75-08535
BOLT, HEXAGON W/W DEEP RECESS
|
2 | |
| 5 |
93608-16M16
PIN, DOWEL
|
2 | |
| 6 |
90340-14M06
PLUG, STRAIGHT SCREW
|
1 | |
| 7 |
90430-14M09
GASKET
|
1 | |
| 8 |
69J-13411-00
STRAINER, OIL
|
1 | |
| 9 |
90387-06263
.COLLAR
|
3 | |
| 10 |
69J-13415-00
.SEAL, OIL STRAINER
|
1 | |
| 11 |
95812-06025
BOLT, FLANGE
|
3 | |
| 12 |
6P2-13300-00
OIL PUMP ASSY
|
1 | |
| 13 |
69J-13329-01
.GASKET, PUMP COVER
|
1 | |
| 14 |
6AW-13119-00
.OIL SEAL
|
1 | |
| 15 |
69J-13631-00
.OIL SEAL
|
2 | |
| 16 |
69J-11355-00
SEAL, CYLINDER 1
|
1 | |
| 17 |
97E75-06540
BOLT, HEXAGON W/W DEEP RECESS
|
4 | |
| 18 |
93210-25552
O-RING
|
2 | |
| 19 |
6P2-15362-10
PLUG, OIL LEVEL
|
1 | |
| 20 |
6P2-15377-10
GUIDE, INLET
|
1 | |
| 21 |
93210-19MJ3
O-RING
|
1 | |
| 22 |
95D95-06016
BOLT, FLANGE DEEP RECESS
|
1 |
