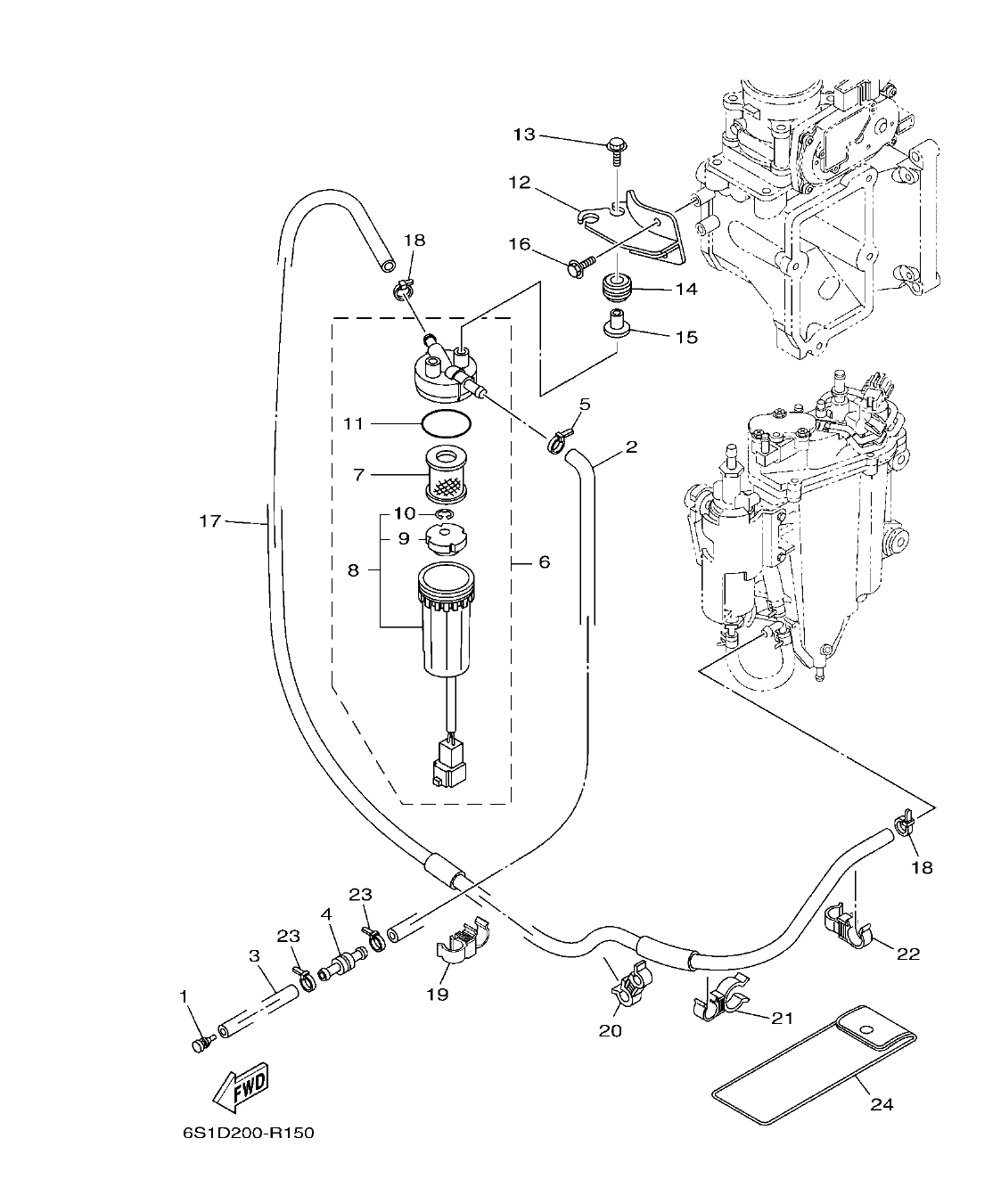

F200BET'19
Section 15: FUEL 1 COMBUSTIBLE 1 (v2)
Model code: 6S1F
Parts list
Section 15
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
689-85547-00
DAMPER
|
1 | |
| 2 |
6P2-24314-00
PIPE 4
|
1 | |
| 3 |
90445-13511
HOSE (L2000)
|
1 | |
| 4 |
6R3-24377-10
PIPE, JOINT 2
|
1 | |
| 5 |
90465-11M10
CLAMP
|
1 | |
| 6 |
6P3-24560-03
FILTER ASSY
|
1 | |
| 7 |
6P3-24563-01
.ELEMENT, FILTER
|
1 | |
| 8 |
6P3-24562-03
.CUP, FILTER
|
1 | |
| 9 |
6P3-24469-00
..FLOAT, WATER LEVEL
|
1 | |
| 10 |
6P3-24519-00
..CLIP
|
1 | |
| 11 |
6P3-24564-00
.GASKET
|
1 | |
| 12 |
6P2-24566-11
BRACKET, FILTER
|
1 | |
| 13 |
90119-06M17
BOLT, WITH WASHER
|
2 | |
| 14 |
90480-14018
GROMMET
|
2 | |
| 15 |
90387-06289
COLLAR
|
2 |
4.47 AED
Check price & stock on WhatsApp
|
| 16 |
97E95-06514
BOLT, HEXAGON W/W DEEP RECESS
|
2 | |
| 17 |
6P2-24313-50
PIPE 3
|
1 | |
| 18 |
90465-11M10
CLAMP
|
2 | |
| 19 |
90464-12009
CLAMP
|
1 | |
| 20 |
90464-12010
CLAMP
|
1 | |
| 21 |
90464-20024
CLAMP
|
1 | |
| 22 |
90464-12009
CLAMP
|
1 | |
| 23 |
90465-11M10
CLAMP
|
2 | |
| 24 |
67F-28100-11
TOOL KIT
UR
|
1 | |
| 24 |
69J-28100-02
TOOL KIT
UR
|
1 |
