F200BET'19

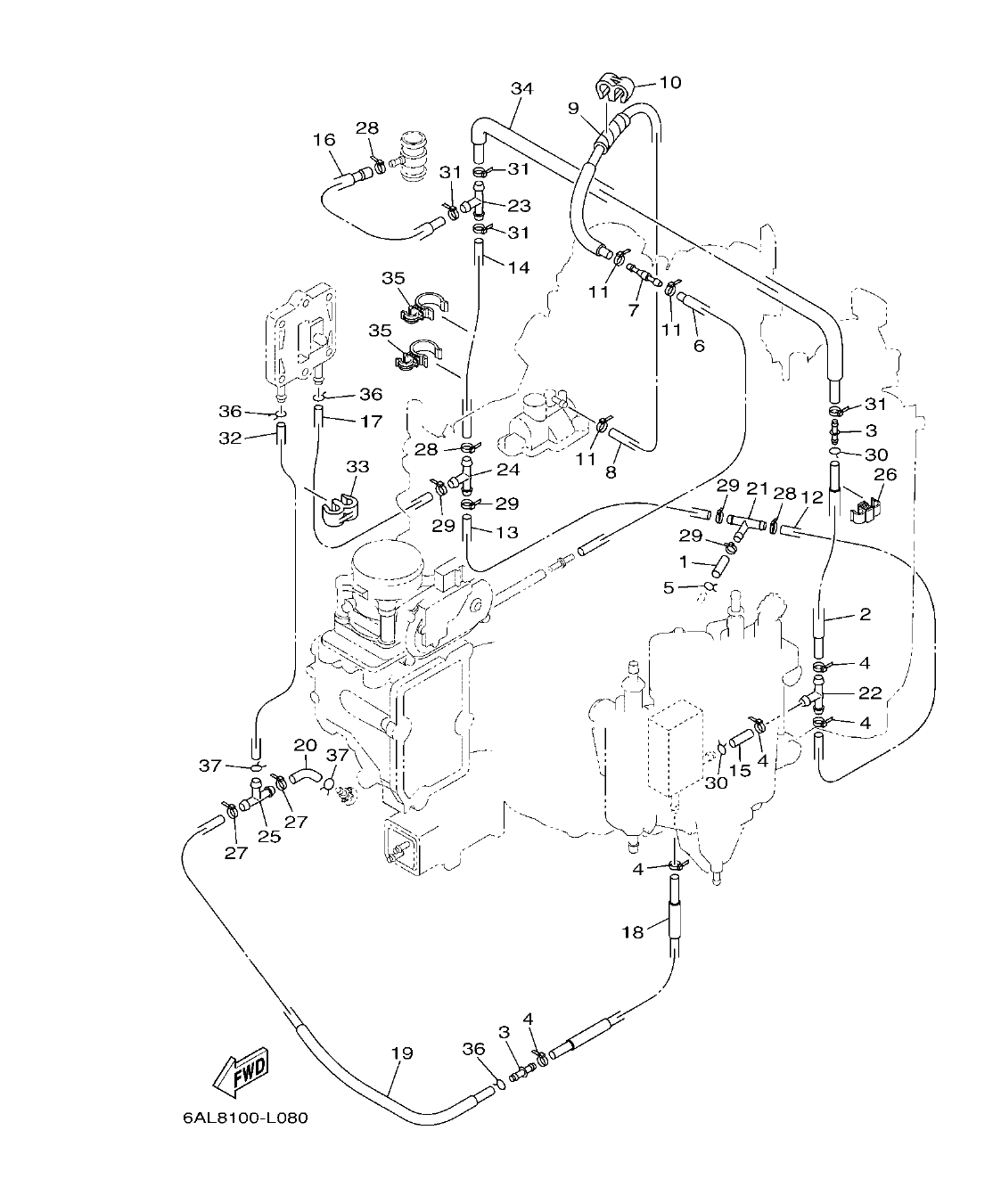

Section 9: INTAKE 2 ADMISION 2 (v2)
Model code: 6S1F
Parts list
Section 9
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
90445-09040
HOSE (L50)
|
1 | |
| 2 |
6P2-12484-01
PIPE 4
|
1 | |
| 3 |
6CE-24376-01
PIPE, JOINT 1
|
2 | |
| 4 |
90465-11M10
CLAMP
|
5 | |
| 5 |
90467-09M03
CLIP
|
1 | |
| 6 |
6P2-12482-00
PIPE 2
|
1 | |
| 7 |
6E5-21744-00
BREATHER
|
1 | |
| 8 |
6P2-12483-00
PIPE 3
|
1 | |
| 9 |
90446-10M01
HOSE (L60)
|
1 | |
| 10 |
90464-60067
CLAMP
|
1 | |
| 11 |
90465-11M10
CLAMP
|
3 | |
| 12 |
90445-09041
HOSE (L500)
|
1 | |
| 13 |
90445-09224
HOSE (L270)
|
1 | |
| 14 |
90445-09097
HOSE (L250)
|
1 | |
| 15 |
90445-09220
HOSE (L30)
|
1 | |
| 16 |
6P2-12485-00
PIPE 5
|
1 | |
| 17 |
6P2-1248A-00
PIPE 8
|
1 | |
| 18 |
6P2-1248E-00
PIPE 9
|
1 | |
| 19 |
6P2-14752-00
PIPE, OUTLET
|
1 | |
| 20 |
61A-24316-00
PIPE 6
|
1 | |
| 21 |
688-24378-00
PIPE, JOINT 3
|
1 | |
| 22 |
688-24378-00
PIPE, JOINT 3
|
1 | |
| 23 |
688-24378-00
PIPE, JOINT 3
|
1 | |
| 24 |
688-24378-00
PIPE, JOINT 3
|
1 | |
| 25 |
688-24378-00
PIPE, JOINT 3
|
1 | |
| 26 |
90464-09013
CLAMP
|
1 | |
| 27 |
90465-11M10
CLAMP
|
2 | |
| 28 |
90465-11M10
CLAMP
|
3 | |
| 29 |
90465-11M10
CLAMP
|
4 | |
| 30 |
90467-08M18
CLIP
|
2 | |
| 31 |
90465-11M10
CLAMP
|
4 | |
| 32 |
90445-09304
HOSE (L310)
|
1 | |
| 33 |
90464-60067
CLAMP
|
1 | |
| 34 |
6P2-12481-12
PIPE 1
|
1 | |
| 35 |
90464-21002
CLAMP
|
2 | |
| 36 |
90467-08M18
CLIP
|
3 | |
| 37 |
90467-09M09
CLIP
|
2 |
