85AED’01
Section 12: BRACKET 1 (v2)
Engine sections in this catalog
TOP COWLING
BOTTOM COWLING
CONTROL
BRACKET 1
BRACKET 2
BRACKET 3
UPPER CASING
LOWER CASING. DRIVE 1
LOWER CASING. DRIVE 2
FUEL TANK
STEERING GUIDE
CYLINDER. CRANKCASE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT. PISTON
INTAKE
CARBURETOR
FUEL
GENERATOR
ELECTRICAL
STARTING MOTOR

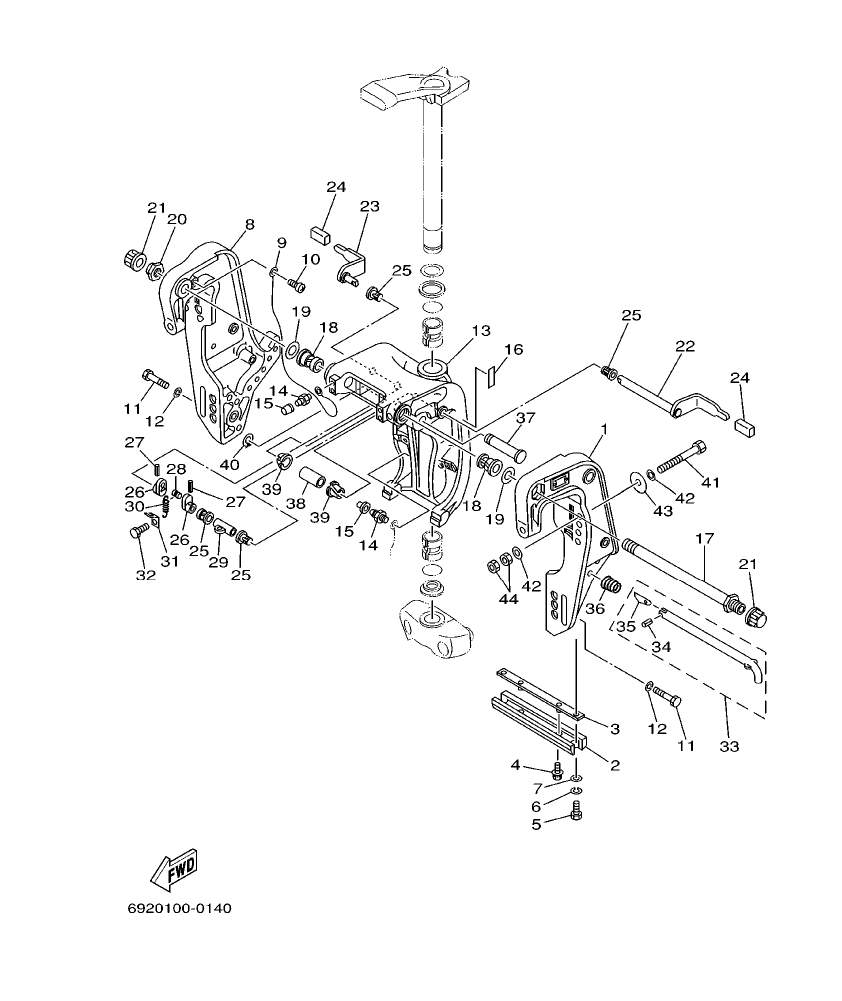

Diagram for section 12: BRACKET 1.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
688–43111–13–4D
BRACKET, CLAMP
|
1 | Ask on WhatsApp |
| 2 |
6H1–45251–03
ANODE
|
1 | Ask on WhatsApp |
| 3 |
6H1–44526–00
PLATE
|
1 | Ask on WhatsApp |
| 4 |
90119–06M29
BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 5 |
97095–06016
BOLT
|
2 | Ask on WhatsApp |
| 6 |
92995–06100
WASHER, SPRING
|
2 | Ask on WhatsApp |
| 7 |
92995–06600
WASHER
|
2 | Ask on WhatsApp |
| 8 |
688–43112–12–4D
BRACKET, CLAMP
|
1 | Ask on WhatsApp |
| 9 |
6E5–82148–00
WIRE, LEAD 4
|
1 | Ask on WhatsApp |
| 10 |
97880–06012
SCREW, PAN HEAD
|
1 | Ask on WhatsApp |
| 11 |
97095–10045
BOLT
|
6 | Ask on WhatsApp |
| 12 |
92995–10100
WASHER
|
6 | Ask on WhatsApp |
| 13 |
6H1–43311–01–4D
BRACKET, SWIVEL 1
|
1 | Ask on WhatsApp |
| 14 |
93700–06M03
NIPPLE, GREASE
|
3 | Ask on WhatsApp |
| 15 |
663–45119–00
CAP, GREASE NIPPLE
|
3 | Ask on WhatsApp |
| 16 |
688–43691–01
INDICATOR, TILT
|
1 | Ask on WhatsApp |
| 17 |
688–43131–03
BOLT, CLAMP BRACKET
|
1 | Ask on WhatsApp |
| 18 |
90386–22M15
BUSH
|
2 | Ask on WhatsApp |
| 19 |
90201–22M67
WASHER, PLATE
|
2 | Ask on WhatsApp |
| 20 |
90185–22043
NUT, SELF–LOCKING
|
1 | Ask on WhatsApp |
| 21 |
6G5–43145–00
CAP, CLAMP BRACKET
|
2 | Ask on WhatsApp |
| 22 |
688–43181–10
LEVER, TILT STOP
|
1 | Ask on WhatsApp |
| 23 |
688–43185–10
LEVER, TILT STOP
|
1 | Ask on WhatsApp |
| 24 |
663–43318–00
COVER
|
2 | Ask on WhatsApp |
| 25 |
90386–10M16
BUSH
|
4 | Ask on WhatsApp |
| 26 |
6G5–43148–00
COLLAR, DISTANCE
|
2 | Ask on WhatsApp |
| 27 |
91690–30020
PIN, SPRING
|
2 | Ask on WhatsApp |
| 28 |
90249–06M19
|
1 | Ask on WhatsApp |
| 29 |
90387–10M02
|
1 | Ask on WhatsApp |
| 30 |
90506–14M24
|
1 | Ask on WhatsApp |
| 31 |
6G5–43144–00
|
1 | Ask on WhatsApp |
| 32 |
97095–06010
|
1 | Ask on WhatsApp |
| 33 |
688–43160–01
|
1 | Ask on WhatsApp |
| 34 |
91690–30012
|
1 | Ask on WhatsApp |
| 35 |
688–43165–00
|
1 | Ask on WhatsApp |
| 36 |
90502–16M02
|
1 | Ask on WhatsApp |
| 37 |
6E5–43126–02
|
1 | Ask on WhatsApp |
| 38 |
90386–18M21
|
1 | Ask on WhatsApp |
| 39 |
90386–18M35
|
2 | Ask on WhatsApp |
| 40 |
93410–18M02
|
1 | Ask on WhatsApp |
| 41 |
90101–12M65
|
4 | Ask on WhatsApp |
| 42 |
92995–12200
|
8 | Ask on WhatsApp |
| 43 |
90201–12426
|
4 | Ask on WhatsApp |
| 44 |
95380–12600
|
8 | Ask on WhatsApp |
