Section 1: TOP COWLING (v2)
Engine sections in this catalog
TOP COWLING
BOTTOM COWLING
CONTROL
BRACKET 1
BRACKET 2
BRACKET 3
UPPER CASING
LOWER CASING. DRIVE 1
LOWER CASING. DRIVE 2
FUEL TANK
STEERING GUIDE
CYLINDER. CRANKCASE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT. PISTON
INTAKE
CARBURETOR
FUEL
GENERATOR
ELECTRICAL
STARTING MOTOR

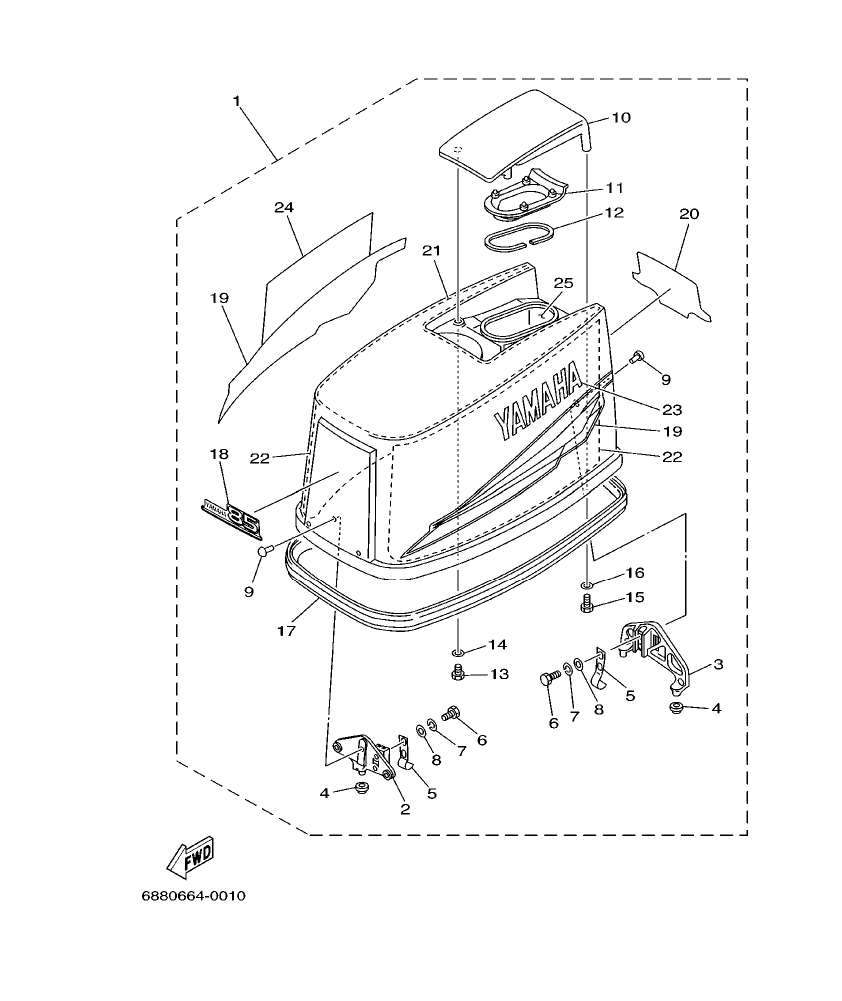

Diagram for section 1: TOP COWLING.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
688–42610–32–4D
TOP COWLING ASSY
|
1 | Ask on WhatsApp |
| 2 |
688–42647–00–94
.HOLDER, CLAMP BAND
|
1 | Ask on WhatsApp |
| 3 |
688–42649–00–94
.HOLDER, CLAMP BAND
|
1 | Ask on WhatsApp |
| 4 |
663–42662–00
.DAMPER
|
3 | Ask on WhatsApp |
| 5 |
688–42652–10
.HOOK
|
2 | Ask on WhatsApp |
| 6 |
97095–06018
.BOLT
|
2 | Ask on WhatsApp |
| 7 |
92995–06100
.WASHER, SPRING
|
2 | Ask on WhatsApp |
| 8 |
92995–06600
.WASHER
|
2 | Ask on WhatsApp |
| 9 |
90266–06009
.RIVET
|
6 | Ask on WhatsApp |
| 10 |
688–42613–01–4D
.MOLDING, AIR DUCT
|
1 | Ask on WhatsApp |
| 11 |
688–42618–00
.AIR SHROUD, TOP COWLING
|
1 | Ask on WhatsApp |
| 12 |
688–42628–00
.SEAL
|
1 | Ask on WhatsApp |
| 13 |
97095–06016
.BOLT
|
2 | Ask on WhatsApp |
| 14 |
92995–06600
.WASHER
|
2 | Ask on WhatsApp |
| 15 |
97095–06025
.BOLT
|
2 | Ask on WhatsApp |
| 16 |
92995–06600
.WASHER
|
2 | Ask on WhatsApp |
| 17 |
688–42615–00
.SEAL
|
1 | Ask on WhatsApp |
| 18 |
688–42677–31
.GRAPHIC, FRONT
|
1 | Ask on WhatsApp |
| 19 |
688–W0070–31
.GRAPHIC SET
|
1 | Ask on WhatsApp |
| 20 |
688–42678–31
.GRAPHIC, REAR
|
1 | Ask on WhatsApp |
| 21 |
688–42617–00
.DAMPER, FORM
|
1 | Ask on WhatsApp |
| 22 |
688–42619–00
.DAMPER, FORM
|
2 | Ask on WhatsApp |
| 23 |
688–42681–31
.MARK, COWLING
|
1 | Ask on WhatsApp |
| 24 |
688–42682–31
.MARK, COWLING
|
1 | Ask on WhatsApp |
| 25 |
688–42637–00
.DAMPER, FORM
|
1 | Ask on WhatsApp |
