85AED’01
Section 15: UPPER CASING (v2)
Engine sections in this catalog
TOP COWLING
BOTTOM COWLING
CONTROL
BRACKET 1
BRACKET 2
BRACKET 3
UPPER CASING
LOWER CASING. DRIVE 1
LOWER CASING. DRIVE 2
FUEL TANK
STEERING GUIDE
CYLINDER. CRANKCASE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT. PISTON
INTAKE
CARBURETOR
FUEL
GENERATOR
ELECTRICAL
STARTING MOTOR

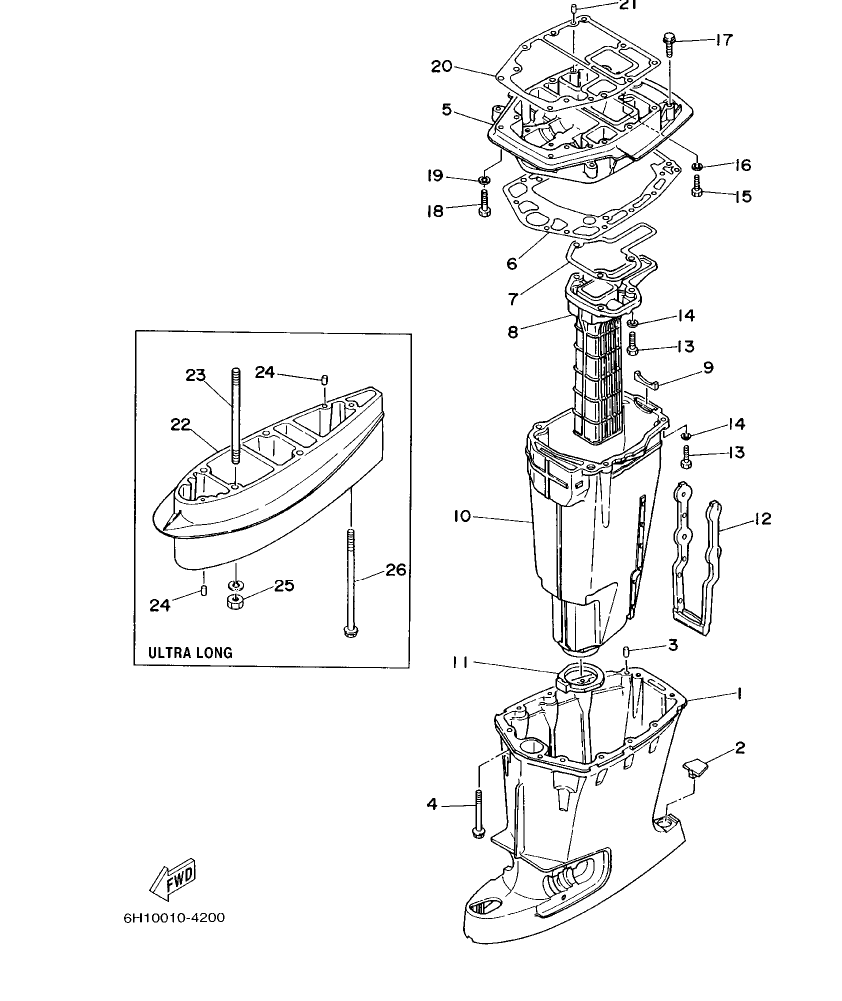

Diagram for section 15: UPPER CASING.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
688–45111–04–4D
CASING, UPPER
|
1 | Ask on WhatsApp |
| 2 |
663–45155–10
CAP
|
1 | Ask on WhatsApp |
| 3 |
93606–12019
PIN, DOWEL
|
2 | Ask on WhatsApp |
| 4 |
90119–08M80
BOLT, WITH WASHER
|
8 | Ask on WhatsApp |
| 5 |
688–41137–03–94
GUIDE, EXHAUST
|
1 | Ask on WhatsApp |
| 6 |
688–45114–A1
GASKET, UPPER CASING
|
1 | Ask on WhatsApp |
| 7 |
688–41134–A0
GASKET, EXHAUST MANIFOLD
|
1 | Ask on WhatsApp |
| 8 |
688–41131–00–5B
MANIFOLD, EXT. 1
|
1 | Ask on WhatsApp |
| 9 |
688–41133–00
GASKET, EXHAUST MANIFOLD 1
|
1 | Ask on WhatsApp |
| 10 |
688–14711–01–5B
MUFFLER 1
|
1 | Ask on WhatsApp |
| 11 |
688–45123–00
GASKET, MUFFLER
|
1 | Ask on WhatsApp |
| 12 |
663–14737–10
DAMPER, MUFFLER
|
1 | Ask on WhatsApp |
| 13 |
97075–08030
BOLT
|
7 | Ask on WhatsApp |
| 14 |
92995–08100
WASHER
|
7 | Ask on WhatsApp |
| 15 |
97075–08025
BOLT
|
1 | Ask on WhatsApp |
| 16 |
92995–08100
WASHER
|
1 | Ask on WhatsApp |
| 17 |
90119–08M79
BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 18 |
97075–08035
BOLT
|
2 | Ask on WhatsApp |
| 19 |
92995–08100
WASHER
|
2 | Ask on WhatsApp |
| 20 |
688–45113–A0
GASKET, UPPER CASING
|
1 | Ask on WhatsApp |
| 21 |
93606–12019
PIN, DOWEL
|
2 | Ask on WhatsApp |
| 22 |
688–45211–01–4D
EXTENSION
|
1 | Ask on WhatsApp |
| 23 |
90116–10M05
BOLT, STUD
|
4 | Ask on WhatsApp |
| 24 |
93606–12019
PIN, DOWEL
|
4 | Ask on WhatsApp |
| 25 |
95380–10600
NUT
|
4 | Ask on WhatsApp |
| 26 |
90119–08M86
BOLT, WITH WASHER
|
1 | Ask on WhatsApp |
