85AED’01
Section 17: LOWER CASING. DRIVE 2 (v2)
Engine sections in this catalog
TOP COWLING
BOTTOM COWLING
CONTROL
BRACKET 1
BRACKET 2
BRACKET 3
UPPER CASING
LOWER CASING. DRIVE 1
LOWER CASING. DRIVE 2
FUEL TANK
STEERING GUIDE
CYLINDER. CRANKCASE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT. PISTON
INTAKE
CARBURETOR
FUEL
GENERATOR
ELECTRICAL
STARTING MOTOR

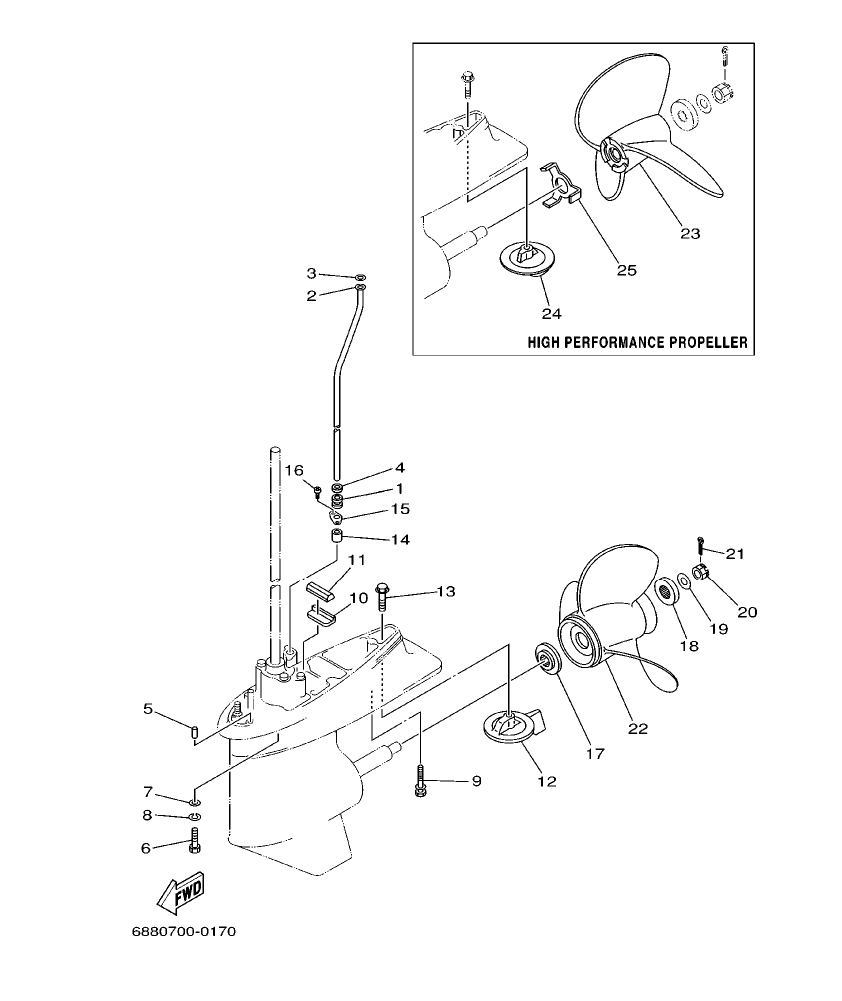

Diagram for section 17: LOWER CASING. DRIVE 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
663–44367–00
DAMPER, WATER SEAL
|
1 | Ask on WhatsApp |
| 2 |
688–44361–10
TUBE, WATER
|
1 | Ask on WhatsApp |
| 3 |
90202–12060
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 4 |
90430–12072
GASKET
|
1 | Ask on WhatsApp |
| 5 |
93606–12019
PIN, DOWEL
|
2 | Ask on WhatsApp |
| 6 |
6E5–45943–00–EL
PROPELLER (3X12–5/8”X21”–K)
|
1 | Ask on WhatsApp |
| 6 |
6E5–45945–01–EL
PROPELLER (3X13–1/4”X17”–K)
|
1 | Ask on WhatsApp |
| 6 |
6E5–45947–00–EL
PROPELLER (3X13–1/2”X15”–K)
|
1 | Ask on WhatsApp |
| 6 |
6E5–45949–00–EL
PROPELLER (3X13–5/8”X13”–K)
|
1 | Ask on WhatsApp |
| 6 |
6E5–45954–00–EL
PROPELLER (3X14”X11”–K)
|
1 | Ask on WhatsApp |
| 6 |
6E5–45972–10
PROPELLER (3X14”X24”–P)
|
1 | Ask on WhatsApp |
| 6 |
6E5–45974–10
PROPELLER (3X14”X28”–P)
|
1 | Ask on WhatsApp |
| 6 |
6E5–45976–10
PROPELLER (3X14”X22”–P)
|
1 | Ask on WhatsApp |
| 6 |
6E5–45978–10
PROPELLER (3X14”X26”–P)
|
1 | Ask on WhatsApp |
| 6 |
97075–10040
BOLT
|
4 | Ask on WhatsApp |
| 7 |
92990–10600
WASHER, PLATE
|
4 | Ask on WhatsApp |
| 8 |
92990–10100
WASHER, SPRING
|
4 | Ask on WhatsApp |
| 9 |
90119–08M84
BOLT, WITH WASHER
|
1 | Ask on WhatsApp |
| 10 |
663–45376–00–94
GUIDE, SEAL DAMPER
|
1 | Ask on WhatsApp |
| 11 |
688–45375–00
DAMPER, SEAL
|
1 | Ask on WhatsApp |
| 12 |
688–45371–02
TAB–TRIM
|
1 | Ask on WhatsApp |
| 13 |
90105–10M67
BOLT, WASHER BASED
|
1 | Ask on WhatsApp |
| 14 |
663–44366–00
DAMPER, WATER SEAL
|
1 | Ask on WhatsApp |
| 15 |
90480–19M06
GROMMET
|
1 | Ask on WhatsApp |
| 16 |
97780–40512
SCREW, TAPPING
|
2 | Ask on WhatsApp |
| 17 |
688–45987–01
SPACER
|
1 | Ask on WhatsApp |
| 18 |
688–45997–01
SPACER
|
1 | Ask on WhatsApp |
| 19 |
90201–17M00
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 20 |
90171–16011
NUT, CASTLE
|
1 | Ask on WhatsApp |
| 21 |
91490–40025
PIN, COTTER
|
1 | Ask on WhatsApp |
| 22 |
6E5–45941–00–EL
PROPELLER (3X13”X19”–K)
|
1 | Ask on WhatsApp |
| 22 |
6E5–45952–00–EL
PROPELLER (3X13”X23”–K)
|
1 | Ask on WhatsApp |
| 23 |
6E5–45970–10
PROPELLER (3X14”X20”–P)
|
1 | Ask on WhatsApp |
| 24 |
6E5–45371–10
TAB–TRIM
|
1 | Ask on WhatsApp |
| 25 |
6E5–45994–10
PLATE, TOOTH
|
1 | Ask on WhatsApp |
| 688 |
688–44361–20
TUBE, WATER
|
1 | Ask on WhatsApp |
| 688 |
688–45930–02–98
PROPELLER (3X13”X17”–K)
|
1 | Ask on WhatsApp |
| 688 |
688–45932–60–98
PROPELLER (3X13–1/2”X14”–K)
|
1 | Ask on WhatsApp |
| 688 |
688–45970–03–98
PROPELLER (3X13”X19”–K)
|
1 | Ask on WhatsApp |
| 688 |
688–45972–02–98
PROPELLER (3X13”X21”–K)
|
1 | Ask on WhatsApp |
| 688 |
688–45974–02–98
PROPELLER (3X13”X23”–K)
|
1 | Ask on WhatsApp |
| 688 |
688–45976–01–98
PROPELLER (3X13”X25”–K)
|
1 | Ask on WhatsApp |
| 688 |
688–45978–60–98
PROPELLER (3X13–1/2”X16”–K)
|
1 | Ask on WhatsApp |
