Section 4: INTAKE (v2)

Engine sections in this catalog
TOP COWLING BOTTOM COWLING CONTROL BRACKET 1 BRACKET 2 BRACKET 3 UPPER CASING LOWER CASING. DRIVE 1 LOWER CASING. DRIVE 2 FUEL TANK STEERING GUIDE CYLINDER. CRANKCASE REMOTE CONTROL BOX REMOTE CONTROL ASSY REPAIR KIT 1 REPAIR KIT 2 CRANKSHAFT. PISTON INTAKE CARBURETOR FUEL GENERATOR ELECTRICAL STARTING MOTOR

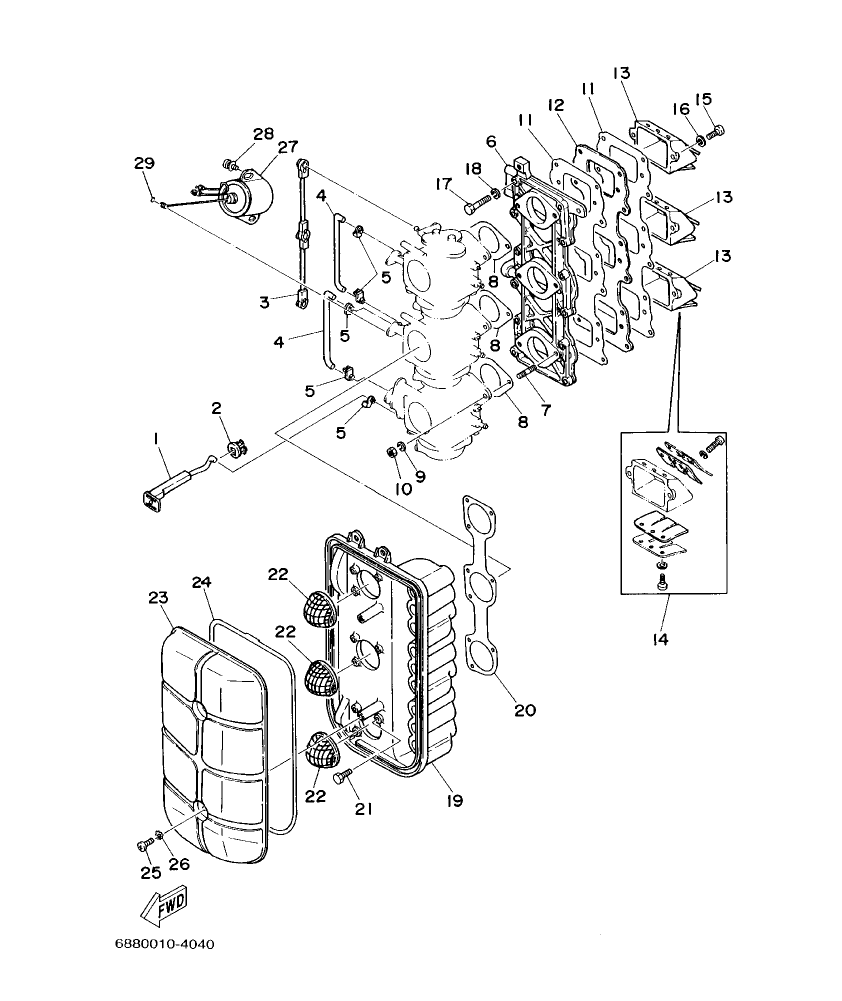

85AED’01 – section 4 INTAKE parts diagram

Diagram for section 4: INTAKE.

Ref Part No. Qty Buy
1
692–41256–00
ROD, CHOKE 1
 1 Ask on WhatsApp
2
689–41273–00
GROMMET
 1 Ask on WhatsApp
3
688–41217–01
ROD, ACCEL. LEVER
 1 Ask on WhatsApp
4
688–41257–01
ROD, CHOKE 2
 2 Ask on WhatsApp
5
661–41262–02
JOINT, CHOKE LEVER
 5 Ask on WhatsApp
6
688–13641–00–94
MANIFOLD 1
 1 Ask on WhatsApp
7
90116–06122
BOLT, STUD
 6 Ask on WhatsApp
8
688–14198–A2
GASKET
 3 Ask on WhatsApp
9
92995–06100
WASHER, SPRING
 6 Ask on WhatsApp
10
95380–06600
NUT, HEXAGON
 6 Ask on WhatsApp
11
688–13621–A1
GASKET, VALVE SEAT
 2 Ask on WhatsApp
12
688–13624–00
PLATE,REED VALVE
 1 Ask on WhatsApp
13
688–13610–00
REED VALVE ASSY
 3 Ask on WhatsApp
14
688–W0004–00
.REED SET
 1 Ask on WhatsApp
15
97880–05020
SCREW, PAN HEAD
 6 Ask on WhatsApp
16
92990–05100
WASHER, SPRING
 6 Ask on WhatsApp
17
97013–06030
BOLT
 12 Ask on WhatsApp
18
92903–06100
WASHER, SPRING
 12 Ask on WhatsApp
19
688–14417–01–94
COVER 1
 1 Ask on WhatsApp
20
688–14483–A0
GASKET
 1 Ask on WhatsApp
21
97013–06018
BOLT
 6 Ask on WhatsApp
22
688–14481–00
CAP, CARBURETOR
 3 Ask on WhatsApp
23
688–14418–01
COVER 2
 1 Ask on WhatsApp
24
688–14416–01
GASKET, AIR CLEANER
 1 Ask on WhatsApp
25
97885–06016
SCREW, PAN HEAD
 2 Ask on WhatsApp
26
90209–06M05
WASHER
 2 Ask on WhatsApp
27
688–86110–01
SOLENOID
 1 Ask on WhatsApp
28
90159–06M19
SCREW, WITH WASHER
 2 Ask on WhatsApp
29
93210–03261
O–RING
 1 Ask on WhatsApp
