85AED’01
Section 23: REPAIR KIT 2 (v2)
Engine sections in this catalog
TOP COWLING
BOTTOM COWLING
CONTROL
BRACKET 1
BRACKET 2
BRACKET 3
UPPER CASING
LOWER CASING. DRIVE 1
LOWER CASING. DRIVE 2
FUEL TANK
STEERING GUIDE
CYLINDER. CRANKCASE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT. PISTON
INTAKE
CARBURETOR
FUEL
GENERATOR
ELECTRICAL
STARTING MOTOR

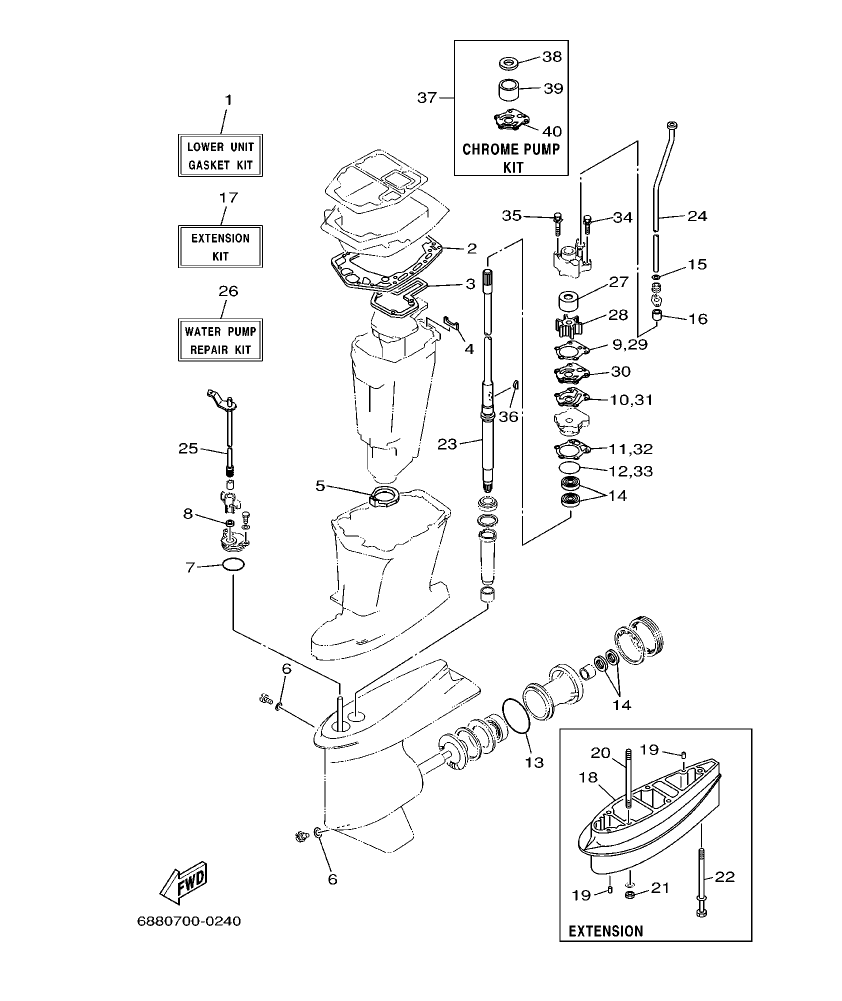

Diagram for section 23: REPAIR KIT 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
688–W0001–22
LOWER UNIT GASKET KIT
|
1 | Ask on WhatsApp |
| 2 |
688–45114–A1
.GASKET, UPPER CASING
|
1 | Ask on WhatsApp |
| 3 |
688–41134–A0
.GASKET, EXHAUST MANIFOLD
|
1 | Ask on WhatsApp |
| 4 |
688–41133–00
.GASKET, EXHAUST MANIFOLD 1
|
1 | Ask on WhatsApp |
| 5 |
688–45123–00
.GASKET, MUFFLER
|
1 | Ask on WhatsApp |
| 6 |
90430–08020
.GASKET
|
2 | Ask on WhatsApp |
| 7 |
93210–49046
.O–RING
|
1 | Ask on WhatsApp |
| 8 |
93106–09014
.OIL SEAL
|
1 | Ask on WhatsApp |
| 9 |
688–44315–A0
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 10 |
688–44324–A0
.GASKET, CARTRIDGE
|
1 | Ask on WhatsApp |
| 11 |
688–44316–A0
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 12 |
93210–46044
.O–RING
|
1 | Ask on WhatsApp |
| 13 |
93210–85M97
.O–RING
|
1 | Ask on WhatsApp |
| 14 |
93101–25M03
.OIL SEAL
|
4 | Ask on WhatsApp |
| 15 |
90430–12072
.GASKET
|
1 | Ask on WhatsApp |
| 16 |
663–44366–00
.DAMPER, WATER SEAL
|
1 | Ask on WhatsApp |
| 17 |
688–W0072–00–4D
EXTENSION KIT
|
1 | Ask on WhatsApp |
| 18 |
688–45211–00–4D
.EXTENSION
|
1 | Ask on WhatsApp |
| 19 |
93606–12019
.PIN, DOWEL
|
4 | Ask on WhatsApp |
| 20 |
90116–10M05
.BOLT, STUD
|
4 | Ask on WhatsApp |
| 21 |
95380–10600
.NUT
|
4 | Ask on WhatsApp |
| 22 |
90119–08M86
.BOLT, WITH WASHER
|
1 | Ask on WhatsApp |
| 23 |
688–45501–22
.DRIVE SHAFT COMP.
|
1 | Ask on WhatsApp |
| 24 |
688–44361–20
.TUBE, WATER
|
1 | Ask on WhatsApp |
| 25 |
688–44120–22
.HANDLE GEAR SHIFT ASSY
|
1 | Ask on WhatsApp |
| 26 |
692–W0078–02
WATER PUMP REPAIR KIT
|
1 | Ask on WhatsApp |
| 27 |
688–44322–00
.INSERT, CARTRIDGE
|
1 | Ask on WhatsApp |
| 28 |
688–44352–03
.IMPELLER
|
1 | Ask on WhatsApp |
| 29 |
688–44315–A0
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 30 |
688–44323–00
.OUTER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 31 |
688–44324–A0
.GASKET, CARTRIDGE
|
1 | Ask on WhatsApp |
| 32 |
688–44316–A0
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 33 |
93210–46044
.O–RING
|
1 | Ask on WhatsApp |
| 34 |
90119–08M13
.BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 35 |
90119–08M16
.BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 36 |
90280–04M04
.KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 37 |
688–W0078–1A
CHROME PUMP KIT
|
1 | Ask on WhatsApp |
| 38 |
688–44321–41
.INNER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 39 |
688–44322–41
.INSERT, CARTRIDGE
|
1 | Ask on WhatsApp |
| 40 |
688–44323–40
.OUTER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
