85AED’01
Section 21: REMOTE CONTROL ASSY (v2)
Engine sections in this catalog
TOP COWLING
BOTTOM COWLING
CONTROL
BRACKET 1
BRACKET 2
BRACKET 3
UPPER CASING
LOWER CASING. DRIVE 1
LOWER CASING. DRIVE 2
FUEL TANK
STEERING GUIDE
CYLINDER. CRANKCASE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT. PISTON
INTAKE
CARBURETOR
FUEL
GENERATOR
ELECTRICAL
STARTING MOTOR

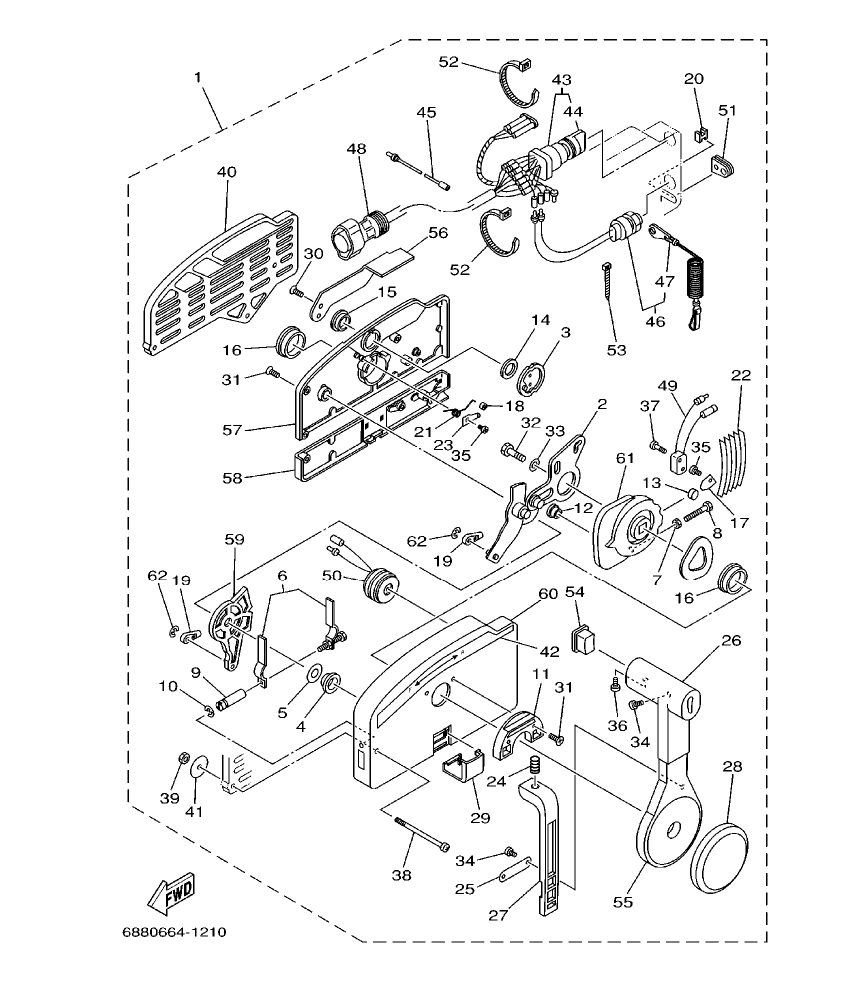

Diagram for section 21: REMOTE CONTROL ASSY.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
703–48203–14
REMOTE CONTROL ASSY (7P)
|
1 | Ask on WhatsApp |
| 2 |
703–48261–01
.ARM, THROTTLE
|
1 | Ask on WhatsApp |
| 3 |
703–48153–00
.SHAFT, FREE ACCEL.
|
1 | Ask on WhatsApp |
| 4 |
703–48235–00
.BUSHING
|
1 | Ask on WhatsApp |
| 5 |
703–48268–00
.SPACER
|
1 | Ask on WhatsApp |
| 6 |
703–48264–00
.THROTTLE, FRICTION
|
1 | Ask on WhatsApp |
| 7 |
95380–05600
.NUT
|
1 | Ask on WhatsApp |
| 8 |
97380–05025
.BOLT
|
1 | Ask on WhatsApp |
| 9 |
703–48265–00
.SHAFT, FRICTION
|
1 | Ask on WhatsApp |
| 10 |
93430–06024
.CIRCLIP
|
3 | Ask on WhatsApp |
| 11 |
703–48245–00
.PLATE, LOCK
|
1 | Ask on WhatsApp |
| 12 |
703–48252–00
.ROLLER, CAM
|
1 | Ask on WhatsApp |
| 13 |
701–48248–00
.ROLLER, FREE ACCEL.
|
1 | Ask on WhatsApp |
| 14 |
703–48198–00
.WASHER, WAVE
|
1 | Ask on WhatsApp |
| 15 |
703–48243–00
.BUSHING
|
1 | Ask on WhatsApp |
| 16 |
703–48236–00
.BUSHING 1
|
2 | Ask on WhatsApp |
| 17 |
703–48189–00
.RETAINER
|
1 | Ask on WhatsApp |
| 18 |
703–48234–00
.ROLLER, DETENT
|
1 | Ask on WhatsApp |
| 19 |
703–48345–01
.CABLE END,REMOTE CONTROL 2
|
2 | Ask on WhatsApp |
| 20 |
703–48358–00
.ANCHOR, CABLE
|
1 | Ask on WhatsApp |
| 21 |
703–48244–00
.SPRING, FREE ACCEL.
|
1 | Ask on WhatsApp |
| 22 |
703–48238–00
.SPRING, DETENT
|
5 | Ask on WhatsApp |
| 23 |
703–48246–00
.SPACER
|
1 | Ask on WhatsApp |
| 24 |
703–48227–00
.SPRING, NEUTRAL LOCK
|
1 | Ask on WhatsApp |
| 25 |
703–48226–00
.PLATE, STOPPER
|
1 | Ask on WhatsApp |
| 26 |
703–48222–00
.GRIP, CONTROL LEVER
|
1 | Ask on WhatsApp |
| 27 |
703–48223–00
.LOCK, NEUTRAL
|
1 | Ask on WhatsApp |
| 28 |
703–48225–00
|
1 | Ask on WhatsApp |
| 29 |
703–48219–00
|
1 | Ask on WhatsApp |
| 30 |
703–48281–00
|
2 | Ask on WhatsApp |
| 31 |
703–48282–00
|
7 | Ask on WhatsApp |
| 32 |
97095–08030
|
1 | Ask on WhatsApp |
| 33 |
92990–08600
|
1 | Ask on WhatsApp |
| 34 |
98580–04010
|
3 | Ask on WhatsApp |
| 35 |
98580–04006
|
2 | Ask on WhatsApp |
| 36 |
98580–05010
|
1 | Ask on WhatsApp |
| 37 |
98580–03015
|
2 | Ask on WhatsApp |
| 38 |
703–48291–10
|
3 | Ask on WhatsApp |
| 39 |
95380–06600
|
3 | Ask on WhatsApp |
| 40 |
703–48293–10
|
1 | Ask on WhatsApp |
| 41 |
701–48287–00
|
3 | Ask on WhatsApp |
| 42 |
703–48215–00
|
1 | Ask on WhatsApp |
| 43 |
703–82510–31
|
1 | Ask on WhatsApp |
| 44 |
676–82577–00
|
1 | Ask on WhatsApp |
| 45 |
703–82531–00
|
1 | Ask on WhatsApp |
| 46 |
688–82575–01
|
1 | Ask on WhatsApp |
| 47 |
682–82556–00
|
1 | Ask on WhatsApp |
| 48 |
688–82586–21
|
1 | Ask on WhatsApp |
| 49 |
703–82540–00
|
1 | Ask on WhatsApp |
| 50 |
703–83383–02
|
1 | Ask on WhatsApp |
| 51 |
703–48284–00
|
1 | Ask on WhatsApp |
| 52 |
703–82591–00
|
3 | Ask on WhatsApp |
| 53 |
703–82592–00
|
1 | Ask on WhatsApp |
| 54 |
703–48224–00
|
1 | Ask on WhatsApp |
| 55 |
703–48221–00
.LEVER, CONTROL
|
1 | Ask on WhatsApp |
| 56 |
703–48152–00
.KNOB, FREE ACCEL.
|
1 | Ask on WhatsApp |
| 57 |
703–48212–00
.BACK PLATE 1
|
1 | Ask on WhatsApp |
| 58 |
703–48213–00
.BACK PLATE 2
|
1 | Ask on WhatsApp |
| 59 |
703–48271–00
.ARM, SHIFT
|
1 | Ask on WhatsApp |
| 60 |
703–48211–01
.HOUSING,1
|
1 | Ask on WhatsApp |
| 61 |
703–48232–00
.GEAR
|
1 | Ask on WhatsApp |
| 62 |
93430–06024
.CIRCLIP
|
2 | Ask on WhatsApp |
