85AED’01
Section 11: CONTROL (v2)
Engine sections in this catalog
TOP COWLING
BOTTOM COWLING
CONTROL
BRACKET 1
BRACKET 2
BRACKET 3
UPPER CASING
LOWER CASING. DRIVE 1
LOWER CASING. DRIVE 2
FUEL TANK
STEERING GUIDE
CYLINDER. CRANKCASE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT. PISTON
INTAKE
CARBURETOR
FUEL
GENERATOR
ELECTRICAL
STARTING MOTOR

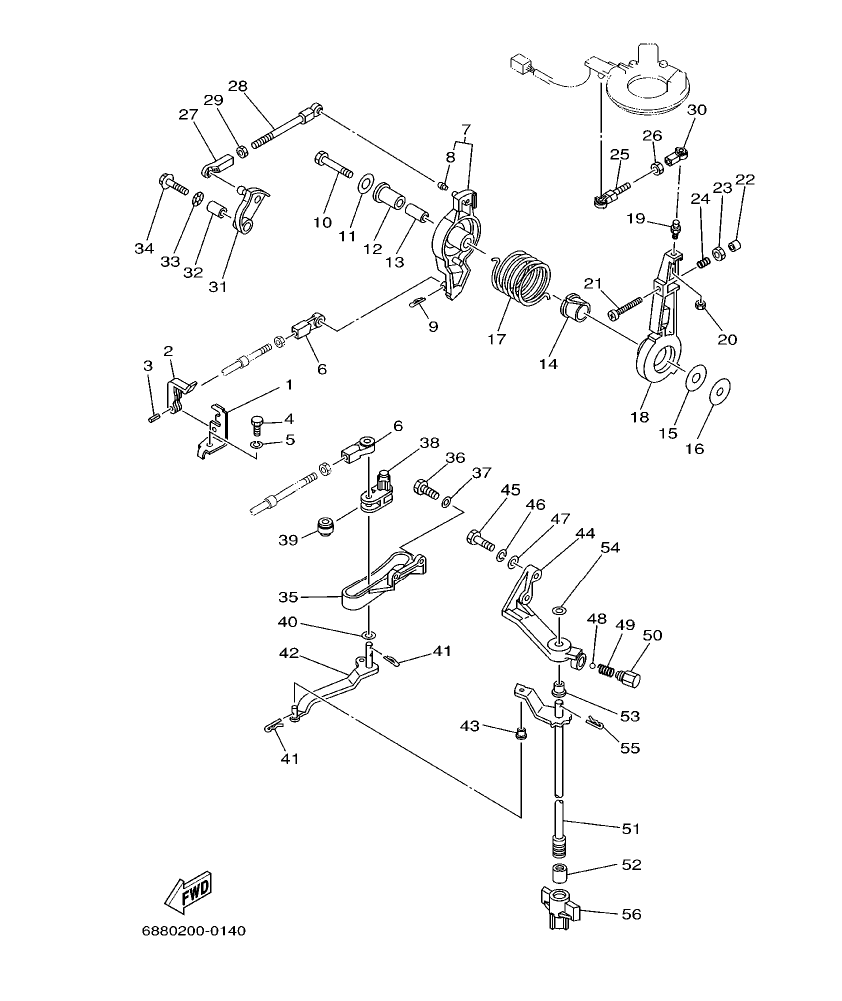

Diagram for section 11: CONTROL.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
663–48531–00
BRACKET, REMOTE CONTROL 1
|
1 | Ask on WhatsApp |
| 2 |
663–48538–00
CLAMP, CABLE 1
|
1 | Ask on WhatsApp |
| 3 |
91690–30012
PIN, SPRING
|
1 | Ask on WhatsApp |
| 4 |
97095–08016
BOLT
|
1 | Ask on WhatsApp |
| 5 |
92995–08100
WASHER
|
1 | Ask on WhatsApp |
| 6 |
663–48344–00
CABLE END, REMOTE CONTROL
|
2 | Ask on WhatsApp |
| 7 |
688–41632–01–94
LEVER, MAGNETO CONTROL
|
1 | Ask on WhatsApp |
| 8 |
662–41214–01
.JOINT 1
|
1 | Ask on WhatsApp |
| 9 |
90468–18008
CLIP
|
1 | Ask on WhatsApp |
| 10 |
97095–08045
BOLT
|
1 | Ask on WhatsApp |
| 11 |
90201–08M23
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 12 |
90386–12089
BUSH
|
1 | Ask on WhatsApp |
| 13 |
90387–08M16
COLLAR
|
1 | Ask on WhatsApp |
| 14 |
90386–22M13
BUSH
|
1 | Ask on WhatsApp |
| 15 |
90202–12092
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 16 |
90201–08M13
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 17 |
90508–29M05
SPRING, TORSION
|
1 | Ask on WhatsApp |
| 18 |
688–41631–01–94
LEVER, MAGNETO CONTROL
|
1 | Ask on WhatsApp |
| 19 |
663–85518–00
JOINT, BALL
|
1 | Ask on WhatsApp |
| 20 |
95303–05700
NUT
|
1 | Ask on WhatsApp |
| 21 |
90157–06013
SCREW, PAN HEAD
|
1 | Ask on WhatsApp |
| 22 |
688–44194–00
CAP
|
1 | Ask on WhatsApp |
| 23 |
95303–06600
NUT
|
1 | Ask on WhatsApp |
| 24 |
90501–16M12
SPRING, COMPRESSION
|
1 | Ask on WhatsApp |
| 25 |
682–41237–50
JOINT, LINK
|
1 | Ask on WhatsApp |
| 26 |
95380–05600
NUT
|
1 | Ask on WhatsApp |
| 27 |
682–41237–00
JOINT, LINK
|
1 | Ask on WhatsApp |
| 28 |
688–41211–01
LINK, ACCEL.
|
1 | Ask on WhatsApp |
| 29 |
95380–05600
NUT
|
1 | Ask on WhatsApp |
| 30 |
682–41237–00
JOINT, LINK
|
1 | Ask on WhatsApp |
| 31 |
688–41213–00
CAM, ACCEL.
|
1 | Ask on WhatsApp |
| 32 |
90387–06M17
COLLAR
|
1 | Ask on WhatsApp |
| 33 |
90206–10M04
WASHER, WAVE
|
1 | Ask on WhatsApp |
| 34 |
90119–06M24
BOLT, WITH WASHER
|
1 | Ask on WhatsApp |
| 35 |
688–44117–00–94
BRACKET
|
1 | Ask on WhatsApp |
| 36 |
97013–06020
BOLT
|
2 | Ask on WhatsApp |
| 37 |
92903–06600
WASHER, PLATE
|
2 | Ask on WhatsApp |
| 38 |
688–44124–00
LINK, SHIFT ROD
|
1 | Ask on WhatsApp |
| 39 |
688–44122–00
BUSHING, SHIFT ROD LEVER
|
1 | Ask on WhatsApp |
| 40 |
90202–07M07
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 41 |
90468–18008
CLIP
|
3 | Ask on WhatsApp |
| 42 |
688–44121–02
LEVER, SHIFT ROD
|
1 | Ask on WhatsApp |
| 43 |
90386–06M12
BUSH
|
1 | Ask on WhatsApp |
| 44 |
688–44118–00–94
BRACKET
|
1 | Ask on WhatsApp |
| 45 |
97013–08030
BOLT
|
2 | Ask on WhatsApp |
| 46 |
92903–08100
WASHER, SPRING
|
2 | Ask on WhatsApp |
| 47 |
92903–08600
WASHER, PLATE
|
2 | Ask on WhatsApp |
| 48 |
93501–04M02
BALL
|
1 | Ask on WhatsApp |
| 49 |
90501–12082
SPRING, COMPRESSION
|
1 | Ask on WhatsApp |
| 50 |
648–42715–00
BUSHING
|
1 | Ask on WhatsApp |
| 51 |
688–44120–12
HANDLE GEAR SHIFT ASSY
|
1 | Ask on WhatsApp |
| 52 |
696–44147–00
BOOT, SHIFT ROD
|
1 | Ask on WhatsApp |
| 53 |
90386–08006
BUSH
|
1 | Ask on WhatsApp |
| 54 |
92990–08200
WASHER, PLAIN
|
1 | Ask on WhatsApp |
| 55 |
90468–18008
CLIP
|
1 | Ask on WhatsApp |
| 56 |
697–43662–00
GUIDE, REVERSE ROD
|
1 | Ask on WhatsApp |
| 688 |
688–44120–22
HANDLE GEAR SHIFT ASSY
|
1 | Ask on WhatsApp |
