Section 18: FUEL TANK (v2)
Engine sections in this catalog
TOP COWLING
BOTTOM COWLING
CONTROL
BRACKET 1
BRACKET 2
BRACKET 3
UPPER CASING
LOWER CASING. DRIVE 1
LOWER CASING. DRIVE 2
FUEL TANK
STEERING GUIDE
CYLINDER. CRANKCASE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT. PISTON
INTAKE
CARBURETOR
FUEL
GENERATOR
ELECTRICAL
STARTING MOTOR

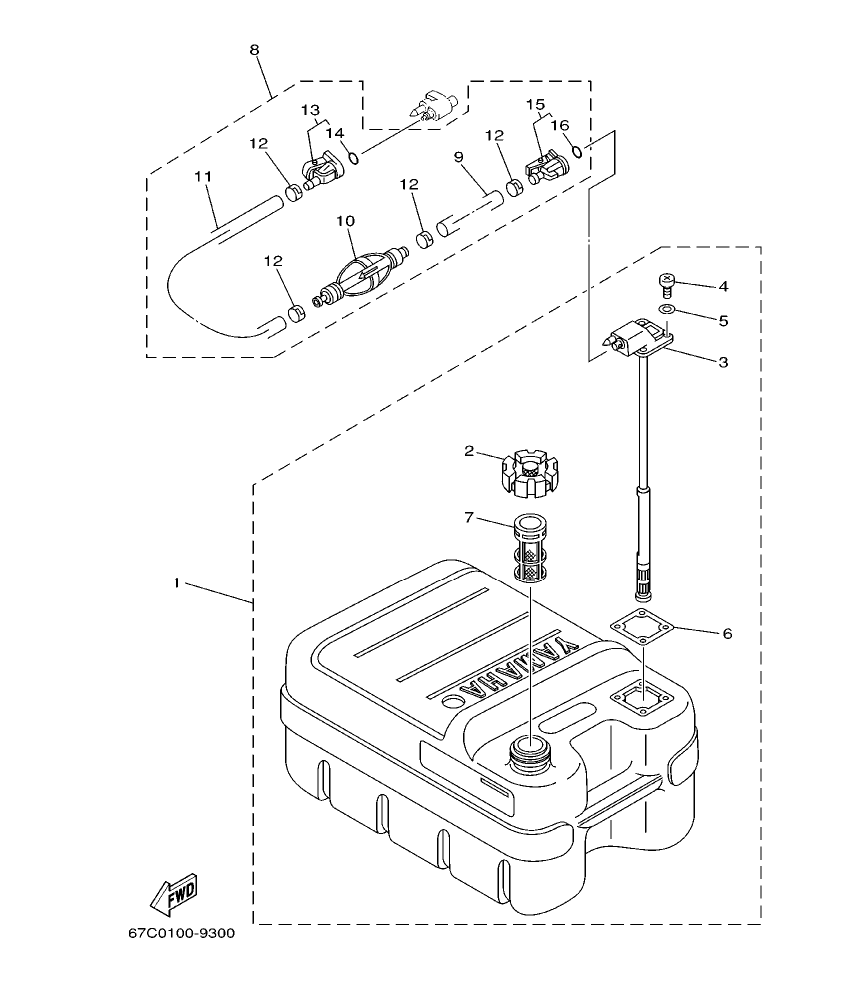

Diagram for section 18: FUEL TANK.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6YJ–24201–10
FUEL TANK ASSY (24L)
|
1 | Ask on WhatsApp |
| 2 |
6YJ–24610–01
.CAP ASSY
|
1 | Ask on WhatsApp |
| 3 |
6Y1–24260–12
.FUEL METER ASSY
|
1 | Ask on WhatsApp |
| 4 |
98586–05016
.SCREW, PAN HEAD
|
4 | Ask on WhatsApp |
| 5 |
6Y1–24329–00
.SEAL
|
4 | Ask on WhatsApp |
| 6 |
6Y1–24268–00
.GASKET, FUEL METER
|
1 | Ask on WhatsApp |
| 7 |
6YJ–24167–00
.STRAINER
|
1 | Ask on WhatsApp |
| 8 |
61J–24306–02
FUEL PIPE COMP. 1
|
1 | Ask on WhatsApp |
| 9 |
90445–11M06
.HOSE (L2050)
|
1 | Ask on WhatsApp |
| 10 |
61J–24360–00
.PRIMER PUMP ASSY
|
1 | Ask on WhatsApp |
| 11 |
90445–11M05
.HOSE (L:850MM)
|
1 | Ask on WhatsApp |
| 12 |
650–24351–51
.BAND 1
|
4 | Ask on WhatsApp |
| 13 |
6G1–24305–03
.FUEL PIPE JOINT COMP. 2
|
1 | Ask on WhatsApp |
| 14 |
93210–08287
..O–RING
|
1 | Ask on WhatsApp |
| 15 |
6Y1–24305–04
.FUEL PIPE JOINT COMP. 2
|
1 | Ask on WhatsApp |
| 16 |
93210–08287
..O–RING
|
1 | Ask on WhatsApp |
