Section 16: LOWER CASING. DRIVE 1 (v2)
Engine sections in this catalog
TOP COWLING
BOTTOM COWLING
CONTROL
BRACKET 1
BRACKET 2
BRACKET 3
UPPER CASING
LOWER CASING. DRIVE 1
LOWER CASING. DRIVE 2
FUEL TANK
STEERING GUIDE
CYLINDER. CRANKCASE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT. PISTON
INTAKE
CARBURETOR
FUEL
GENERATOR
ELECTRICAL
STARTING MOTOR

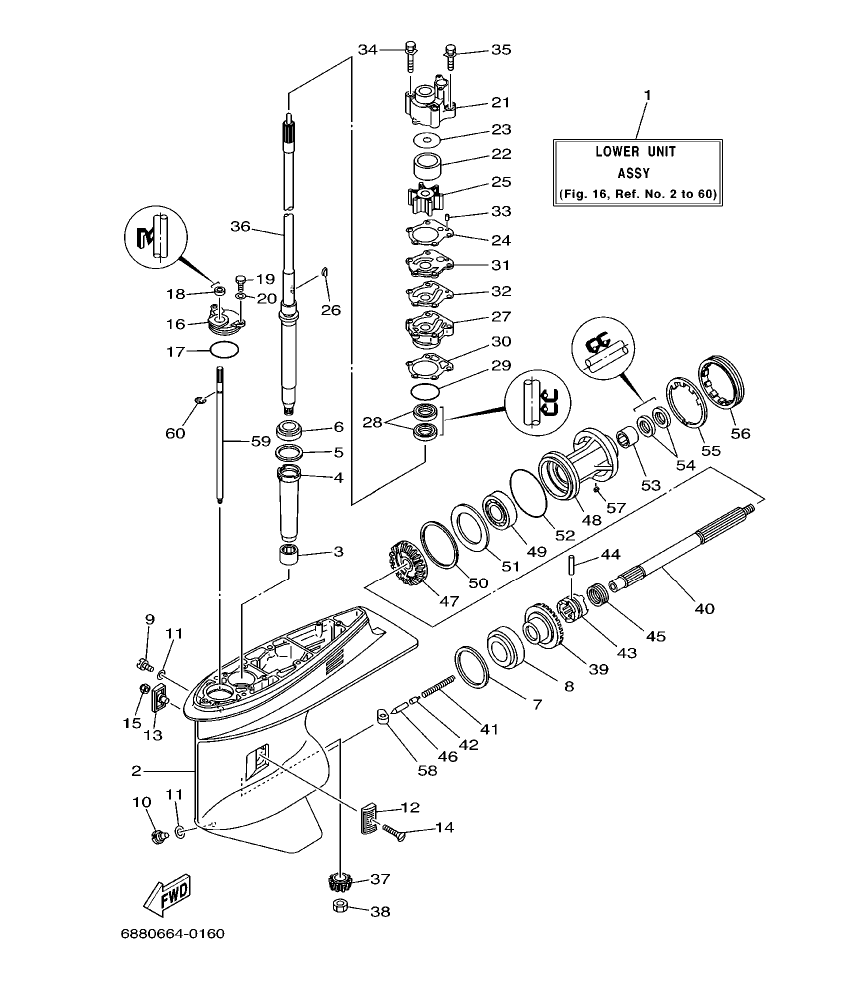

Diagram for section 16: LOWER CASING. DRIVE 1.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
692–45300–14–4D
LOWER UNIT ASSY
|
1 | Ask on WhatsApp |
| 2 |
688–45311–06–4D
CASING, LOWER
|
1 | Ask on WhatsApp |
| 3 |
93315–325V1
BEARING
|
1 | Ask on WhatsApp |
| 4 |
688–45536–01
SLEEVE, DRIVE SHAFT
|
1 | Ask on WhatsApp |
| 5 |
688–45587–01–10
SHIM (T:0.10MM)
|
1 | Ask on WhatsApp |
| 6 |
93332–000U3
BEARING
|
1 | Ask on WhatsApp |
| 7 |
688–45567–01–10
SHIM (T:0.10MM)
|
1 | Ask on WhatsApp |
| 8 |
93332–000W7
BEARING
|
1 | Ask on WhatsApp |
| 9 |
90340–08M04
PLUG, STRAIGHT SCREW
|
1 | Ask on WhatsApp |
| 10 |
688–45341–00
PLUG, DRAIN
|
1 | Ask on WhatsApp |
| 11 |
90430–08020
GASKET
|
2 | Ask on WhatsApp |
| 12 |
6H1–45214–00
COVER, WATER INLET
|
1 | Ask on WhatsApp |
| 13 |
6H1–45215–00
COVER, WATER INLET
|
1 | Ask on WhatsApp |
| 14 |
90151–05M00
SCREW, COUNTERSUNK
|
1 | Ask on WhatsApp |
| 15 |
90185–05002
NUT, SELF–LOCKING
|
1 | Ask on WhatsApp |
| 16 |
688–45321–00
PLATE
|
1 | Ask on WhatsApp |
| 17 |
93210–49046
O–RING
|
1 | Ask on WhatsApp |
| 18 |
93106–09014
OIL SEAL
|
1 | Ask on WhatsApp |
| 19 |
97095–06016
BOLT
|
2 | Ask on WhatsApp |
| 20 |
92995–06600
WASHER
|
2 | Ask on WhatsApp |
| 21 |
688–44311–01
HOUSING, WATER PUMP
|
1 | Ask on WhatsApp |
| 22 |
688–44322–41
INSERT, CARTRIDGE
|
1 | Ask on WhatsApp |
| 23 |
688–44321–41
INNER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 24 |
688–44315–A0
GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 25 |
688–44352–03
IMPELLER
|
1 | Ask on WhatsApp |
| 26 |
90280–04M04
KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 27 |
688–44341–01–94
HOUSING, WATER PUMP
|
1 | Ask on WhatsApp |
| 28 |
93101–25M03
OIL SEAL
|
2 | Ask on WhatsApp |
| 29 |
93210–46044
O–RING
|
1 | Ask on WhatsApp |
| 30 |
688–44316–A0
GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 31 |
688–44323–40
OUTER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 32 |
688–44324–A0
GASKET, CARTRIDGE
|
1 | Ask on WhatsApp |
| 33 |
93604–10M03
PIN, DOWEL
|
2 | Ask on WhatsApp |
| 34 |
90119–08M16
BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 35 |
90119–08M13
BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 36 |
688–45501–11
DRIVE SHAFT COMP.
|
1 | Ask on WhatsApp |
| 37 |
688–45551–01
PINION
|
1 | Ask on WhatsApp |
| 38 |
90170–16M01
NUT
|
1 | Ask on WhatsApp |
| 39 |
688–45560–00
GEAR
|
1 | Ask on WhatsApp |
| 40 |
688–45611–00
SHAFT, PROPELLER
|
1 | Ask on WhatsApp |
| 41 |
90501–16233
SPRING, COMPRESSION
|
1 | Ask on WhatsApp |
| 42 |
688–45634–00
SLIDE, SHIFT
|
1 | Ask on WhatsApp |
| 43 |
688–45631–01
CLUTCH, DOG
|
1 | Ask on WhatsApp |
| 44 |
90250–07M02
PIN, STRAIGHT
|
1 | Ask on WhatsApp |
| 45 |
688–45633–00
RING, CROSS PIN
|
1 | Ask on WhatsApp |
| 46 |
688–45635–00
PLUNGER, SHIFT
|
1 | Ask on WhatsApp |
| 47 |
688–45571–01
GEAR
|
1 | Ask on WhatsApp |
| 48 |
688–45331–00–94
HOUSING, BEARING
|
1 | Ask on WhatsApp |
| 49 |
93306–207U0
BEARING
|
1 | Ask on WhatsApp |
| 50 |
688–45577–01–10
SHIM (T:0.10MM)
|
1 | Ask on WhatsApp |
| 51 |
688–45576–00
WASHER, THRUST
|
1 | Ask on WhatsApp |
| 52 |
93210–85M97
O–RING
|
1 | Ask on WhatsApp |
| 53 |
93317–325U0
BEARING
|
1 | Ask on WhatsApp |
| 54 |
93101–25M03
OIL SEAL
|
2 | Ask on WhatsApp |
| 55 |
688–45383–02
WASHER, CLAW
|
1 | Ask on WhatsApp |
| 56 |
688–45384–00
NUT
|
1 | Ask on WhatsApp |
| 57 |
90282–04010
KEY, STRAIGHT
|
1 | Ask on WhatsApp |
| 58 |
663–44151–00
CAM, SHIFT
|
1 | Ask on WhatsApp |
| 59 |
663–44144–01
ROD, SHIFT
|
1 | Ask on WhatsApp |
| 60 |
93430–08006
CIRCLIP
|
1 | Ask on WhatsApp |
| 688 |
688–45501–22
DRIVE SHAFT COMP.
|
1 | Ask on WhatsApp |
| 688 |
688–45567–01–12
SHIM (T:0.12MM)
|
1 | Ask on WhatsApp |
| 688 |
688–45567–01–15
SHIM (T:0.15MM)
|
1 | Ask on WhatsApp |
| 688 |
688–45567–01–18
SHIM (T:0.18MM)
|
1 | Ask on WhatsApp |
| 688 |
688–45567–01–30
SHIM (T:0.30MM)
|
1 | Ask on WhatsApp |
| 688 |
688–45567–01–40
SHIM (T:0.40MM)
|
1 | Ask on WhatsApp |
| 688 |
688–45567–01–50
SHIM (T:0.50MM)
|
1 | Ask on WhatsApp |
| 688 |
688–45577–01–12
SHIM (T:0.12MM)
|
1 | Ask on WhatsApp |
| 688 |
688–45577–01–15
SHIM (T:0.15MM)
|
1 | Ask on WhatsApp |
| 688 |
688–45577–01–18
SHIM (T:0.18MM)
|
1 | Ask on WhatsApp |
| 688 |
688–45577–01–30
SHIM (T:0.30MM)
|
1 | Ask on WhatsApp |
| 688 |
688–45577–01–40
SHIM (T:0.40MM)
|
1 | Ask on WhatsApp |
| 688 |
688–45577–01–50
SHIM (T:0.50MM)
|
1 | Ask on WhatsApp |
| 688 |
688–45587–01–12
SHIM (T:0.12MM)
|
1 | Ask on WhatsApp |
| 688 |
688–45587–01–15
SHIM (T:0.15MM)
|
1 | Ask on WhatsApp |
| 688 |
688–45587–01–18
SHIM (T:0.18MM)
|
1 | Ask on WhatsApp |
| 688 |
688–45587–01–30
SHIM (T:0.30MM)
|
1 | Ask on WhatsApp |
| 688 |
688–45587–01–40
SHIM (T:0.40MM)
|
1 | Ask on WhatsApp |
| 688 |
688–45587–01–50
SHIM (T:0.50MM)
|
1 | Ask on WhatsApp |
| 692 |
692–45300–24–4D
LOWER UNIT ASSY
|
1 | Ask on WhatsApp |
