E60H’04 – section 11 ELECTRICAL 3 parts diagram

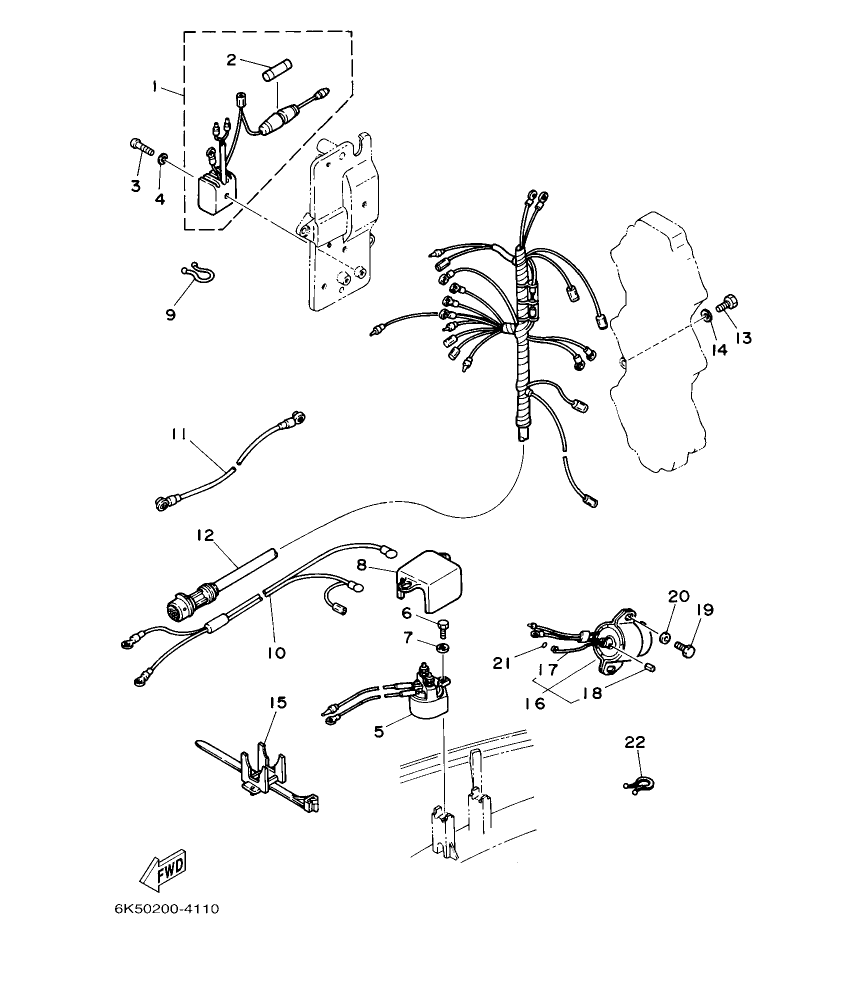

Diagram for section 11: ELECTRICAL 3.

Ref Part No. Qty Buy
1
6G1–81970–61
RECTIFIER ASSY
 1 Ask on WhatsApp
2
6G1–82151–00
.FUSE (10A)
 1 Ask on WhatsApp
3
97880–05025
SCREW, PAN HEAD
 1 Ask on WhatsApp
4
92990–05600
WASHER, PLATE
 1 Ask on WhatsApp
5
688–81950–10
RELAY ASSY
 1 Ask on WhatsApp
6
97013–06016
BOLT
 1 Ask on WhatsApp
7
92903–06600
WASHER, PLATE
 1 Ask on WhatsApp
8
6H3–82164–00
CASE 2
 1 Ask on WhatsApp
9
90464–15M11
CLAMP
 1 Ask on WhatsApp
10
6H3–82105–01
WIRE HARNESS
 1 Ask on WhatsApp
11
6H3–82117–00
WIRE, LEAD
 1 Ask on WhatsApp
12
6H3–82590–01
WIRE HARNESS ASSY
 1 Ask on WhatsApp
13
97013–06012
BOLT
 1 Ask on WhatsApp
14
92903–06600
WASHER, PLATE
 1 Ask on WhatsApp
15
688–82594–00
CLAMP
 1 Ask on WhatsApp
16
6H3–86110–02
SOLENOID
 1 Ask on WhatsApp
17
6H3–86116–00
.WIRE, PULL
 1 Ask on WhatsApp
18
91690–30010
.PIN, SPRING
 1 Ask on WhatsApp
19
97013–06016
BOLT
 2 Ask on WhatsApp
20
92903–06600
WASHER, PLATE
 2 Ask on WhatsApp
21
93210–03261
O-RING
 1 Ask on WhatsApp
22
90465–18147
CLAMP
 1 Ask on WhatsApp
