E60H’04
Section 32: REPAIR KIT 2 (v2)
Engine sections in this catalog
TOP COWLING
ELECTRICAL 2
ELECTRICAL 3
ELECTRICAL 4
ELECTRICAL 5
STARTING MOTOR
BOTTOM COWLING
STEERING
CONTROL
BRACKET 1
BRACKET 2
CYLINDER & CRANKCASE
BRACKET 3
BRACKET 4
UPPER CASING
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
LOWER CASING & DRIVE 3
FUEL TANK
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
CRANKSHAFT & PISTON
METER
REPAIR KIT 1
REPAIR KIT 2
INTAKE
CARBURETOR
FUEL
STARTER
GENERATOR
ELECTRICAL 1

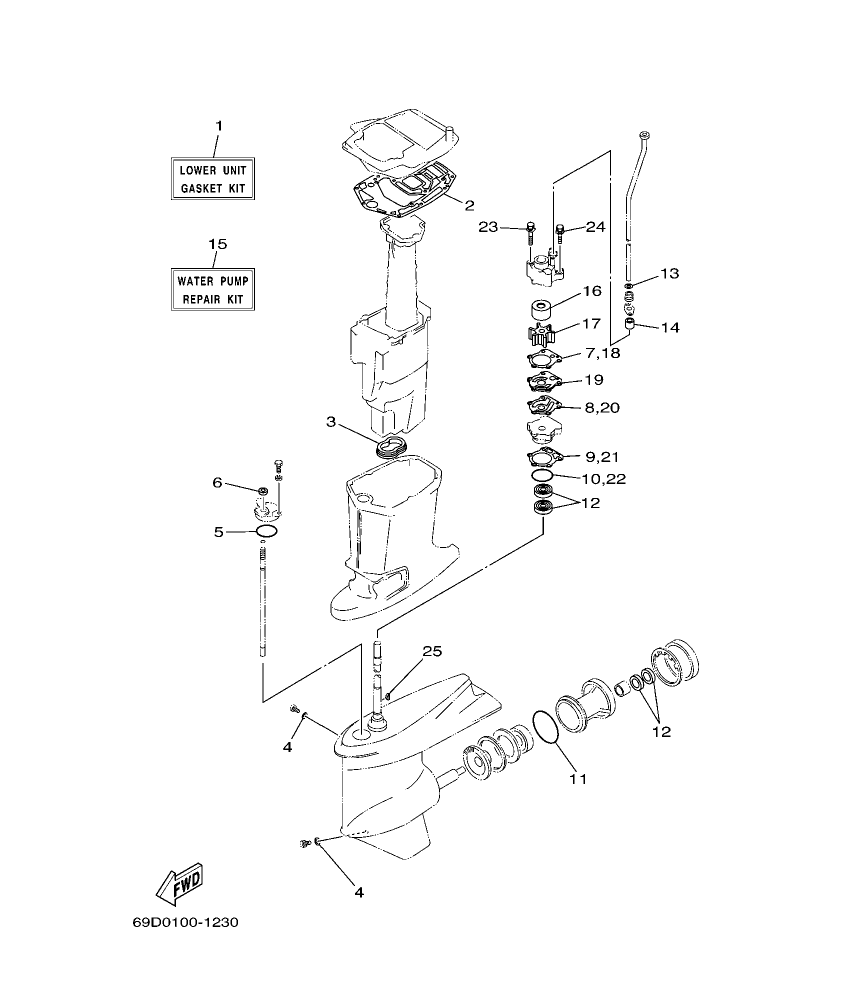

Diagram for section 32: REPAIR KIT 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
69D–W0001–20
LOWER UNIT GASKET KIT
|
1 | Ask on WhatsApp |
| 1 |
69D–W0001–20
LOWER UNIT GASKET KIT
|
1 | Ask on WhatsApp |
| 1 |
69D–W0001–20
LOWER UNIT GASKET KIT
|
1 | Ask on WhatsApp |
| 2 |
6H3–45114–A1
.GASKET, UPPER CASING
|
1 | Ask on WhatsApp |
| 2 |
6H3–45114–A1
.GASKET, UPPER CASING
|
1 | Ask on WhatsApp |
| 2 |
6H3–45114–A1
.GASKET, UPPER CASING
|
1 | Ask on WhatsApp |
| 3 |
6H3–45123–00
.GASKET, MUFFLER
|
1 | Ask on WhatsApp |
| 3 |
6H3–45123–00
.GASKET, MUFFLER
|
1 | Ask on WhatsApp |
| 3 |
6H3–45123–00
.GASKET, MUFFLER
|
1 | Ask on WhatsApp |
| 4 |
90430–08020
.GASKET
|
2 | Ask on WhatsApp |
| 4 |
90430–08020
.GASKET
|
2 | Ask on WhatsApp |
| 4 |
90430–08020
.GASKET
|
2 | Ask on WhatsApp |
| 5 |
93210–49046
.O-RING
|
1 | Ask on WhatsApp |
| 5 |
93210–49046
.O-RING
|
1 | Ask on WhatsApp |
| 5 |
93210–49046
.O-RING
|
1 | Ask on WhatsApp |
| 6 |
93106–09014
.OIL SEAL
|
1 | Ask on WhatsApp |
| 6 |
93106–09014
.OIL SEAL
|
1 | Ask on WhatsApp |
| 6 |
93106–09014
.OIL SEAL
|
1 | Ask on WhatsApp |
| 7 |
688–44315–A0
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 7 |
688–44315–A0
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 7 |
688–44315–A0
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 8 |
688–44324–A0
.GASKET, CARTRIDGE
|
1 | Ask on WhatsApp |
| 8 |
688–44324–A0
.GASKET, CARTRIDGE
|
1 | Ask on WhatsApp |
| 8 |
688–44324–A0
.GASKET, CARTRIDGE
|
1 | Ask on WhatsApp |
| 9 |
688–44316–A0
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 9 |
688–44316–A0
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 9 |
688–44316–A0
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 10 |
93210–46044
.O-RING
|
1 | Ask on WhatsApp |
| 10 |
93210–46044
.O-RING
|
1 | Ask on WhatsApp |
| 10 |
93210–46044
.O-RING
|
1 | Ask on WhatsApp |
| 11 |
93210–85M97
.O-RING
|
1 | Ask on WhatsApp |
| 11 |
93210–85M97
.O-RING
|
1 | Ask on WhatsApp |
| 11 |
93210–85M97
.O-RING
|
1 | Ask on WhatsApp |
| 12 |
93101–25M03
.OIL SEAL
|
4 | Ask on WhatsApp |
| 12 |
93101–25M03
.OIL SEAL
|
4 | Ask on WhatsApp |
| 12 |
93101–25M03
.OIL SEAL
|
4 | Ask on WhatsApp |
| 13 |
90430–12072
.GASKET
|
1 | Ask on WhatsApp |
| 13 |
90430–12072
.GASKET
|
1 | Ask on WhatsApp |
| 13 |
90430–12072
.GASKET
|
1 | Ask on WhatsApp |
| 14 |
663–44366–00
.DAMPER, WATER SEAL
|
1 | Ask on WhatsApp |
| 14 |
663–44366–00
.DAMPER, WATER SEAL
|
1 | Ask on WhatsApp |
| 14 |
663–44366–00
.DAMPER, WATER SEAL
|
1 | Ask on WhatsApp |
| 15 |
69D–W0078–00
WATER PUMP REPAIR KIT
|
1 | Ask on WhatsApp |
| 15 |
69D–W0078–00
WATER PUMP REPAIR KIT
|
1 | Ask on WhatsApp |
| 15 |
69D–W0078–00
WATER PUMP REPAIR KIT
|
1 | Ask on WhatsApp |
| 16 |
69D–44322–00
.INSERT, CARTRIDGE
|
1 | Ask on WhatsApp |
| 16 |
69D–44322–00
.INSERT, CARTRIDGE
|
1 | Ask on WhatsApp |
| 16 |
69D–44322–00
.INSERT, CARTRIDGE
|
1 | Ask on WhatsApp |
| 17 |
688–44352–03
.IMPELLER
|
1 | Ask on WhatsApp |
| 17 |
688–44352–03
.IMPELLER
|
1 | Ask on WhatsApp |
| 17 |
688–44352–03
.IMPELLER
|
1 | Ask on WhatsApp |
| 18 |
688–44315–A0
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 18 |
688–44315–A0
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 18 |
688–44315–A0
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 19 |
688–44323–40
.OUTER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 19 |
688–44323–40
.OUTER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 19 |
688–44323–40
.OUTER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 20 |
688–44324–A0
.GASKET, CARTRIDGE
|
1 | Ask on WhatsApp |
| 20 |
688–44324–A0
.GASKET, CARTRIDGE
|
1 | Ask on WhatsApp |
| 20 |
688–44324–A0
.GASKET, CARTRIDGE
|
1 | Ask on WhatsApp |
| 21 |
688–44316–A0
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 21 |
688–44316–A0
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 21 |
688–44316–A0
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 22 |
93210–46044
.O-RING
|
1 | Ask on WhatsApp |
| 22 |
93210–46044
.O-RING
|
1 | Ask on WhatsApp |
| 22 |
93210–46044
.O-RING
|
1 | Ask on WhatsApp |
| 23 |
90119–08M16
.BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 23 |
90119–08M16
.BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 23 |
90119–08M16
.BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 24 |
90119–08M13
.BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 24 |
90119–08M13
.BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 24 |
90119–08M13
.BOLT, WITH WASHER
|
2 | Ask on WhatsApp |
| 25 |
90280–04M04
.KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 25 |
90280–04M04
.KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 25 |
90280–04M04
.KEY, WOODRUFF
|
1 | Ask on WhatsApp |
