E60H’04
Section 31: REPAIR KIT 1 (v2)
Engine sections in this catalog
TOP COWLING
ELECTRICAL 2
ELECTRICAL 3
ELECTRICAL 4
ELECTRICAL 5
STARTING MOTOR
BOTTOM COWLING
STEERING
CONTROL
BRACKET 1
BRACKET 2
CYLINDER & CRANKCASE
BRACKET 3
BRACKET 4
UPPER CASING
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
LOWER CASING & DRIVE 3
FUEL TANK
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
CRANKSHAFT & PISTON
METER
REPAIR KIT 1
REPAIR KIT 2
INTAKE
CARBURETOR
FUEL
STARTER
GENERATOR
ELECTRICAL 1

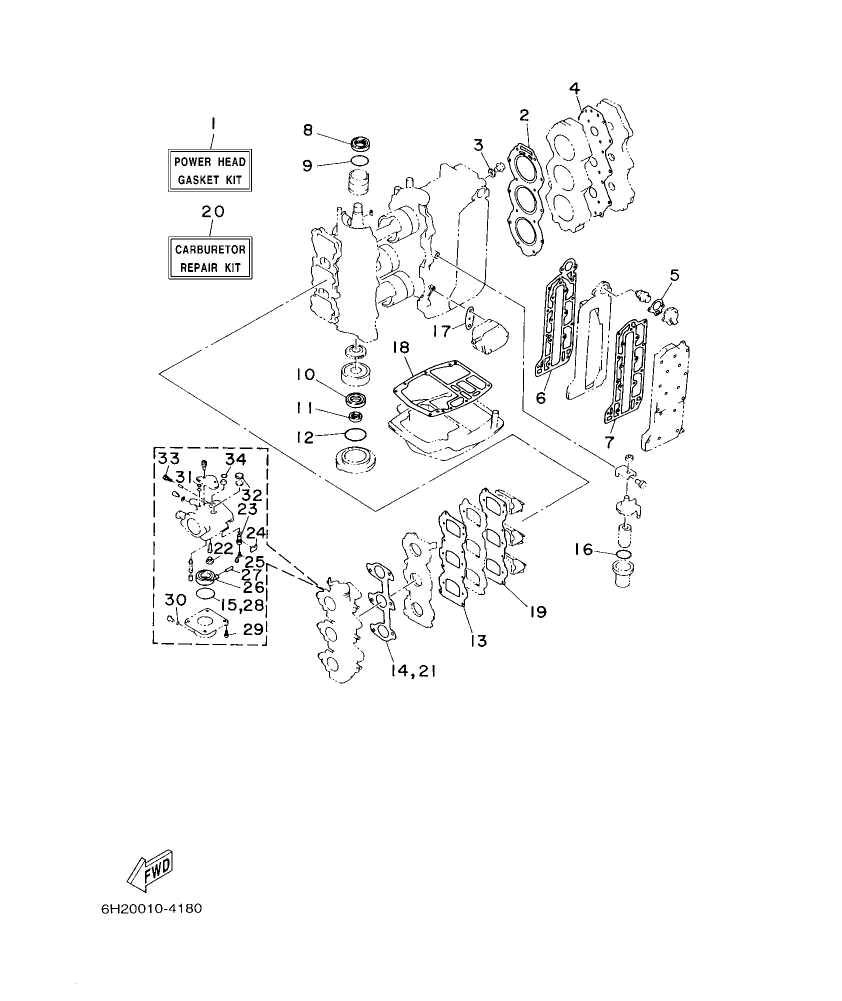

Diagram for section 31: REPAIR KIT 1.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
69D–W0001–00
POWER HEAD GASKET KIT
|
1 | Ask on WhatsApp |
| 1 |
69D–W0001–00
POWER HEAD GASKET KIT
|
1 | Ask on WhatsApp |
| 1 |
69D–W0001–00
POWER HEAD GASKET KIT
|
1 | Ask on WhatsApp |
| 2 |
6H3–11181–A1
.GASKET, CYLINDER HEAD 1
|
1 | Ask on WhatsApp |
| 2 |
6H3–11181–A1
.GASKET, CYLINDER HEAD 1
|
1 | Ask on WhatsApp |
| 2 |
6H3–11181–A1
.GASKET, CYLINDER HEAD 1
|
1 | Ask on WhatsApp |
| 3 |
90430–14115
.GASKET
|
1 | Ask on WhatsApp |
| 3 |
90430–14115
.GASKET
|
1 | Ask on WhatsApp |
| 3 |
90430–14115
.GASKET
|
1 | Ask on WhatsApp |
| 4 |
6H3–11193–A1
.GASKET, HEAD COVER 1
|
1 | Ask on WhatsApp |
| 4 |
6H3–11193–A1
.GASKET, HEAD COVER 1
|
1 | Ask on WhatsApp |
| 4 |
6H3–11193–A1
.GASKET, HEAD COVER 1
|
1 | Ask on WhatsApp |
| 5 |
6H3–12414–A1
.GASKET, COVER
|
1 | Ask on WhatsApp |
| 5 |
6H3–12414–A1
.GASKET, COVER
|
1 | Ask on WhatsApp |
| 5 |
6H3–12414–A1
.GASKET, COVER
|
1 | Ask on WhatsApp |
| 6 |
6H3–41112–A0
.GASKET, EXHAUST INNER COVER
|
1 | Ask on WhatsApp |
| 6 |
6H3–41112–A0
.GASKET, EXHAUST INNER COVER
|
1 | Ask on WhatsApp |
| 6 |
6H3–41112–A0
.GASKET, EXHAUST INNER COVER
|
1 | Ask on WhatsApp |
| 7 |
6H3–41114–A0
.GASKET, EXHAUST OUTER COVER
|
1 | Ask on WhatsApp |
| 7 |
6H3–41114–A0
.GASKET, EXHAUST OUTER COVER
|
1 | Ask on WhatsApp |
| 7 |
6H3–41114–A0
.GASKET, EXHAUST OUTER COVER
|
1 | Ask on WhatsApp |
| 8 |
93102–36M24
.OIL SEAL
|
1 | Ask on WhatsApp |
| 8 |
93102–36M24
.OIL SEAL
|
1 | Ask on WhatsApp |
| 8 |
93102–36M24
.OIL SEAL
|
1 | Ask on WhatsApp |
| 9 |
93210–46M16
.O-RING
|
1 | Ask on WhatsApp |
| 9 |
93210–46M16
.O-RING
|
1 | Ask on WhatsApp |
| 9 |
93210–46M16
.O-RING
|
1 | Ask on WhatsApp |
| 10 |
93102–30009
.OIL SEAL
|
1 | Ask on WhatsApp |
| 10 |
93102–30009
.OIL SEAL
|
1 | Ask on WhatsApp |
| 10 |
93102–30009
.OIL SEAL
|
1 | Ask on WhatsApp |
| 11 |
93106–18001
.OIL SEAL
|
1 | Ask on WhatsApp |
| 11 |
93106–18001
.OIL SEAL
|
1 | Ask on WhatsApp |
| 11 |
93106–18001
.OIL SEAL
|
1 | Ask on WhatsApp |
| 12 |
93210–65M50
.O-RING
|
1 | Ask on WhatsApp |
| 12 |
93210–65M50
.O-RING
|
1 | Ask on WhatsApp |
| 12 |
93210–65M50
.O-RING
|
1 | Ask on WhatsApp |
| 13 |
6H3–13621–A1
.GASKET, VALVE SEAT
|
1 | Ask on WhatsApp |
| 13 |
6H3–13621–A1
.GASKET, VALVE SEAT
|
1 | Ask on WhatsApp |
| 13 |
6H3–13621–A1
.GASKET, VALVE SEAT
|
1 | Ask on WhatsApp |
| 14 |
6H3–14198–A1
.GASKET
|
1 | Ask on WhatsApp |
| 14 |
6H3–14198–A1
.GASKET
|
1 | Ask on WhatsApp |
| 14 |
6H3–14198–A1
.GASKET
|
1 | Ask on WhatsApp |
| 15 |
6G1–14984–00
.O-RING
|
3 | Ask on WhatsApp |
| 15 |
6G1–14984–00
.O-RING
|
3 | Ask on WhatsApp |
| 15 |
6G1–14984–00
.O-RING
|
3 | Ask on WhatsApp |
| 16 |
61A–24564–00
.O-RING
|
1 | Ask on WhatsApp |
| 16 |
61A–24564–00
.O-RING
|
1 | Ask on WhatsApp |
| 16 |
61A–24564–00
.O-RING
|
1 | Ask on WhatsApp |
| 17 |
650–24431–A0
.GASKET, FUEL PUMP 1
|
1 | Ask on WhatsApp |
| 17 |
650–24431–A0
.GASKET, FUEL PUMP 1
|
1 | Ask on WhatsApp |
| 17 |
650–24431–A0
.GASKET, FUEL PUMP 1
|
1 | Ask on WhatsApp |
| 18 |
6H3–45113–A0
.GASKET, UPPER CASING
|
1 | Ask on WhatsApp |
| 18 |
6H3–45113–A0
.GASKET, UPPER CASING
|
1 | Ask on WhatsApp |
| 18 |
6H3–45113–A0
.GASKET, UPPER CASING
|
1 | Ask on WhatsApp |
| 19 |
6H3–13622–A1
.GASKET, VALVE SEAT
|
1 | Ask on WhatsApp |
| 19 |
6H3–13622–A1
.GASKET, VALVE SEAT
|
1 | Ask on WhatsApp |
| 19 |
6H3–13622–A1
.GASKET, VALVE SEAT
|
1 | Ask on WhatsApp |
| 20 |
6H3–W0093–02
CARBURETOR REPAIR KIT
|
1 | Ask on WhatsApp |
| 20 |
6H3–W0093–02
CARBURETOR REPAIR KIT
|
1 | Ask on WhatsApp |
| 20 |
6H3–W0093–02
CARBURETOR REPAIR KIT
|
1 | Ask on WhatsApp |
| 21 |
6H3–14198–A1
.GASKET
|
1 | Ask on WhatsApp |
| 21 |
6H3–14198–A1
.GASKET
|
1 | Ask on WhatsApp |
| 21 |
6H3–14198–A1
.GASKET
|
1 | Ask on WhatsApp |
| 22 |
676–14966–00
.CAP
|
3 | Ask on WhatsApp |
| 22 |
676–14966–00
.CAP
|
3 | Ask on WhatsApp |
| 22 |
676–14966–00
.CAP
|
3 | Ask on WhatsApp |
| 23 |
6H3–14590–01
.NEEDLE VALVE ASSY
|
3 | Ask on WhatsApp |
| 23 |
6H3–14590–01
.NEEDLE VALVE ASSY
|
3 | Ask on WhatsApp |
| 23 |
6H3–14590–01
.NEEDLE VALVE ASSY
|
3 | Ask on WhatsApp |
| 24 |
663–14159–00
.CLIP
|
3 | Ask on WhatsApp |
| 24 |
663–14159–00
.CLIP
|
3 | Ask on WhatsApp |
| 24 |
663–14159–00
.CLIP
|
3 | Ask on WhatsApp |
| 25 |
676–14186–00
.PIN, FLOAT
|
3 | Ask on WhatsApp |
| 25 |
676–14186–00
.PIN, FLOAT
|
3 | Ask on WhatsApp |
| 25 |
676–14186–00
.PIN, FLOAT
|
3 | Ask on WhatsApp |
| 26 |
6G1–14985–00
.FLOAT
|
3 | Ask on WhatsApp |
| 26 |
6G1–14985–00
.FLOAT
|
3 | Ask on WhatsApp |
| 26 |
6G1–14985–00
.FLOAT
|
3 | Ask on WhatsApp |
| 27 |
688–14548–00
.PIN, FLOAT ARM
|
3 | Ask on WhatsApp |
| 27 |
688–14548–00
.PIN, FLOAT ARM
|
3 | Ask on WhatsApp |
| 27 |
688–14548–00
.PIN, FLOAT ARM
|
3 | Ask on WhatsApp |
| 28 |
6G1–14984–00
.O-RING
|
3 | Ask on WhatsApp |
| 28 |
6G1–14984–00
.O-RING
|
3 | Ask on WhatsApp |
| 28 |
6G1–14984–00
.O-RING
|
3 | Ask on WhatsApp |
| 29 |
97980–04114
.SCREW, WITH WASHER
|
3 | Ask on WhatsApp |
| 29 |
97980–04114
.SCREW, WITH WASHER
|
3 | Ask on WhatsApp |
| 29 |
97980–04114
.SCREW, WITH WASHER
|
3 | Ask on WhatsApp |
| 30 |
93210–04230
.O-RING
|
3 | Ask on WhatsApp |
| 30 |
93210–04230
.O-RING
|
3 | Ask on WhatsApp |
| 30 |
93210–04230
.O-RING
|
3 | Ask on WhatsApp |
| 31 |
663–14126–00
.GASKET
|
3 | Ask on WhatsApp |
| 31 |
663–14126–00
.GASKET
|
3 | Ask on WhatsApp |
| 31 |
663–14126–00
.GASKET
|
3 | Ask on WhatsApp |
| 32 |
688–14126–00
.GASKET
|
3 | Ask on WhatsApp |
| 32 |
688–14126–00
.GASKET
|
3 | Ask on WhatsApp |
| 32 |
688–14126–00
.GASKET
|
3 | Ask on WhatsApp |
| 33 |
692–14923–00
.SCREW, PILOT
|
3 | Ask on WhatsApp |
| 33 |
692–14923–00
.SCREW, PILOT
|
3 | Ask on WhatsApp |
| 33 |
692–14923–00
.SCREW, PILOT
|
3 | Ask on WhatsApp |
| 34 |
93210–15M52
.O-RING
|
3 | Ask on WhatsApp |
| 34 |
93210–15M52
.O-RING
|
3 | Ask on WhatsApp |
| 34 |
93210–15M52
.O-RING
|
3 | Ask on WhatsApp |
