Section 24: BOTTOM COWLING 2 (v2)

Engine sections in this catalog
TOP COWLING THROTTLE BODY ASSY 1 THROTTLE BODY ASSY 2 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 CYLINDER & CRANKCASE 1 ELECTRICAL 4 ELECTRICAL 5 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 CRANKSHAFT & PISTON POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 OPTIONAL PARTS REPAIR KIT 1 REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1 INTAKE 2

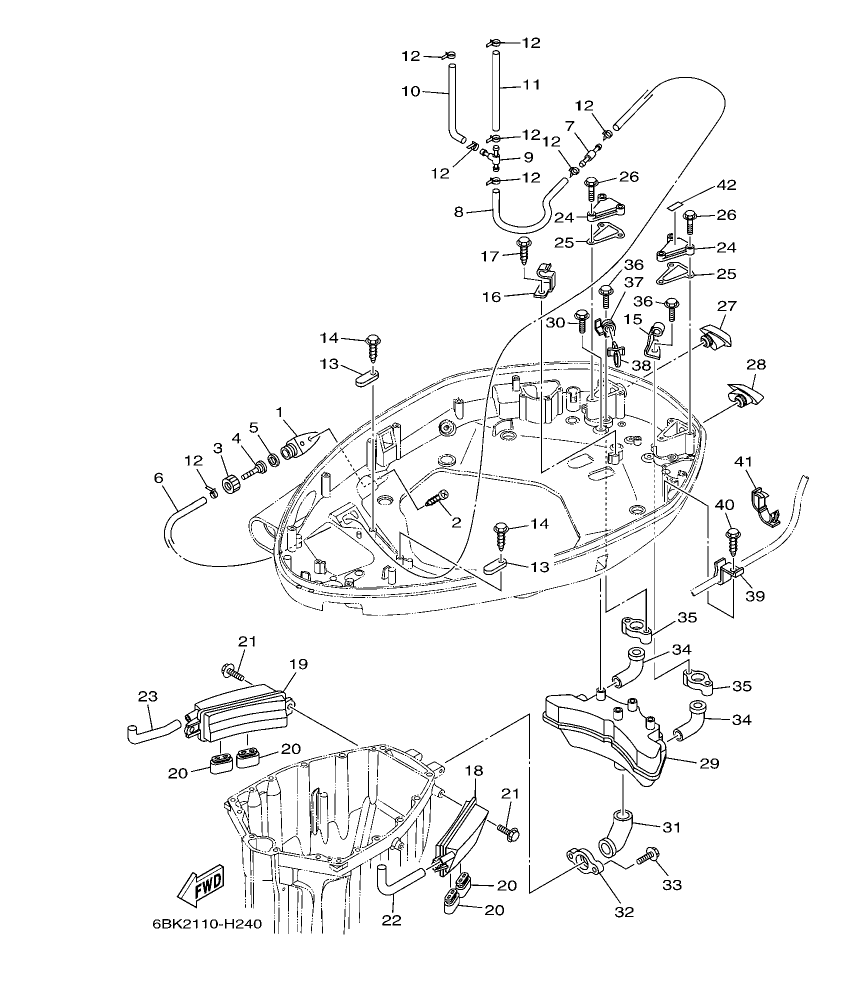

LF350CA-2011 – section 24 BOTTOM COWLING 2 parts diagram

Diagram for section 24: BOTTOM COWLING 2.

Ref Part No. Qty Buy
2
6AW-12572-00
ADAPTER
 1 Ask on WhatsApp
3
97780-60520
SCREW, TAPPING
 2
Price: 3.72 AED
In stock (4 pcs)
4
6R3-12581-00
JOINT, HOSE 1
 1 Ask on WhatsApp
5
6AW-12582-00
JOINT, HOSE 2
 1 Ask on WhatsApp
6
6R3-12583-00
GASKET, HOSE JOINT
 1 Ask on WhatsApp
7
90445-14015
HOSE (L1520)
 1 Ask on WhatsApp
8
6AW-42785-00
PIPE
 1 Ask on WhatsApp
9
90445-14013
HOSE (L480)
 1 Ask on WhatsApp
10
6AW-42169-00
JOINT
 1 Ask on WhatsApp
11
66V-24314-00
PIPE 4
 1 Ask on WhatsApp
12
90445-116J1
HOSE (L185)
 1 Ask on WhatsApp
13
90465-11M10
CLAMP
 8 Ask on WhatsApp
14
6E5-82588-00
PLATE
 2 Ask on WhatsApp
15
90109-06M81
BOLT
 2 Ask on WhatsApp
16
90465-08M82
CLAMP
 1 Ask on WhatsApp
17
6AW-42744-00
STAY
 1 Ask on WhatsApp
18
90109-06M86
BOLT
 1 Ask on WhatsApp
19
6AW-42733-00
BOX, DRAIN
 1 Ask on WhatsApp
20
6AW-42734-00
BOX, DRAIN 2
 1 Ask on WhatsApp
21
69J-42717-00
RUBBER, SEAL 2
 4 Ask on WhatsApp
22
95895-06016
BOLT, FLANGE
 4 Ask on WhatsApp
23
6AW-42786-00
HOSE, DRAIN 1
 1 Ask on WhatsApp
24
6AW-42787-00
HOSE, DRAIN 2
 1 Ask on WhatsApp
25
6AW-42723-00-8D
COVER, BOTTOM
 2 Ask on WhatsApp
26
6AW-42721-00
GASKET 1
 2 Ask on WhatsApp
27
90109-06M81
BOLT
 6 Ask on WhatsApp
28
6AW-42769-00
SEAL, RUBBER
 1 Ask on WhatsApp
