Section 25: BOTTOM COWLING 3 (v2)

Engine sections in this catalog
TOP COWLING THROTTLE BODY ASSY 1 THROTTLE BODY ASSY 2 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 CYLINDER & CRANKCASE 1 ELECTRICAL 4 ELECTRICAL 5 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 CRANKSHAFT & PISTON POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 OPTIONAL PARTS REPAIR KIT 1 REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1 INTAKE 2
LF350CA-2011 – section 25 BOTTOM COWLING 3 parts diagram

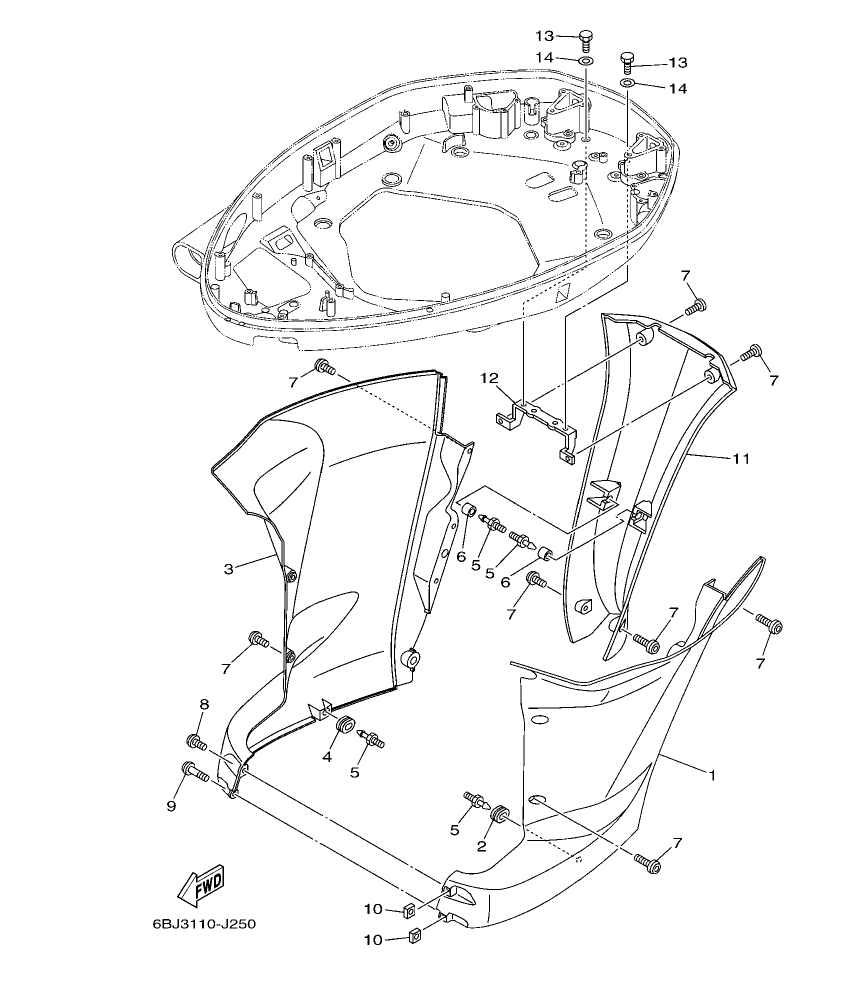

Diagram for section 25: BOTTOM COWLING 3.

Ref Part No. Qty Buy
2
6AW-42741-00-8D
APRON
 1 Ask on WhatsApp
3
90480-14M17
GROMMET
 1 Ask on WhatsApp
4
6AW-42771-00-8D
APRON
 1 Ask on WhatsApp
5
90480-14M17
GROMMET
 1 Ask on WhatsApp
6
69J-42774-10
STAY, APRON 1
 4 Ask on WhatsApp
7
90386-07001
BUSH
 2 Ask on WhatsApp
8
90111-06111
BOLT,HEX. SOCKET BUTTON
 14 Ask on WhatsApp
9
90111-06111
BOLT,HEX. SOCKET BUTTON
 1 Ask on WhatsApp
10
90111-06113
BOLT,HEX. SOCKET BUTTON
 1 Ask on WhatsApp
11
90173-06001
NUT, SQUARE
 2
Price: 17.88 AED
In stock (22 pcs)
12
6AW-45151-01-8D
COVER, UPPER CASING
 1 Ask on WhatsApp
13
6AW-42775-00
STAY, APRON 2
 1 Ask on WhatsApp
14
97095-06014
BOLT
 2 Ask on WhatsApp
15
92995-06600
WASHER
 2 Ask on WhatsApp
