LF350CA-2011

Section 15: FUEL 2 (v2)

Engine sections in this catalog
TOP COWLING THROTTLE BODY ASSY 1 THROTTLE BODY ASSY 2 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 CYLINDER & CRANKCASE 1 ELECTRICAL 4 ELECTRICAL 5 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 CRANKSHAFT & PISTON POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 OPTIONAL PARTS REPAIR KIT 1 REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1 INTAKE 2

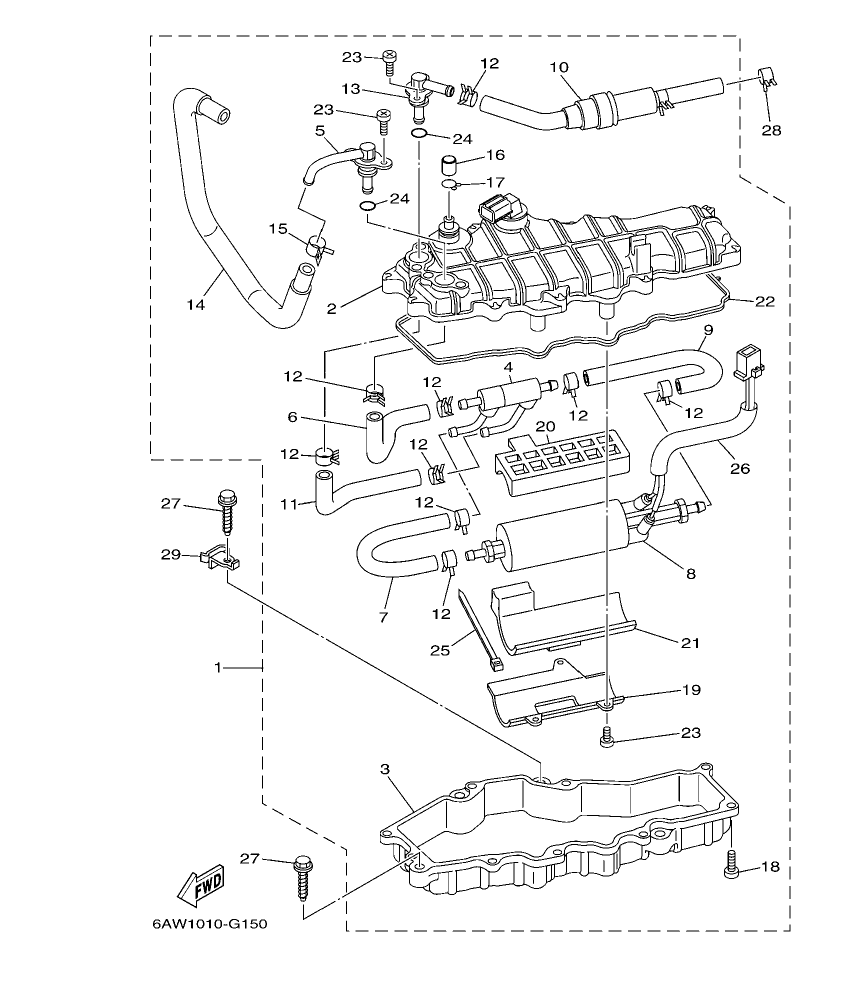

LF350CA-2011 – section 15 FUEL 2 parts diagram

Diagram for section 15: FUEL 2.

Ref Part No. Qty Buy
2
6AW-24408-01
FUEL FEED ASSY
 1 Ask on WhatsApp
3
6AW-244A0-00
.PUMP CASE COMP.
 1 Ask on WhatsApp
4
6AW-244A1-00
.CASE, PUMP 1
 1 Ask on WhatsApp
5
6AW-24460-00
.RELIEF VALVE ASSY
 1 Ask on WhatsApp
6
6AW-24378-00
.PIPE, JOINT 3
 1 Ask on WhatsApp
7
6AW-24322-00
.PIPE 11
 1 Ask on WhatsApp
8
6AW-24323-00
.PIPE 12
 1 Ask on WhatsApp
9
6AW-24410-00
.FUEL PUMP ASSY
 1 Ask on WhatsApp
10
6AW-24324-00
.PIPE 13
 1 Ask on WhatsApp
11
6AW-24502-00
.FILTER, FUEL
 1 Ask on WhatsApp
12
6AW-24325-00
.PIPE 14
 1 Ask on WhatsApp
13
68V-13577-00
.CLIP
 9 Ask on WhatsApp
14
6AW-24379-00
.PIPE, JOINT 4
 1 Ask on WhatsApp
15
6AW-24321-01
.PIPE 10
 1 Ask on WhatsApp
16
69J-14137-00
.CLIP
 1 Ask on WhatsApp
17
6AW-14118-00
.CAP
 1 Ask on WhatsApp
18
6AW-24356-00
.CLIP, PIPE 1
 1 Ask on WhatsApp
19
6AW-14567-00
.SCREW
 9 Ask on WhatsApp
20
6AW-24491-00
.BRACKET, FUEL PUMP
 1 Ask on WhatsApp
21
6AW-24492-00
.BUSH, FUEL PUMP
 1 Ask on WhatsApp
22
6AW-24492-10
.BUSH, FUEL PUMP
 1 Ask on WhatsApp
23
6AW-24431-00
.GASKET, FUEL PUMP 1
 1 Ask on WhatsApp
24
6AW-14565-00
.SCREW
 7 Ask on WhatsApp
25
68V-14397-00
.O-RING
 2 Ask on WhatsApp
26
68V-2481H-00
.CLAMP
 1 Ask on WhatsApp
27
6AW-24327-00
.PROTECTOR, PIPE
 1 Ask on WhatsApp
28
90109-06MA2
BOLT
 4 Ask on WhatsApp
