LF350CA-2011

Section 22: STARTING MOTOR (v2)

Engine sections in this catalog
TOP COWLING THROTTLE BODY ASSY 1 THROTTLE BODY ASSY 2 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 CYLINDER & CRANKCASE 1 ELECTRICAL 4 ELECTRICAL 5 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 CRANKSHAFT & PISTON POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 OPTIONAL PARTS REPAIR KIT 1 REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1 INTAKE 2

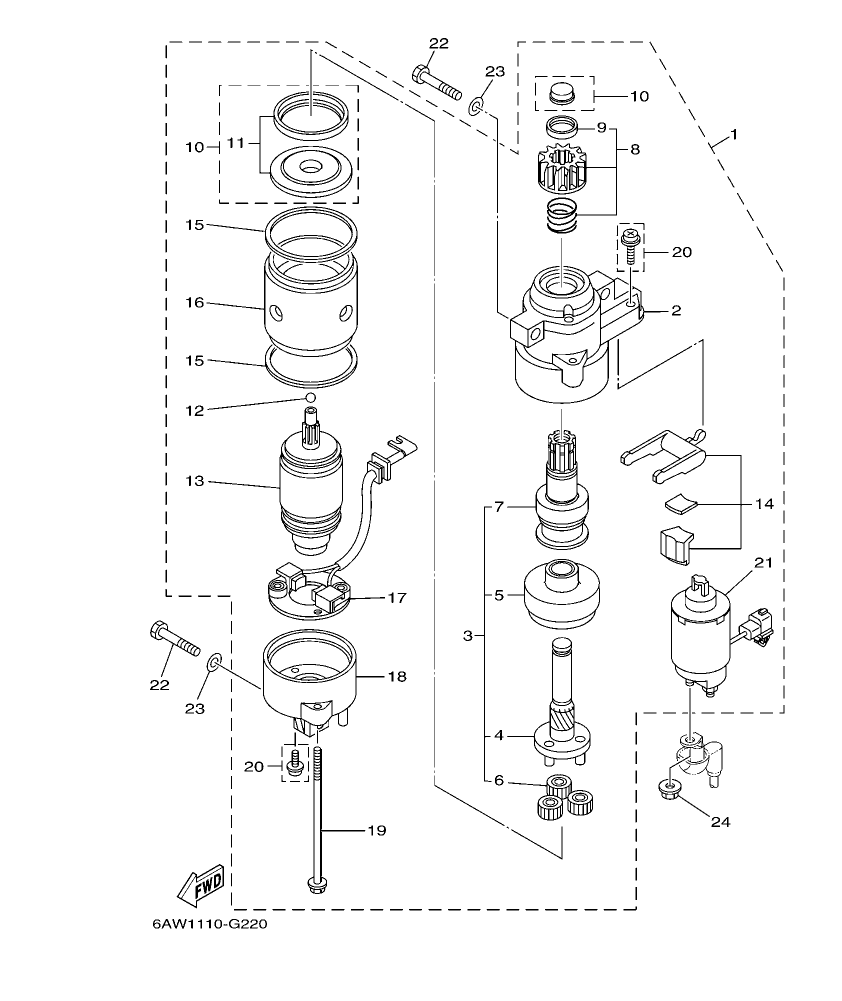

LF350CA-2011 – section 22 STARTING MOTOR parts diagram

Diagram for section 22: STARTING MOTOR.

Ref Part No. Qty Buy
2
6AW-81800-00
STARTING MOTOR ASSY
 1 Ask on WhatsApp
3
6AW-81830-00
.FRONT BRACKET ASSY
 1 Ask on WhatsApp
4
6AW-81807-00
.GEAR ASSY, STARTING MOTOR
 1 Ask on WhatsApp
5
6AW-81836-00
..SHAFT, PINION
 1 Ask on WhatsApp
6
6AW-81891-00
..GEAR, RING
 1 Ask on WhatsApp
7
6AW-8183T-00
..GEAR, IDLER
 3 Ask on WhatsApp
8
6AW-81832-00
..CLUTCH, OVER RUN
 1 Ask on WhatsApp
9
6AW-81808-00
.PINION ASSY
 1 Ask on WhatsApp
10
6AW-81857-00
..RETAINER
 1 Ask on WhatsApp
11
6AW-81862-00
.CAP
 1 Ask on WhatsApp
12
6AW-8183R-00
..PACKING SET
 1 Ask on WhatsApp
13
6AW-81854-00
.BALL, STEEL
 1 Ask on WhatsApp
14
6AW-81850-00
.ARMATURE ASSY
 1 Ask on WhatsApp
15
6AW-81839-00
.LEVER ASSY
 1 Ask on WhatsApp
16
6AW-81842-00
.PACKING
 2 Ask on WhatsApp
17
6AW-81810-00
.STATOR ASSY
 1 Ask on WhatsApp
18
6AW-81840-00
.BRUSH HOLDER ASSY
 1 Ask on WhatsApp
19
6AW-81820-00
.REAR BRACKET ASSY
 1 Ask on WhatsApp
20
6AW-81826-00
.BOLT
 1 Ask on WhatsApp
21
6AW-81846-00
.SCREW
 1 Ask on WhatsApp
22
6AW-81941-00
.STARTER RELAY ASSY
 1 Ask on WhatsApp
23
97013-08045
BOLT
 3 Ask on WhatsApp
24
92903-08600
WASHER, PLATE
 3 Ask on WhatsApp
25
90179-08003
NUT
 1 Ask on WhatsApp
