LF350CA-2011

Section 34: LOWER CASING & DRIVE 2 (v2)

Engine sections in this catalog
TOP COWLING THROTTLE BODY ASSY 1 THROTTLE BODY ASSY 2 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 CYLINDER & CRANKCASE 1 ELECTRICAL 4 ELECTRICAL 5 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 CRANKSHAFT & PISTON POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 OPTIONAL PARTS REPAIR KIT 1 REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1 INTAKE 2

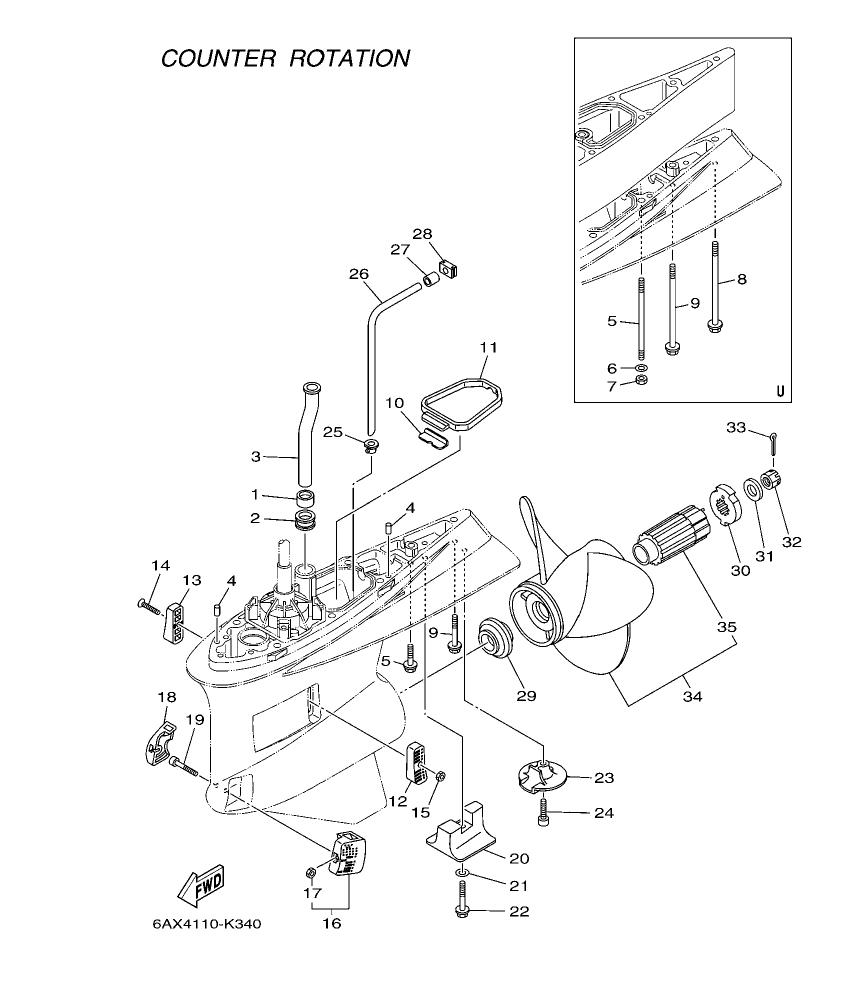

LF350CA-2011 – section 34 LOWER CASING & DRIVE 2 parts diagram

Diagram for section 34: LOWER CASING & DRIVE 2.

Ref Part No. Qty Buy
2
6AW-44365-00
DAMPER, WATER SEAL 1
 1 Ask on WhatsApp
2
6AW-44367-00
DAMPER, WATER SEAL 3
 1 Ask on WhatsApp
3
6AW-44362-00
TUBE, WATER 2
 1 Ask on WhatsApp
3
6AW-44366-00
DAMPER, WATER SEAL 2
 1 Ask on WhatsApp
4
6AW-44361-00
TUBE, WATER 1
 1 Ask on WhatsApp
4
6AW-44375-00
GROMMET, WATER TUBE 1
 1 Ask on WhatsApp
5
6AW-44376-00
GROMMET, WATER TUBE 2
 1 Ask on WhatsApp
6
6AW-45987-00
SPACER 1
 1 Ask on WhatsApp
6
93608-12M05
PIN, DOWEL
 2 Ask on WhatsApp
7
6AW-45997-10
SPACER 2
 1 Ask on WhatsApp
7
90119-10038
BOLT, WITH WASHER
 7
Price: 15.64 AED
In stock (2 pcs)
8
90201-19M01
WASHER, PLATE
 1 Ask on WhatsApp
9
90171-18M04
NUT, CASTLE
 1 Ask on WhatsApp
10
91490-40030
PIN. COTTER
 1
Price: 4.47 AED
In stock (2 pcs)
11
6AX-45970-10
"PROPELLER (3X16-1/4""X15""-XL)"
 1 Ask on WhatsApp
12
6AX-45972-10
"PROPELLER (3X16-1/4""X17""-XL)"
 1 Ask on WhatsApp
12
97575-10570
BOLT, WITH WASHER
 1 Ask on WhatsApp
13
6AX-45974-10
"PROPELLER (3X15-1/2""X19""-XL)"
 1 Ask on WhatsApp
14
61A-45376-00
GUIDE, SEAL DAMPER
 1 Ask on WhatsApp
14
6AX-45976-10
"PROPELLER (3X15-1/4""X21""-XL)"
 1 Ask on WhatsApp
15
6AW-45375-00
DAMPER, SEAL
 1 Ask on WhatsApp
15
6AX-45978-10
"PROPELLER (3X15-1/4""X23""-XL)"
 1 Ask on WhatsApp
16
6AW-45214-00
COVER, WATER INLET 1
 1 Ask on WhatsApp
16
6AW-45C80-00
.PROPELLER DAMPER RUBBER ASSY
 1 Ask on WhatsApp
17
6AW-45215-00
COVER, WATER INLET 2
 1 Ask on WhatsApp
18
90152-05003
SCREW, COUNTERSUNK
 1
Price: 5.96 AED
In stock (53 pcs)
19
90185-05002
NUT, NYLON
 1 Ask on WhatsApp
20
6AW-45224-00
COVER, WATER INLET 3
 1 Ask on WhatsApp
21
90185-05002
.NUT, NYLON
 1 Ask on WhatsApp
22
6AW-45225-00
COVER, WATER INLET 4
 1 Ask on WhatsApp
23
90110-05050
BOLT, HEXAGON SOCKET HEAD
 1
Price: 5.96 AED
In stock (45 pcs)
24
6AW-45373-00
ANODE
 1 Ask on WhatsApp
25
92990-10300
WASHER
 1
Price: 2.98 AED
In stock (15 pcs)
26
90105-10257
BOLT, FLANGE
 1
Price: 14.15 AED
In stock (28 pcs)
27
6AW-45619-00
CAP
 1 Ask on WhatsApp
28
90110-10018
BOLT, HEXAGON SOCKET HEAD
 1
Price: 3.72 AED
In stock (17 pcs)
