LF350CA-2011

Section 3: CRANKSHAFT & PISTON (v2)

Engine sections in this catalog
TOP COWLING THROTTLE BODY ASSY 1 THROTTLE BODY ASSY 2 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 CYLINDER & CRANKCASE 1 ELECTRICAL 4 ELECTRICAL 5 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 CRANKSHAFT & PISTON POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 OPTIONAL PARTS REPAIR KIT 1 REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1 INTAKE 2

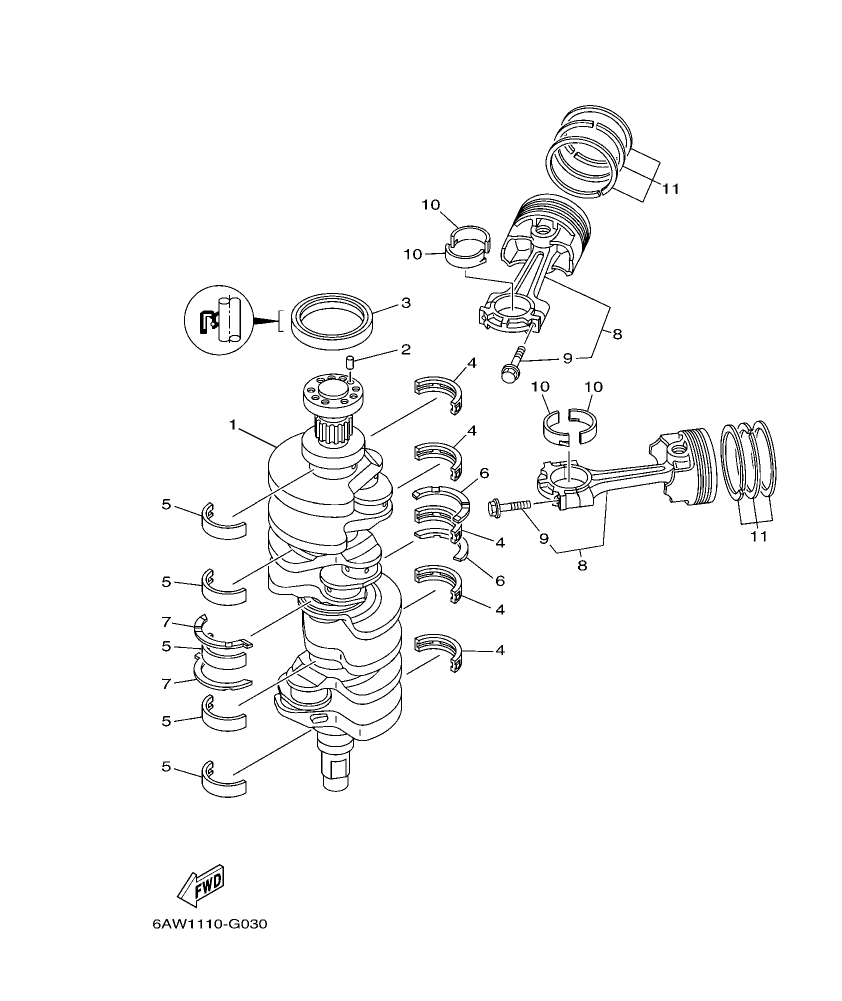

LF350CA-2011 – section 3 CRANKSHAFT & PISTON parts diagram

Diagram for section 3: CRANKSHAFT & PISTON.

Ref Part No. Qty Buy
2
6AW-11411-00
CRANKSHAFT
 1 Ask on WhatsApp
3
93606-12019
PIN, DOWEL
 1
Price: 6.70 AED
In stock (378 pcs)
4
93102-85004
OIL SEAL
 1
Price: 168.34 AED
In stock (50 pcs)
5
6AW-11416-00
PLANE BEARING, CRANKSHAFT 1
 5 Ask on WhatsApp
6
6AW-11416-10
PLANE BEARING, CRANKSHAFT 1
 5 Ask on WhatsApp
7
6AW-11416-20
PLANE BEARING, CRANKSHAFT 1
 5 Ask on WhatsApp
8
6AW-11416-30
PLANE BEARING, CRANKSHAFT 1
 5 Ask on WhatsApp
9
6AW-11416-40
PLANE BEARING, CRANKSHAFT 1
 5 Ask on WhatsApp
10
6AW-11417-00
PLANE BEARING, CRANKSHAFT 2
 5 Ask on WhatsApp
11
6AW-11417-10
PLANE BEARING, CRANKSHAFT 2
 5 Ask on WhatsApp
12
6AW-11417-20
PLANE BEARING, CRANKSHAFT 2
 5 Ask on WhatsApp
13
6AW-11417-30
PLANE BEARING, CRANKSHAFT 2
 5 Ask on WhatsApp
14
6AW-11417-40
PLANE BEARING, CRANKSHAFT 2
 5 Ask on WhatsApp
15
6AW-11426-00
BEARING, THRUST 1
 2 Ask on WhatsApp
16
6AW-11427-00
BEARING, THRUST 2
 2 Ask on WhatsApp
17
6AW-W1164-01
PISTON/CON-ROD ASSY STD
 8 Ask on WhatsApp
18
63P-11654-00
.BOLT, CONNECTING ROD
 2 Ask on WhatsApp
19
63P-11656-01
PLANE BEARING, CONNECTING ROD
 16 Ask on WhatsApp
20
63P-11656-11
PLANE BEARING, CONNECTING ROD
 16 Ask on WhatsApp
21
63P-11656-21
PLANE BEARING, CONNECTING ROD
 16 Ask on WhatsApp
22
6AW-11603-00
PISTON RING SET (STD)
 8 Ask on WhatsApp
