LF350CA-2011

Section 31: UPPER CASING (v2)

Engine sections in this catalog
TOP COWLING THROTTLE BODY ASSY 1 THROTTLE BODY ASSY 2 FUEL INJECTION PUMP 1 FUEL INJECTION PUMP 2 FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 CYLINDER & CRANKCASE 1 ELECTRICAL 4 ELECTRICAL 5 STARTING MOTOR BOTTOM COWLING 1 BOTTOM COWLING 2 BOTTOM COWLING 3 CONTROL BRACKET 1 BRACKET 2 POWER TRIM & TILT ASSY 1 CRANKSHAFT & PISTON POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 OPTIONAL PARTS REPAIR KIT 1 REPAIR KIT 2 CYLINDER & CRANKCASE 2 CYLINDER & CRANKCASE 3 CYLINDER & CRANKCASE 4 VALVE INTAKE 1 INTAKE 2

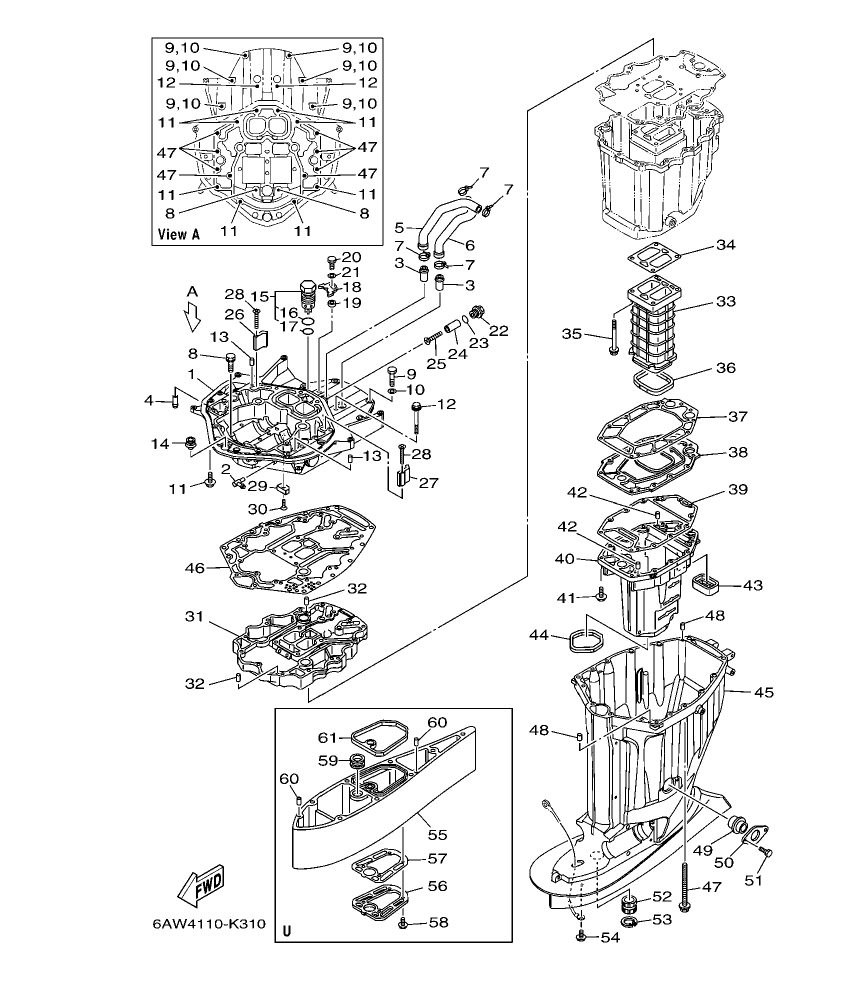

LF350CA-2011 – section 31 UPPER CASING parts diagram

Diagram for section 31: UPPER CASING.

Ref Part No. Qty Buy
2
6AW-41137-11-CA
GUIDE, EXHAUST
 1 Ask on WhatsApp
2
6AW-45211-00-8D
EXTENSION
 1 Ask on WhatsApp
2
98780-05550
SCREW, FLAT HEAD
 2
Price: 5.21 AED
In stock (9 pcs)
3
63P-11325-11
ANODE
 1 Ask on WhatsApp
3
6AW-45213-00-9S
COVER, EXTENSION
 1 Ask on WhatsApp
3
6H1-11372-00
NIPPLE, HOSE
 1 Ask on WhatsApp
4
6AW-1475G-00
PIPE 4
 2 Ask on WhatsApp
4
6AW-4581L-00
GASKET, PLATE
 1 Ask on WhatsApp
4
90151-06M02
SCREW, COUNTERSUNK
 1 Ask on WhatsApp
5
6AW-1475J-00
PIPE
 2 Ask on WhatsApp
5
6AW-41131-00-CA
MANIFOLD, EXT. 1
 1 Ask on WhatsApp
5
97575-06520
BOLT, WITH WASHER
 4 Ask on WhatsApp
6
6AW-1244H-00
HOSE 5
 1 Ask on WhatsApp
6
6AW-44366-00
DAMPER, WATER SEAL 2
 1 Ask on WhatsApp
6
93608-16M16
PIN, DOWEL
 2 Ask on WhatsApp
7
6AW-1243F-00
HOSE,3
 1 Ask on WhatsApp
7
6AW-41132-00-9S
MANIFOLD, EXHAUST
 1 Ask on WhatsApp
7
93608-12M05
PIN, DOWEL
 2 Ask on WhatsApp
8
6AW-41134-01
GASKET, EXHAUST MANIFOLD
 1 Ask on WhatsApp
8
6AW-45159-00
DAMPER
 1 Ask on WhatsApp
8
90465-11M59
CLAMP
 4 Ask on WhatsApp
9
90119-08102
BOLT, WITH WASHER
 2 Ask on WhatsApp
9
90119-08117
BOLT, WITH WASHER
 4
Price: 18.62 AED
In stock (63 pcs)
10
6AW-41138-00
SEAL, EXT. 1
 1 Ask on WhatsApp
10
97075-10045
BOLT
 6
Price: 63.31 AED
In stock (8 pcs)
11
6AW-41135-00
GASKET, EXHAUST MANIFOLD
 1 Ask on WhatsApp
11
92995-10600
WASHER
 6 Ask on WhatsApp
12
6AW-45181-00-9S
PLATE
 1 Ask on WhatsApp
12
90119-10040
BOLT, WITH WASHER
 8 Ask on WhatsApp
13
6AW-41136-00
GASKET, EXHAUST MANIFOLD 4
 1 Ask on WhatsApp
13
97575-10585
BOLT, WITH WASHER
 2 Ask on WhatsApp
14
6AW-14711-00-9S
MUFFLER 1
 1 Ask on WhatsApp
14
93608-16M16
PIN, DOWEL
 2 Ask on WhatsApp
15
6AW-42724-00
GROMMET
 1 Ask on WhatsApp
15
97575-08535
BOLT, WITH WASHER
 12 Ask on WhatsApp
16
6AW-11371-10
PRESSURE CONTROL VALVE ASSY
 1 Ask on WhatsApp
16
93606-19M23
PIN, DOWEL
 2 Ask on WhatsApp
17
6AW-45127-00
SEAL
 1 Ask on WhatsApp
17
93210-347A1
.O-RING
 1 Ask on WhatsApp
18
69J-45123-00
GASKET, MUFFLER
 1 Ask on WhatsApp
18
93210-28543
.O-RING
 1
Price: 2.98 AED
In stock (1 pcs)
19
69J-12233-00
PLATE, GUIDE STOPPER 1
 1 Ask on WhatsApp
19
6AW-45111-00-8D
CASING, UPPER
 1 Ask on WhatsApp
20
6AW-45113-00
GASKET, UPPER CASING
 1 Ask on WhatsApp
20
90387-06037
COLLAR
 1 Ask on WhatsApp
21
90119-10007
BOLT, WITH WASHER
 8
Price: 38.73 AED
In stock (6 pcs)
21
97095-06020
BOLT
 1 Ask on WhatsApp
22
92995-06600
WASHER
 1 Ask on WhatsApp
22
93608-16M16
PIN, DOWEL
 2 Ask on WhatsApp
23
69J-15316-00
DAMPER 1
 1 Ask on WhatsApp
23
6AW-11197-00
PLUG, BLIND
 1 Ask on WhatsApp
24
69J-45152-10
COVER, UPPER CASING 2
 1 Ask on WhatsApp
24
93210-19758
O-RING
 1
Price: 2.98 AED
In stock (5 pcs)
25
6AW-1132S-00
ANODE 7
 1 Ask on WhatsApp
25
97095-06014
BOLT
 2 Ask on WhatsApp
26
6AW-45318-00
BUSHING, DRIVE SHAFT
 1 Ask on WhatsApp
26
98780-05550
SCREW, FLAT HEAD
 1
Price: 5.21 AED
In stock (9 pcs)
27
6AW-1132T-00
ANODE 8
 1 Ask on WhatsApp
27
93420-38091
CIRCLIP
 1
Price: 27.56 AED
In stock (3 pcs)
28
6AW-1132U-00
ANODE 9
 1 Ask on WhatsApp
28
95895-06010
BOLT, FLANGE
 1 Ask on WhatsApp
