LF350CA-2011 – section 33 LOWER CASING & DRIVE 1 parts diagram

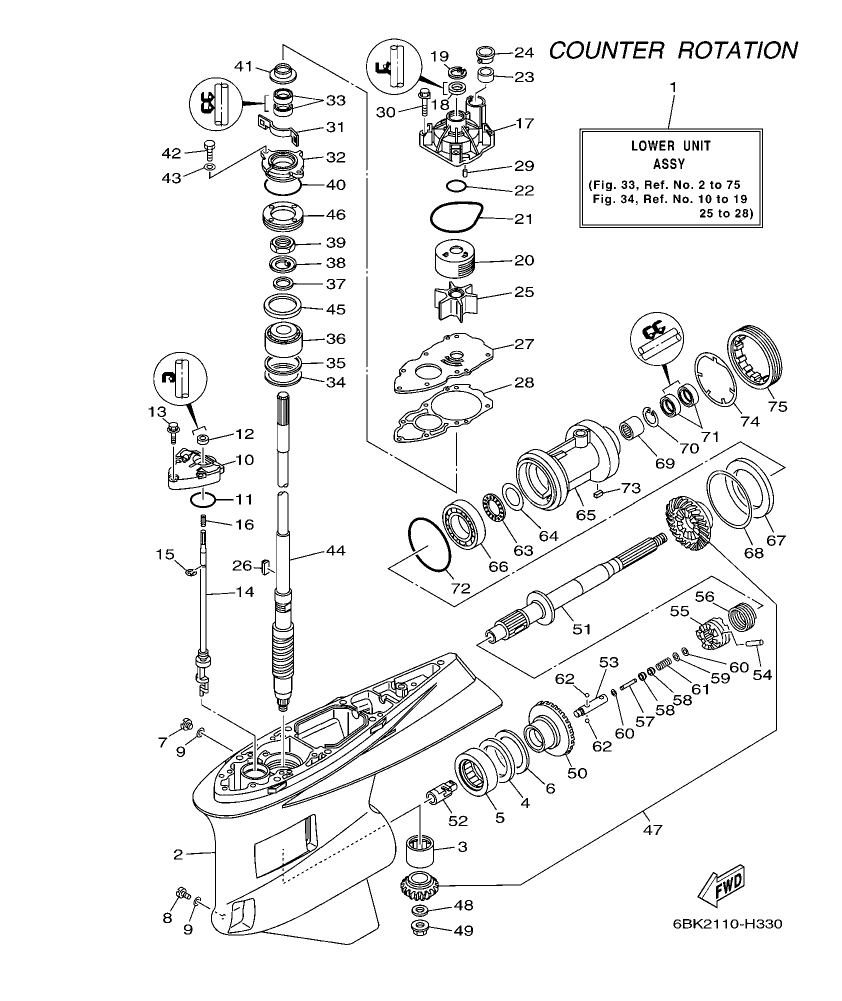

Diagram for section 33: LOWER CASING & DRIVE 1.

Ref Part No. Qty Buy
2
6AX-45300-20-8D
LOWER UNIT ASSY
 1 Ask on WhatsApp
2
6K1-45578-50
SHIM (T:0.40MM)
 1 Ask on WhatsApp
2
92995-08600
WASHER
 2 Ask on WhatsApp
2
93210-37160
O-RING
 1 Ask on WhatsApp
3
6AW-44365-00
DAMPER, WATER SEAL 1
 1 Ask on WhatsApp
3
6AW-45501-00
DRIVE SHAFT COMP.
 1 Ask on WhatsApp
3
6K1-45578-60
SHIM (T:0.50MM)
 1 Ask on WhatsApp
4
6AW-44312-00
COVER, WATER PUMP HOUSING
 1 Ask on WhatsApp
4
6AW-45311-01-8D
CASING, LOWER
 1 Ask on WhatsApp
4
6AX-45332-00
HOUSING, BEARING
 1 Ask on WhatsApp
5
6AW-44352-00
IMPELLER
 1 Ask on WhatsApp
5
6T5-45539-00
SPACER 2
 1 Ask on WhatsApp
5
93311-93590
BEARING
 1
Price: 604.10 AED
In stock (28 pcs)
5
93332-000A2
BEARING
 1 Ask on WhatsApp
6
6AW-44336-00
KEY
 1 Ask on WhatsApp
6
6AW-45244-00
NUT
 1 Ask on WhatsApp
6
6AW-45576-00
WASHER, THRUST 2
 1 Ask on WhatsApp
6
93340-67011
BEARING
 1
Price: 215.27 AED
In stock (68 pcs)
7
6AW-44323-00
OUTER PLATE, CARTRIDGE
 1 Ask on WhatsApp
7
6AW-45577-00
SHIM (T:0.10MM)
 1 Ask on WhatsApp
7
6AX-45550-00
GEAR SET
 1 Ask on WhatsApp
7
93390-00031
BEARING
 1
Price: 843.95 AED
In stock (57 pcs)
8
6AW-44315-00
GASKET, WATER PUMP
 1 Ask on WhatsApp
8
6AW-45567-00
SHIM (T:2.00MM)
 1 Ask on WhatsApp
8
6AW-45577-10
SHIM (T:0.12MM)
 1 Ask on WhatsApp
8
90201-18023
WASHER, PLATE
 1
Price: 9.68 AED
In stock (22 pcs)
9
6AW-45567-10
SHIM (T:2.03MM)
 1 Ask on WhatsApp
9
6AW-45577-20
SHIM (T:0.15MM)
 1 Ask on WhatsApp
9
90179-18009
NUT
 1
Price: 64.06 AED
In stock (14 pcs)
9
93606-12019
PIN, DOWEL
 2
Price: 6.70 AED
In stock (378 pcs)
10
6AW-45567-20
SHIM (T:2.06MM)
 1 Ask on WhatsApp
10
6AW-45577-30
SHIM (T:0.18MM)
 1 Ask on WhatsApp
10
6AX-45560-00
GEAR 1 (26T)
 1 Ask on WhatsApp
10
90119-08M14
BOLT, WITH WASHER
 4 Ask on WhatsApp
11
6AW-45567-30
SHIM (T:2.09MM)
 1 Ask on WhatsApp
11
6AW-45577-40
SHIM (T:0.30MM)
 1 Ask on WhatsApp
11
6AW-45723-00
PLATE, SEAL
 1 Ask on WhatsApp
11
6AX-45611-00
SHAFT, PROPELLER
 1 Ask on WhatsApp
12
6AW-45335-00-CA
HOUSING, OIL SEAL
 1 Ask on WhatsApp
12
6AW-45567-40
SHIM (T:2.12MM)
 1 Ask on WhatsApp
12
6AW-45577-50
SHIM (T:0.40MM)
 1 Ask on WhatsApp
12
6AX-45641-00
SHIFTER
 1 Ask on WhatsApp
13
61A-45634-01
SLIDE, SHIFT
 1 Ask on WhatsApp
13
6AW-45567-50
SHIM (T:2.15MM)
 1 Ask on WhatsApp
13
6AW-45577-60
SHIM (T:0.50MM)
 1 Ask on WhatsApp
13
93101-28004
OIL SEAL
 2 Ask on WhatsApp
14
6AW-45632-00
PIN, CROSS
 1 Ask on WhatsApp
14
90201-68008
WASHER, PLATE
 1
Price: 8.94 AED
In stock (4 pcs)
14
90340-08002
PLUG, STRAIGHT SCREW
 1
Price: 25.33 AED
In stock (299 pcs)
14
93311-63591
BEARING
 1
Price: 173.56 AED
In stock (86 pcs)
15
688-45341-10
PLUG, DRAIN
 1
Price: 23.84 AED
In stock (300 pcs)
15
6AW-45587-00
SHIM (T:0.10MM)
 1 Ask on WhatsApp
15
6AW-45631-00
CLUTCH, DOG
 1 Ask on WhatsApp
15
99009-47500
CIRCLIP
 1
Price: 5.96 AED
In stock (12 pcs)
16
6AW-45587-10
SHIM (T:0.12MM)
 1 Ask on WhatsApp
16
6AW-45633-00
RING, CROSS PIN
 1 Ask on WhatsApp
16
90430-08020
GASKET
 2 Ask on WhatsApp
16
93101-35018
OIL SEAL
 2 Ask on WhatsApp
17
6AW-45321-00
PLATE
 1 Ask on WhatsApp
17
6AW-45587-20
SHIM (T:0.15MM)
 1 Ask on WhatsApp
17
6H1-45668-00
SHAFT, FREE 1
 1 Ask on WhatsApp
17
93211-10232
O-RING
 1
Price: 14.15 AED
In stock (61 pcs)
18
61A-45635-00
PLUNGER, SHIFT
 2 Ask on WhatsApp
18
6AW-45587-30
SHIM (T:0.18MM)
 1 Ask on WhatsApp
18
90282-05008
KEY, STRAIGHT
 1
Price: 8.94 AED
In stock (5 pcs)
18
93210-48214
O-RING
 1
Price: 14.15 AED
In stock (62 pcs)
19
6AW-45383-00
WASHER, CLAW
 1 Ask on WhatsApp
19
6AW-45587-40
SHIM (T:0.30MM)
 1 Ask on WhatsApp
19
90201-02M00
WASHER, PLATE
 1 Ask on WhatsApp
19
93101-12M70
OIL SEAL
 1 Ask on WhatsApp
20
6AW-45384-00
NUT
 1 Ask on WhatsApp
20
6AW-45587-50
SHIM (T:0.40MM)
 1 Ask on WhatsApp
20
90119-08M26
BOLT, WITH WASHER
 3 Ask on WhatsApp
20
90183-02M03
NUT, SPRING
 2 Ask on WhatsApp
21
6AW-45587-60
SHIM (T:0.50MM)
 1 Ask on WhatsApp
21
6AX-44150-00
SHIFT CAM ASSY
 1 Ask on WhatsApp
21
90501-10M77
SPRING, COMPRESSION
 1 Ask on WhatsApp
22
93399-99962
BEARING
 1
Price: 645.07 AED
In stock (57 pcs)
22
93501-04011
BALL
 2
Price: 2.98 AED
In stock (26 pcs)
22
99002-10600
CLIP
 1 Ask on WhatsApp
23
90201-301U7
WASHER, PLATE
 1 Ask on WhatsApp
23
90501-127J4
SPRING, COMPRESSION
 1 Ask on WhatsApp
23
93341-440U5
BEARING
 1 Ask on WhatsApp
24
6AW-44311-00
HOUSING, WATER PUMP
 1 Ask on WhatsApp
24
6K1-45578-01
SHIM (T:0.10MM)
 1 Ask on WhatsApp
24
90214-30003
WASHER, CLAW
 1
Price: 11.17 AED
In stock (40 pcs)
25
6K1-45578-10
SHIM (T:0.12MM)
 1 Ask on WhatsApp
25
90170-30M18
NUT
 1 Ask on WhatsApp
25
93109-24001
OIL SEAL
 1
Price: 34.26 AED
In stock (1 pcs)
26
6K1-45578-20
SHIM (T:0.15MM)
 1 Ask on WhatsApp
26
93210-69MG6
O-RING
 1 Ask on WhatsApp
26
93420-35085
CIRCLIP
 1 Ask on WhatsApp
27
6AW-44322-00
INSERT, CARTRIDGE
 1 Ask on WhatsApp
27
6AW-45344-00
COVER, OIL SEAL
 1 Ask on WhatsApp
27
6K1-45578-30
SHIM (T:0.18MM)
 1 Ask on WhatsApp
28
6K1-45578-40
SHIM (T:0.30MM)
 1 Ask on WhatsApp
28
93210-94003
O-RING
 1
Price: 17.13 AED
In stock (100 pcs)
28
97095-08020
BOLT
 2
Price: 5.15 AED
In stock (1 pcs)
