F15B'04

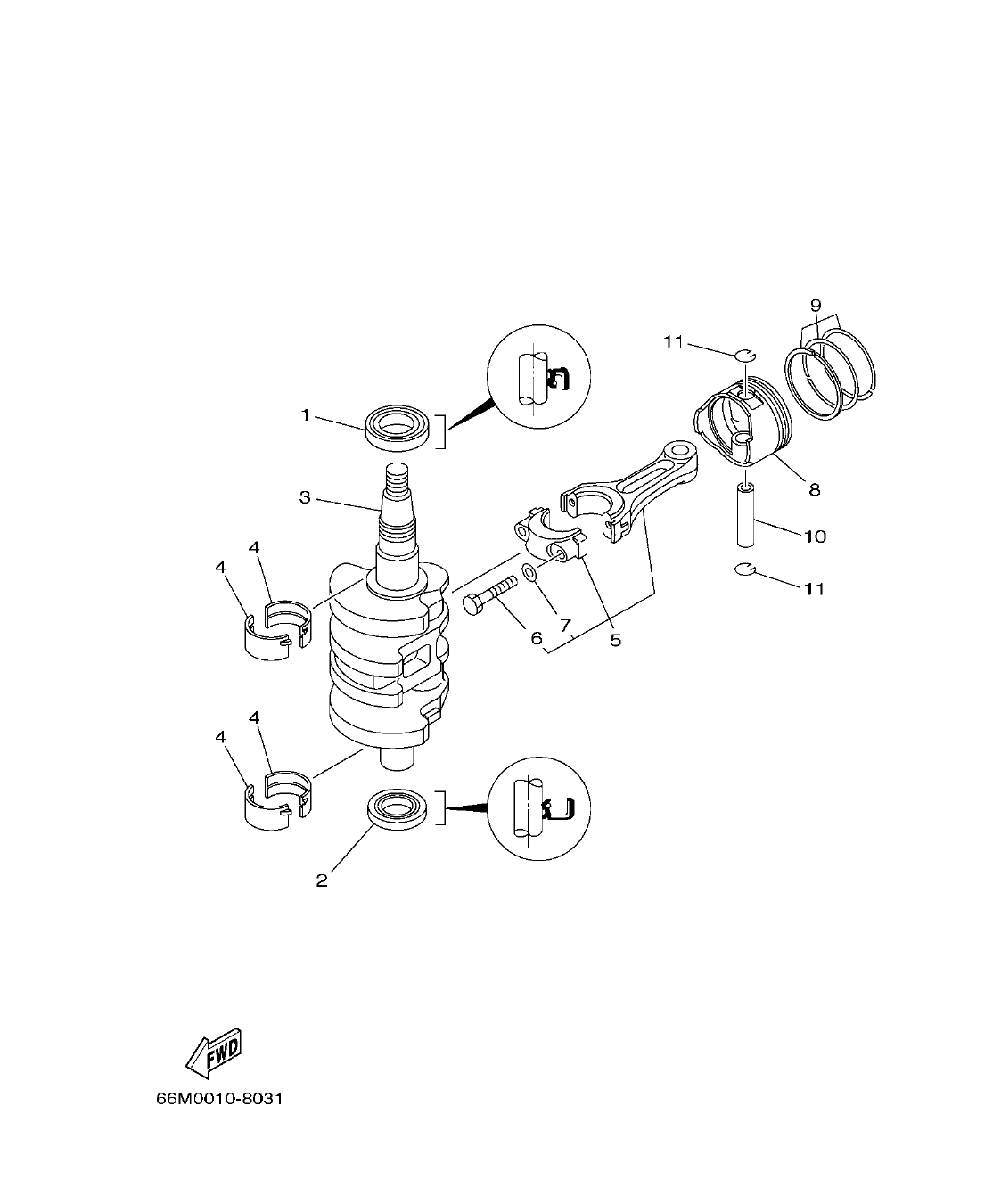

Section 3: CRANKSHAFT & PISTON CIGUENAL & PISTON (v2)
Model code: 6D41
Parts list
Section 3
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
93102-35M51
OIL SEAL 1
|
1 | |
| 2 |
93102-25M52
OIL SEAL 1
|
1 | |
| 3 |
66M-11411-00
CRANKSHAFT 1
|
1 | |
| 4 |
66M-11416-00
PLANE BEARING, CRANKSHAFT 1 4
UR BROWN
|
4 | |
| 4 |
66M-11416-10
PLANE BEARING, CRANKSHAFT 1 4
UR BLACK
|
4 | |
| 4 |
66M-11416-20
PLANE BEARING, CRANKSHAFT 1 4
UR BLUE
|
4 | |
| 5 |
66M-11650-00
CONNECTING ROD ASSY 2
|
2 |
221.23 AED
Check price & stock on WhatsApp
|
| 6 |
66M-11654-00
.BOLT, CONNECTING ROD 2
|
2 | |
| 7 |
90201-07M01
.WASHER, PLATE 2
|
2 | |
| 8 |
66M-11631-00-96
PISTON (STD) 2
|
2 | |
| 8 |
66M-11635-00
PISTON (0.25MM O/S) 2
AP
|
2 |
78.21 AED
Check price & stock on WhatsApp
|
| 8 |
66M-11636-00
PISTON (0.50MM O/S) 2
AP
|
2 | |
| 9 |
66N-11603-00
PISTON RING SET (STD) 2
|
2 | |
| 9 |
66N-11604-00
PISTON RING SET (0.25MM O/S) 2
AP
|
2 | |
| 9 |
66N-11605-00
PISTON RING SET (0.50MM O/S) 2
AP
|
2 | |
| 10 |
634-11633-00
PIN, PISTON 2
|
2 | |
| 11 |
93450-15023
CIRCLIP 4
|
4 |
