F15B'04
Section 23: LOWER CASING & DRIVE 2 IMPULSOR E INFERIOR 2 (v2)
Model code: 6D41

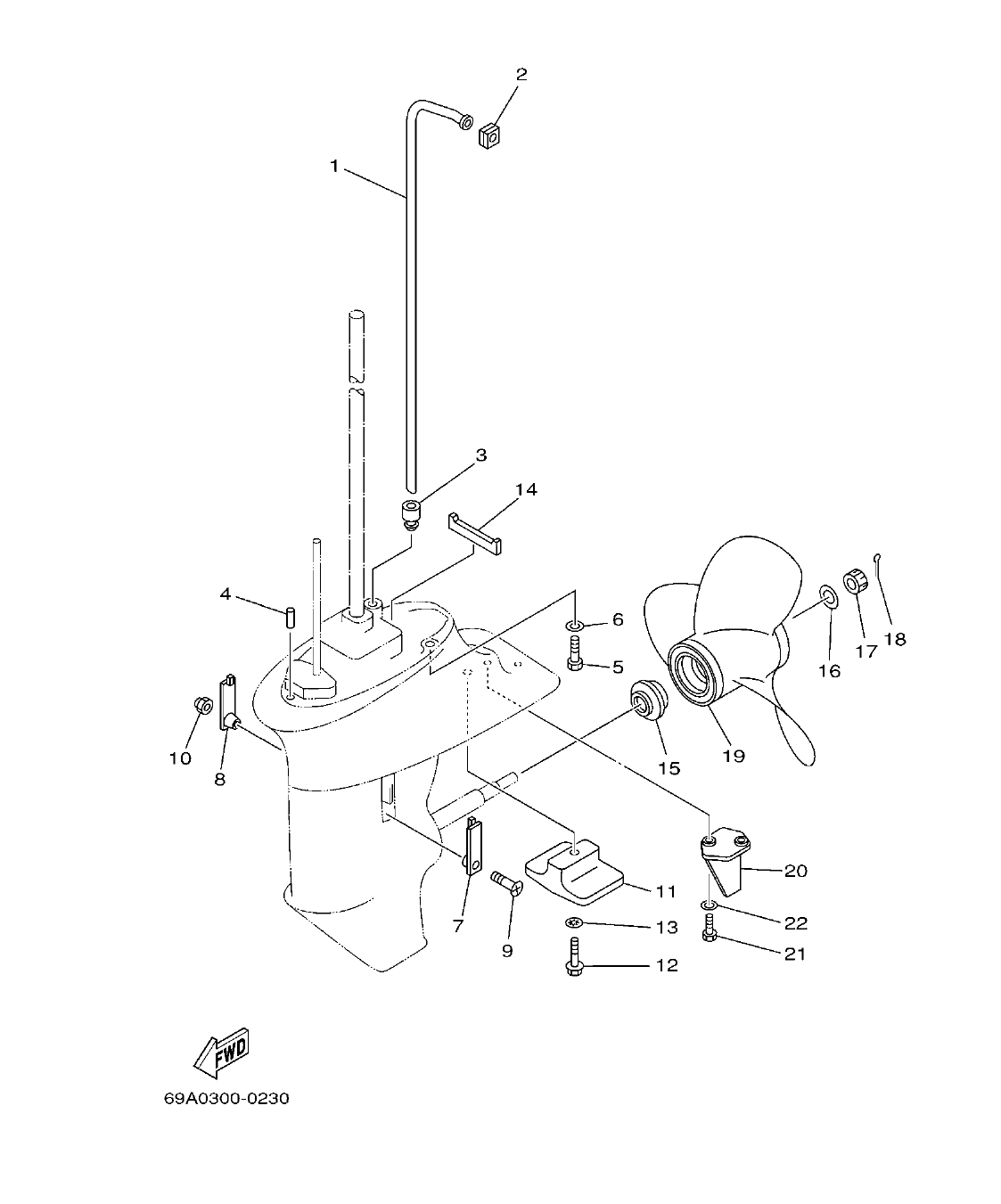

Section 23 β LOWER CASING & DRIVE 2 IMPULSOR E INFERIOR 2
F15B'04
100%
Diagram image
Open full size
Parts list
Section 23
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
66M-44361-10
TUBE, WATER 1
L
|
1 | |
| 1 |
66M-44361-00
TUBE, WATER
S
|
1 | |
| 2 |
63V-44365-10
DAMPER, WATER SEAL 1
|
1 | |
| 3 |
63V-44368-00
RUBBER, WATER SEAL 4 1
|
1 | |
| 4 |
93604-12M07
PIN, DOWEL 2
|
2 | |
| 5 |
97075-08030
BOLT 4
|
4 | |
| 6 |
92995-08600
WASHER 4
|
4 | |
| 7 |
6G1-45214-00
COVER, WATER INLET 1
|
1 |
6.70 AED
Check price & stock on WhatsApp
|
| 8 |
63V-45215-00
COVER, WATER INLET 1
|
1 | |
| 9 |
90152-05M04
SCREW, COUNTERSUNK 1
|
1 | |
| 10 |
90185-05002
NUT, SELF-LOCKING 1
|
1 | |
| 11 |
61N-45251-01
ANODE 1
|
1 | |
| 12 |
95895-06030
BOLT, FLANGE 1
|
1 | |
| 13 |
92990-06300
WASHER, INTERNAL TOOTH 1
|
1 | |
| 14 |
63V-45375-00
DAMPER, SEAL 1
|
1 | |
| 15 |
6E7-45987-01
SPACER 1
|
1 | |
| 16 |
90201-10M01
WASHER, PLATE 1
|
1 | |
| 17 |
90171-10M01
NUT, CASTLE 1
|
1 | |
| 18 |
91490-30020
PIN, COTTER 1
|
1 | |
| 19 |
63V-45943-00-EL
PROPELLER (3X9-1/4"X11"-J) 1
UR
|
1 | |
| 19 |
63V-45945-00-EL
PROPELLER (3X9-1/4"X9"-J) 1
UR
|
1 | |
| 19 |
63V-45947-00-EL
PROPELLER (3X9-1/4"X8"-J) 1
UR
|
1 | |
| 19 |
63V-45952-00-EL
PROPELLER (3X9-1/4"X10"-J) 1
UR
|
1 | |
| 19 |
683-45941-00-EL
PROPELLER (3X9-1/4"X12"-J) 1
UR
|
1 | |
| 19 |
683-45943-00-EL
PROPELLER (3X9-1/4"X10-1/2"-J) 1
UR
|
1 | |
| 19 |
683-45945-00-EL
PROPELLER (3X9-1/4"X9"-J) 1
UR
|
1 | |
| 19 |
683-45952-00-EL
PROPELLER (3X9-1/4"X9-3/4"-J) 1
UR
|
1 | |
| 20 |
66M-45371-00
TAB-TRIM
S
|
1 | |
| 21 |
97095-06016
BOLT
S
|
2 | |
| 22 |
92995-06600
WASHER
S
|
2 |
