F15B'04

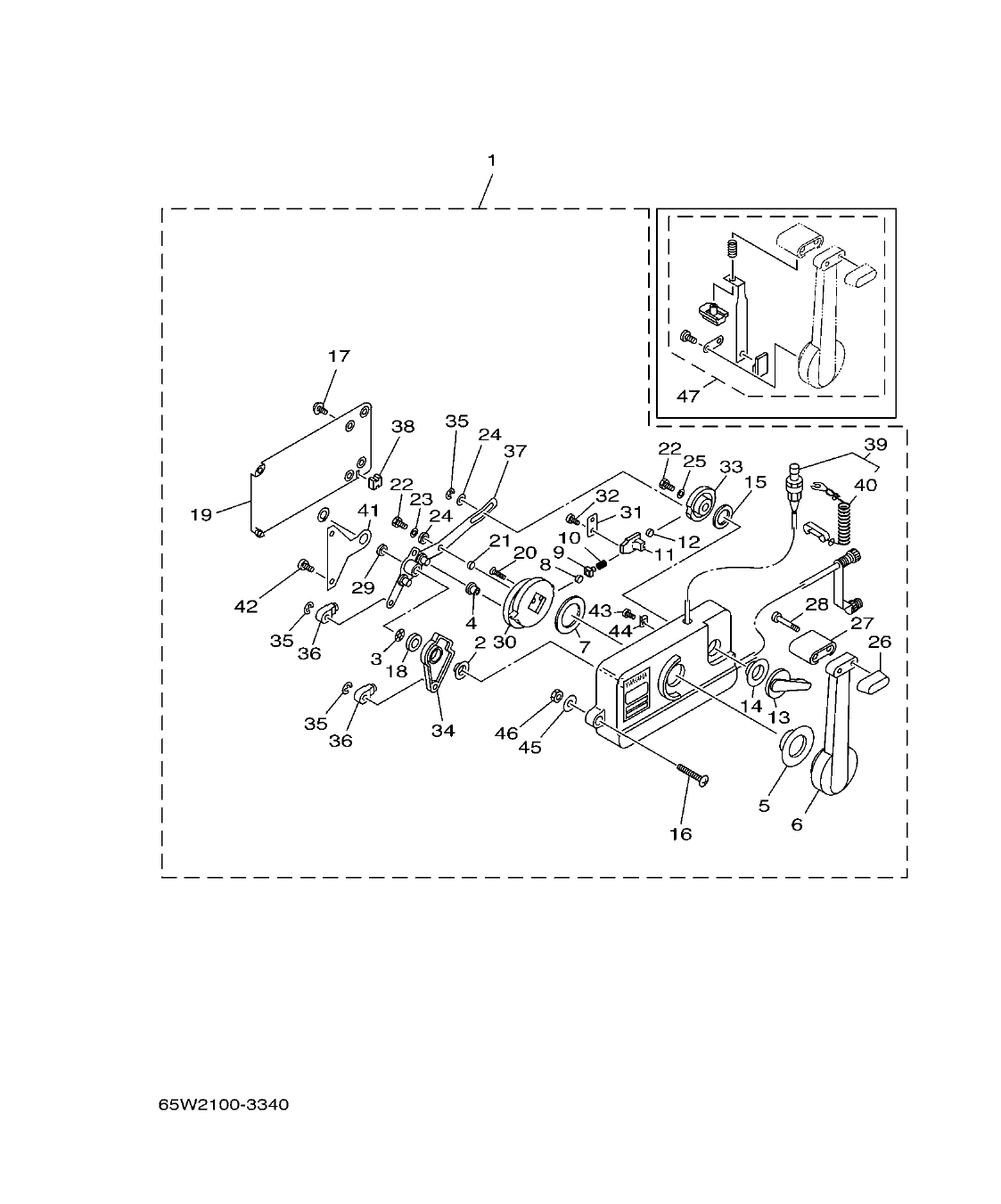

Section 27: REMOTE CONTROL ASSY CONTROL REMOTO COMPL (v2)
Model code: 6D41
Parts list
Section 27
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
701-48140-E0
REMOTE CONTROL ASSY (LEFT)
AP
|
1 | |
| 2 |
701-48235-00
.BUSHING
|
1 | |
| 3 |
701-48197-10
.WASHER, WAVE
|
1 | |
| 4 |
701-48252-00
.ROLLER, CAM
|
1 | |
| 5 |
701-48234-00
.BUSHING 1
|
1 | |
| 6 |
701-48221-00
.LEVER, CONTROL
|
1 | |
| 7 |
701-48196-11
.WASHER, WAVE
|
1 | |
| 8 |
701-48236-00
.ROLLER, DETENT
|
1 | |
| 9 |
702-48237-00
.ADAPTOR
|
1 | |
| 10 |
702-48238-00
.SPRING, DETENT
|
1 | |
| 11 |
701-48249-00
.ADAPTOR, SPRING
|
1 | |
| 12 |
701-48248-00
.ROLLER, FREE ACCEL.
|
1 | |
| 13 |
701-48152-20
.KNOB, FREE ACCEL.
LEFT
|
1 | |
| 14 |
701-48243-00
.BUSHING
|
1 | |
| 15 |
701-48198-10
.WASHER, WAVE
|
1 | |
| 16 |
701-48281-10
.SCREW
|
3 | |
| 17 |
701-48289-00
.SCREW
|
4 | |
| 18 |
701-48268-00
.SPACER
|
1 | |
| 19 |
701-48213-00
.BACK PLATE 2
|
1 | |
| 20 |
92780-06025
.SCREW, FLAT HEAD
|
2 | |
| 21 |
701-48255-00
.COLLAR
|
1 | |
| 22 |
97390-06018
.BOLT
|
2 | |
| 23 |
702-48288-00
.WASHER, PLAIN
|
1 | |
| 24 |
701-48246-00
.SPACER
|
2 | |
| 25 |
92990-06300
.WASHER, INTERNAL TOOTH
|
1 | |
| 26 |
701-48229-00
.GRIP, CONTROL LEVER
|
1 | |
| 27 |
701-48222-00
.GRIP, CONTROL LEVER
|
1 | |
| 28 |
701-48282-00
.SCREW
|
2 | |
| 29 |
701-48266-00
.SPACER
|
1 | |
| 30 |
701-48232-00
.GEAR
|
1 | |
| 31 |
701-48189-11
.RETAINER
|
1 | |
| 32 |
98580-05010
.SCREW, PAN HEAD
|
2 | |
| 33 |
701-48153-12
.SHAFT, FREE ACCEL.
|
1 | |
| 34 |
701-48271-10
.ARM, SHIFT
LEFT
|
1 | |
| 35 |
93430-06024
.CIRCLIP
|
3 | |
| 36 |
703-48345-01
.CABLE END, REMOTE CONTROL 2
|
2 | |
| 37 |
701-48261-20
.ARM, THROTTLE
|
1 | |
| 38 |
701-48358-00
.ANCHOR, CABLE
|
1 | |
| 39 |
701-82575-53
.ENGINE STOP SWITCH ASSY
|
1 | |
| 40 |
682-82556-00
..STOPPER
|
1 | |
| 41 |
701-48133-00
.PLATE, LINK
|
1 | |
| 42 |
98580-05020
.SCREW, PAN HEAD
|
2 | |
| 43 |
701-48283-00
.SCREW
|
1 | |
| 44 |
701-82594-00
.CLAMP
|
1 | |
| 45 |
701-48287-00
.WASHER
|
3 | |
| 46 |
95380-06600
.NUT, HEXAGON
|
3 | |
| 47 |
701-48280-00
NEUTRAL LOCK KIT
|
1 |
