F15B'04

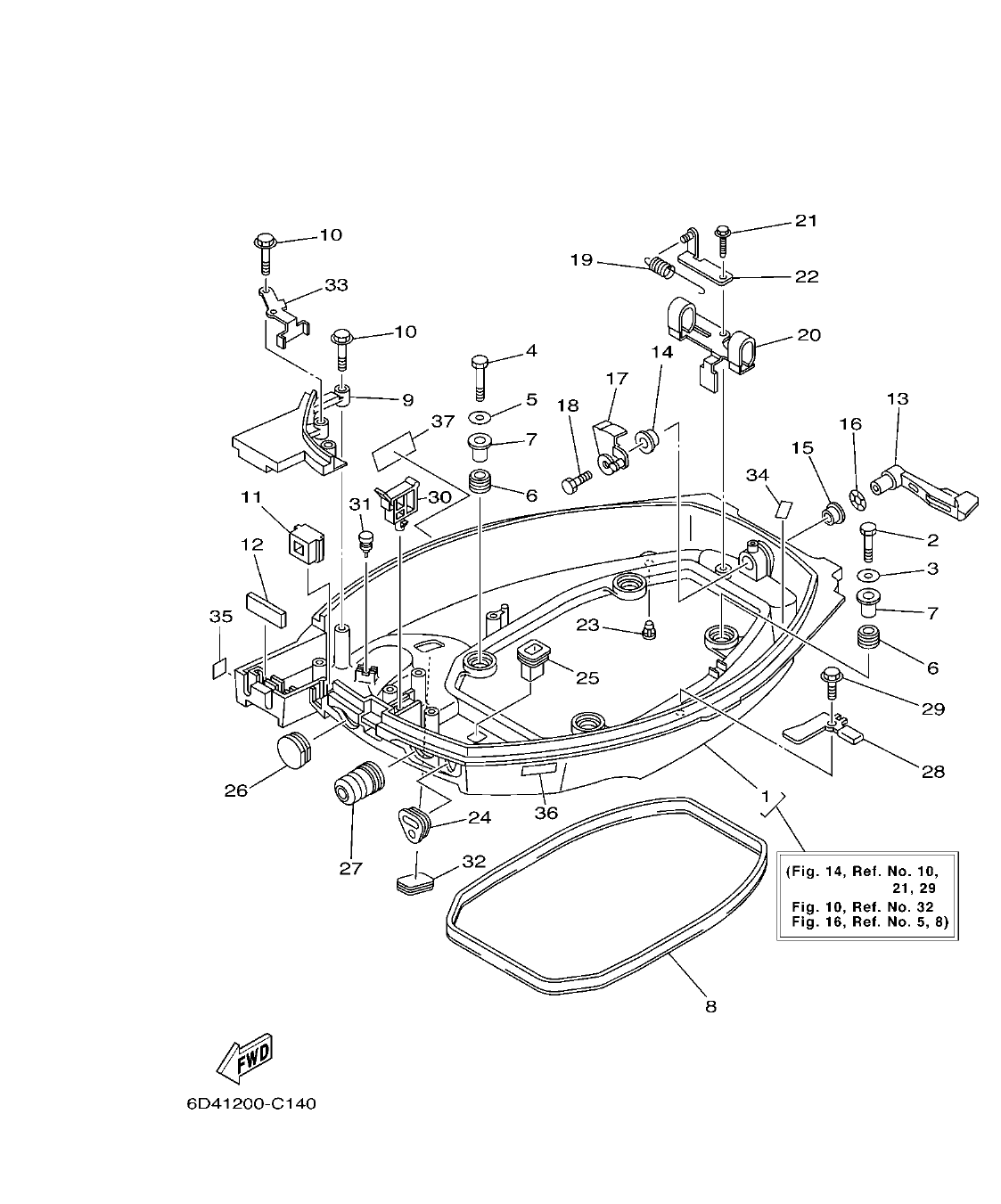

Section 14: BOTTOM COWLING CUBIERTA INFERIOR (v2)
Model code: 6D41
Parts list
Section 14
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
66M-42710-04-4D
BOTTOM COWLING ASSY 1
WITH TAPPING BOLT
|
1 | |
| 2 |
97095-06035
BOLT 2
|
2 | |
| 3 |
92995-06600
WASHER 2
|
2 | |
| 4 |
97095-06025
BOLT 2
|
2 | |
| 5 |
92995-06600
WASHER 2
|
2 | |
| 6 |
90480-14006
GROMMET 4
|
4 | |
| 7 |
90387-06034
COLLAR 4
|
4 | |
| 8 |
66M-42716-00
RUBBER, SEAL 1 1
|
1 | |
| 9 |
66M-42738-00-4D
PLATE, FITTING 1
|
1 | |
| 10 |
90109-06M82
BOLT 3
|
3 | |
| 11 |
6D4-42725-00
GROMMET 1
|
1 | |
| 12 |
62Y-42727-00
GROMMET
|
1 | |
| 12 |
65W-42727-00
GROMMET
|
1 | |
| 13 |
6D4-42815-00-4D
LEVER, CLAMP 1
|
1 | |
| 14 |
90386-12M37
BUSH 1
|
1 | |
| 15 |
90386-12MA2
BUSH 1
|
1 | |
| 16 |
90206-12052
WASHER, WAVE 1
|
1 | |
| 17 |
6D4-42816-00
LEVER, CLAMP 1
|
1 | |
| 18 |
97095-06012
BOLT 1
|
1 | |
| 19 |
90506-18010
SPRING, TENSION 1
|
1 | |
| 20 |
6D4-42766-00
BRACKET 2 1
|
1 | |
| 21 |
90109-06M81
BOLT 1
|
1 | |
| 22 |
6D4-43144-00
HOOK, SPRING 1
|
1 | |
| 23 |
6H3-44391-01
NIPPLE, HOSE 1
|
1 | |
| 24 |
65W-26326-10
GROMMET
|
1 | |
| 24 |
66M-26326-00
GROMMET
|
1 | |
| 25 |
682-42727-00
GROMMET 1
|
1 | |
| 26 |
682-42724-00
GROMMET
|
1 | |
| 26 |
6E7-42724-10
GROMMET
|
1 | |
| 27 |
65W-42726-00
GROMMET
|
1 | |
| 27 |
65W-42726-10
GROMMET
|
1 | |
| 28 |
66M-42743-00
BRACKET 2
|
2 | |
| 29 |
90109-06M86
BOLT 2
|
2 | |
| 30 |
90465-25M57
CLAMP 1
|
1 | |
| 31 |
689-85547-00
DAMPER 1
|
1 | |
| 32 |
6H4-42726-00
GROMMET 1
|
1 | |
| 33 |
6D4-26393-00
HOLDER 1
|
1 | |
| 34 |
62Y-82377-00
LABEL 1
|
1 | |
| 35 |
6A1-28176-00
LABEL, CAUTION
FOR CAR
|
1 | |
| 36 |
6E3-8257H-00
PLATE, MARK
FOR CAR
|
1 | |
| 37 |
6G8-13444-51
MARK 1
|
1 |
