F15B'04

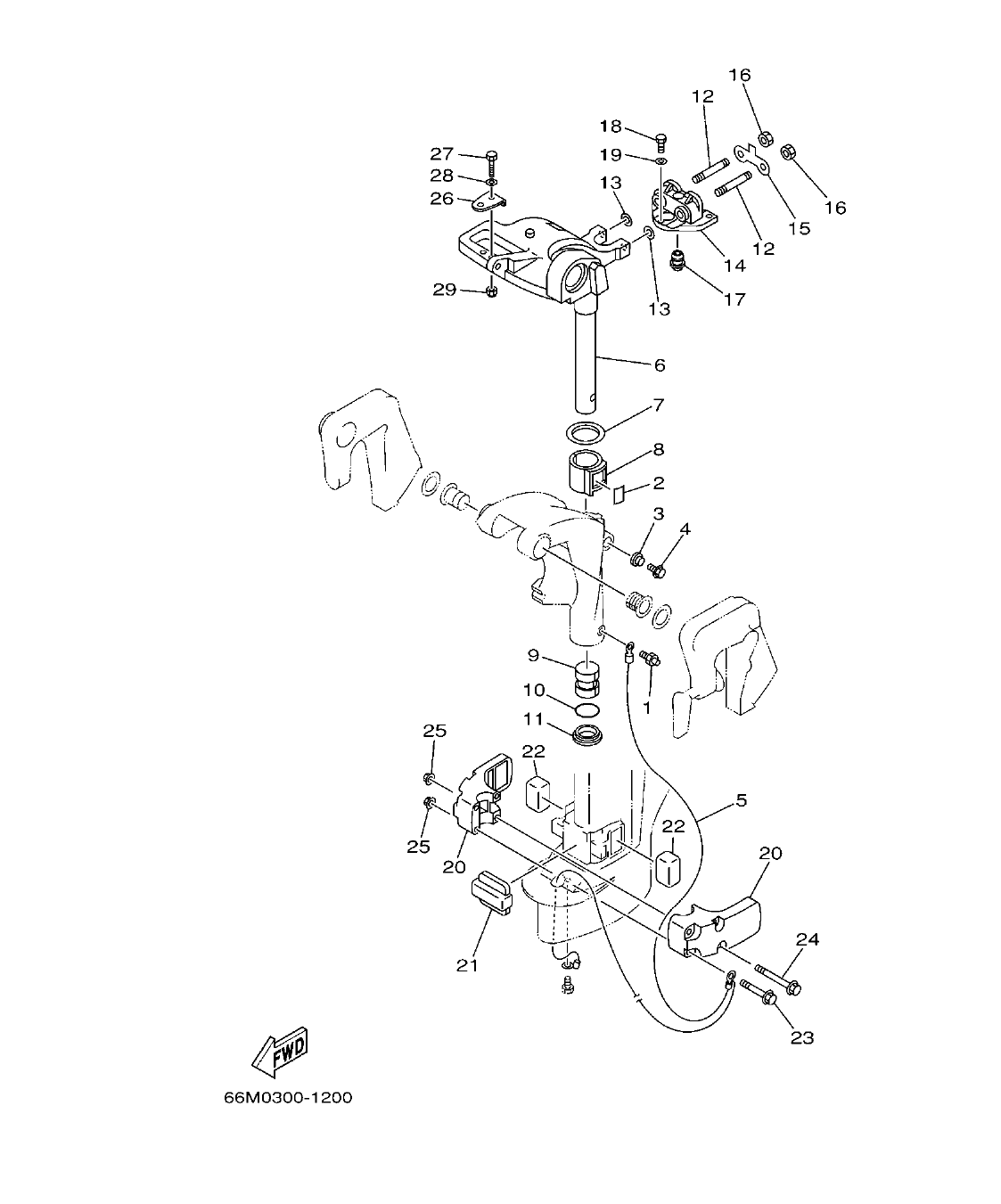

Section 19: BRACKET 2 SOPORTE 2 (v2)
Model code: 6D41
Parts list
Section 19
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
93700-06M03
NIPPLE, GREASE 1
|
1 | |
| 2 |
63V-42528-00
PLATE, FRICTION 1
|
1 | |
| 3 |
689-43373-01
SEAL, DAMPER 1
|
1 | |
| 4 |
90105-06M07
BOLT, FLANGE 1
|
1 | |
| 5 |
66M-82127-00
WIRE, LEAD 2 1
|
1 | |
| 6 |
66M-42511-01-4D
BRACKET, STEERING
S
|
1 | |
| 6 |
66M-42511-11-4D
BRACKET, STEERING 1
L
|
1 | |
| 7 |
90209-40008
WASHER 1
|
1 | |
| 8 |
65F-42537-00
BUSHING, PIVOT SHAFT 1
|
1 | |
| 9 |
90386-30048
BUSH 1
|
1 |
19.37 AED
Check price & stock on WhatsApp
|
| 10 |
93210-29M94
O-RING 1
|
1 | |
| 11 |
90386-30M60
BUSH 1
|
1 | |
| 12 |
90116-08M54
BOLT, STUD 2
|
2 | |
| 13 |
90201-08M06
WASHER, PLATE 2
|
2 | |
| 14 |
66M-44514-00-4D
MOUNT DAMPER, UPPER SIDE 1
|
1 | |
| 15 |
66M-44526-00
PLATE 1
|
1 | |
| 16 |
95380-08600
NUT 2
|
2 |
13.41 AED
Check price & stock on WhatsApp
|
| 17 |
66M-44366-00
DAMPER, WATER SEAL 1
|
1 | |
| 18 |
97075-06025
BOLT 3
|
3 | |
| 19 |
92995-06600
WASHER 3
|
3 | |
| 20 |
66M-44551-00-4D
HOUSING, LOWER MOUNT RUBBER 2
|
2 | |
| 21 |
66M-44557-00
MOUNT DAMPER, LOWER FRONT 1
|
1 | |
| 22 |
682-44555-30
MOUNT DAMPER, LOWER SIDE 2
|
2 | |
| 23 |
90119-08M45
BOLT, WITH WASHER 2
|
2 | |
| 24 |
90119-08M46
BOLT, WITH WASHER 2
|
2 | |
| 25 |
90179-08M34
NUT 4
|
4 | |
| 26 |
63V-48511-01
HOOK, STEERING
|
1 | |
| 27 |
97075-08035
BOLT
|
1 | |
| 28 |
92995-08600
WASHER
|
1 | |
| 29 |
90185-08057
NUT, SELF-LOCKING
|
1 |
