F15B'04

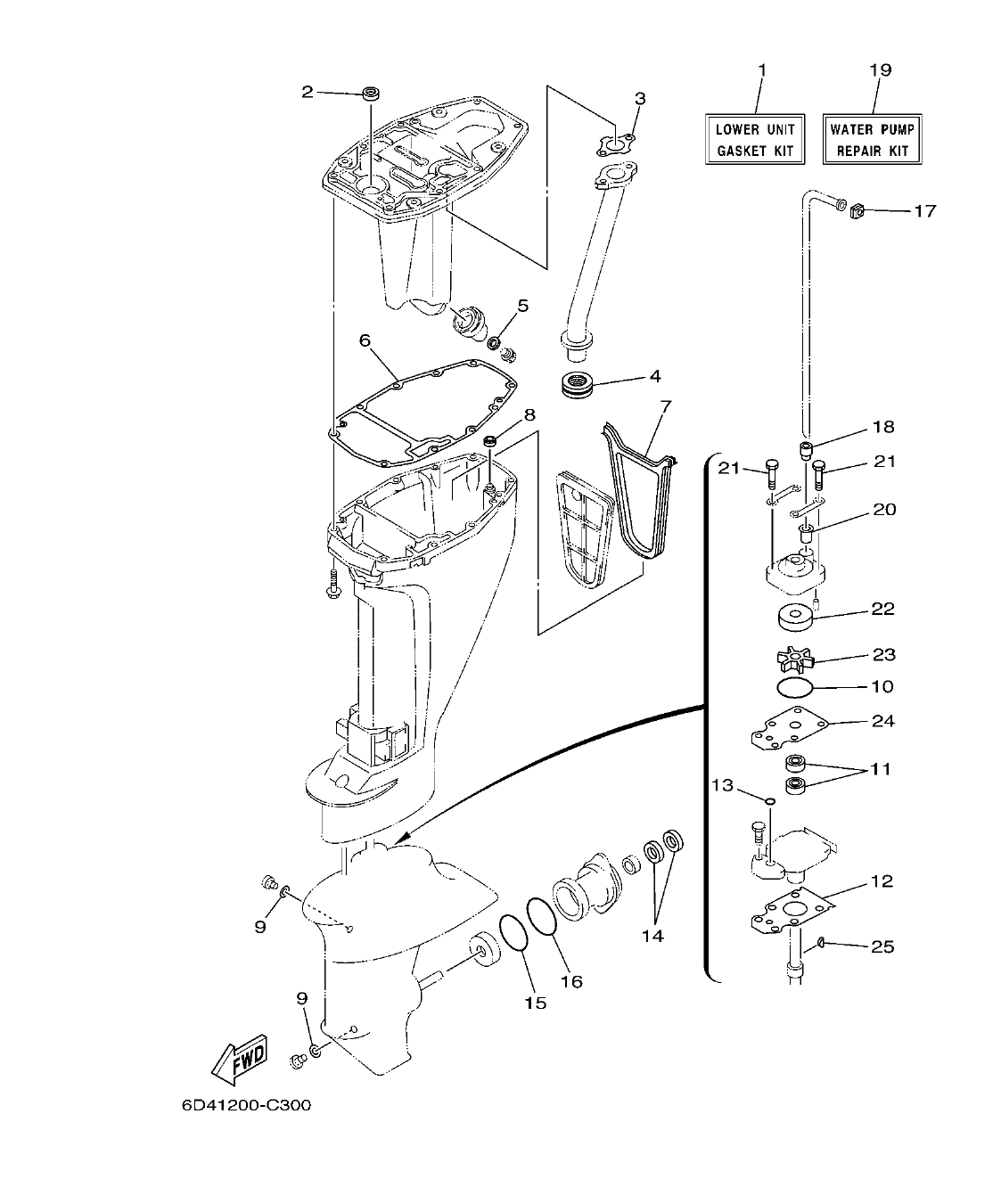

Section 30: REPAIR KIT 3 ESTUCHE REPARATION 3 (v2)
Model code: 6D41
Parts list
Section 30
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6D4-W0001-20
LOWER UNIT GASKET KIT 1
|
1 | |
| 2 |
93101-12M63
.OIL SEAL 1
|
1 | |
| 3 |
66M-41133-01
.GASKET, EXHAUST MANIFOLD 1 1
|
1 | |
| 4 |
6D4-41138-00
.SEAL, EXT. 1 1
|
1 | |
| 5 |
90430-14M09
.GASKET 1
|
1 | |
| 6 |
66M-45113-00
.GASKET, UPPER CASING 1
|
1 | |
| 7 |
66M-45115-00
.GASKET, UPPER CASING 1
|
1 | |
| 8 |
66M-45128-00
.SEAL 2 1
|
1 | |
| 9 |
90430-08020
.GASKET 2
|
2 | |
| 10 |
93210-44398
.O-RING 1
|
1 | |
| 11 |
93101-20001
.OIL SEAL 2
|
2 | |
| 12 |
63V-45315-A0
.PACKING, LOWER CASING 1
|
1 | |
| 13 |
93210-06ME6
.O-RING 1
|
1 | |
| 14 |
93101-17054
.OIL SEAL 2
|
2 | |
| 15 |
93210-57M09
.O-RING 1
|
1 | |
| 16 |
93210-56M80
.O-RING 1
|
1 | |
| 17 |
63V-44365-10
.DAMPER, WATER SEAL 1
|
1 | |
| 18 |
63V-44368-00
.RUBBER, WATER SEAL 4 1
|
1 | |
| 19 |
6D4-W0078-00
WATER PUMP REPAIR KIT 1
|
1 | |
| 20 |
647-44366-00
.DAMPER, WATER SEAL 1
|
1 | |
| 21 |
97080-08045
.BOLT 4
|
4 |
10.43 AED
Check price & stock on WhatsApp
|
| 22 |
63V-44322-40
.INSERT, CARTRIDGE 1
|
1 | |
| 23 |
63V-44352-01
.IMPELLER 1
|
1 | |
| 24 |
63V-44323-40
.OUTER PLATE, CARTRIDGE 1
|
1 | |
| 25 |
664-44338-00
.KEY, WOODRUFF 1
|
1 |
