F15B'04

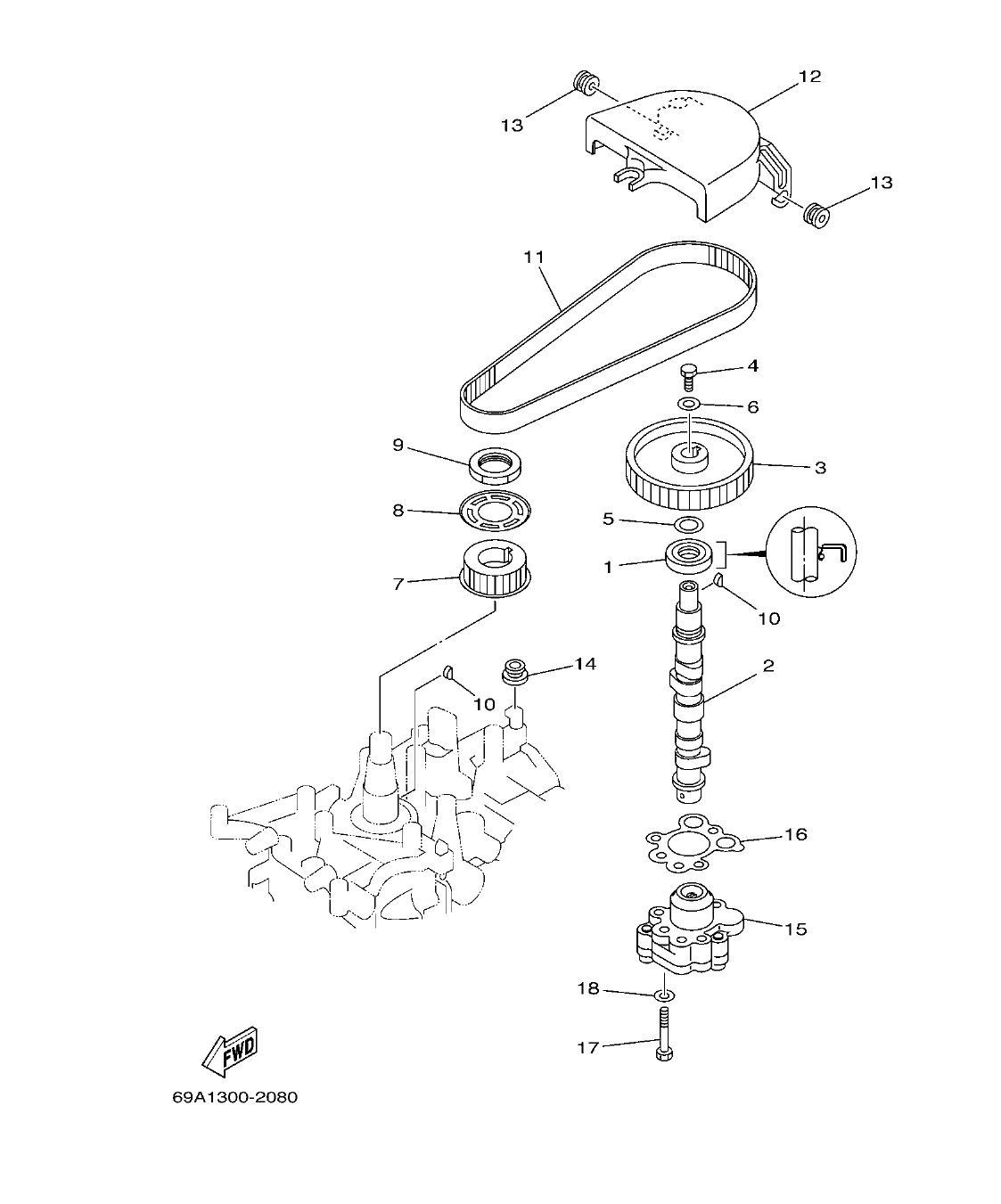

Section 8: OIL PUMP BOMBA DE ACEITE (v2)
Model code: 6D41
Parts list
Section 8
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
93102-18M21
OIL SEAL 1
|
1 | |
| 2 |
66M-12170-00
CAMSHAFT ASSY 1 1
|
1 | |
| 3 |
66M-11537-00-94
GEAR, DRIVEN 1
|
1 | |
| 4 |
97013-06016
BOLT 1
|
1 | |
| 5 |
90201-13201
WASHER, PLATE 1
|
1 | |
| 6 |
90201-06M94
WASHER, PLATE 1
|
1 | |
| 7 |
66M-11536-10
GEAR, DRIVE 1
|
1 | |
| 8 |
66M-11557-00
WASHER 1 1
|
1 | |
| 9 |
90170-28M37
NUT 1
|
1 | |
| 10 |
90280-03M01
KEY, WOODRUFF 2
|
2 | |
| 11 |
66M-46241-00
V-BELT 1
|
1 | |
| 12 |
66M-46297-00
COVER, DUST 1
|
1 | |
| 13 |
90480-10M16
GROMMET 2
|
2 | |
| 14 |
90480-12072
GROMMET 1
|
1 | |
| 15 |
66M-13300-10
OIL PUMP ASSY 1
|
1 | |
| 16 |
66M-13329-10
GASKET, PUMP COVER 1
|
1 | |
| 17 |
97095-06035
BOLT 3
|
3 | |
| 18 |
92995-06600
WASHER 3
|
3 |
