F15B'04

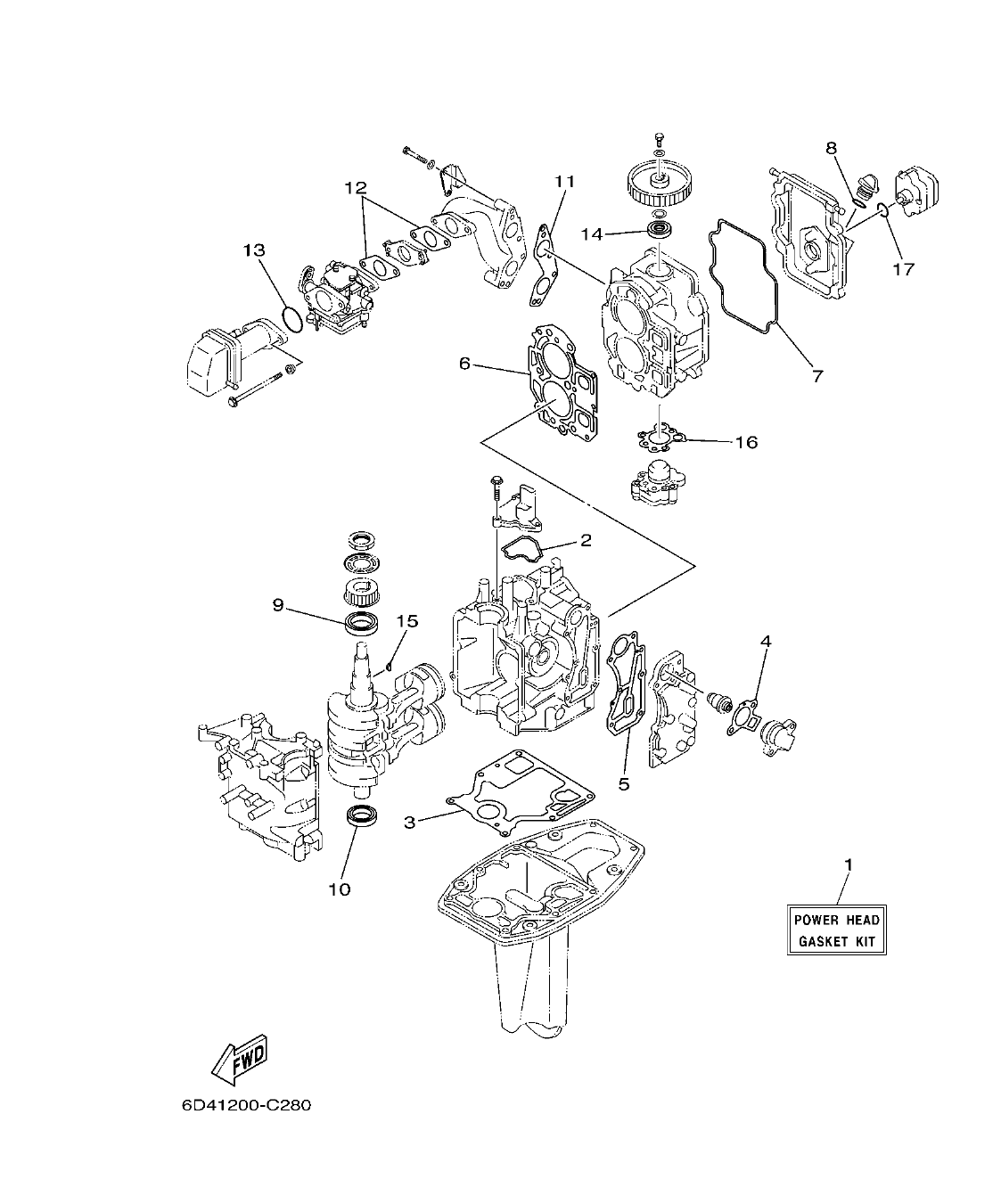

Section 28: REPAIR KIT 1 ESTUCHE REPARATION 1 (v2)
Model code: 6D41
Parts list
Section 28
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
66M-W0001-02
POWER HEAD GASKET KIT 1
|
1 | |
| 2 |
66M-11357-00
.SEAL, CYLINDER 3 1
|
1 | |
| 3 |
66M-11351-10
.GASKET, CYLINDER 1
|
1 | |
| 4 |
62Y-12414-00
.GASKET, COVER 1
|
1 | |
| 5 |
66M-41114-01
.GASKET, EXHAUST OUTER COVER 1
|
1 | |
| 6 |
66M-11181-10
.GASKET, CYLINDER HEAD 1 1
|
1 | |
| 7 |
66M-11356-00
.SEAL, CYLINDER 2 1
|
1 | |
| 8 |
93210-24M79
.O-RING 1
|
1 | |
| 9 |
93102-35M51
.OIL SEAL 1
|
1 | |
| 10 |
93102-25M52
.OIL SEAL 1
|
1 | |
| 11 |
66M-13645-00
.GASKET, MANIFOLD 1 1
|
1 | |
| 12 |
66M-13646-00
.GASKET, MANIFOLD 2 2
|
2 | |
| 13 |
93210-35M86
.O-RING 1
|
1 | |
| 14 |
93102-18M21
.OIL SEAL 1
|
1 | |
| 15 |
90280-03M01
.KEY, WOODRUFF 1
|
1 | |
| 16 |
66M-13329-10
.GASKET, PUMP COVER 1
|
1 | |
| 17 |
93210-20M65
.O-RING 1
|
1 |
