DF140A

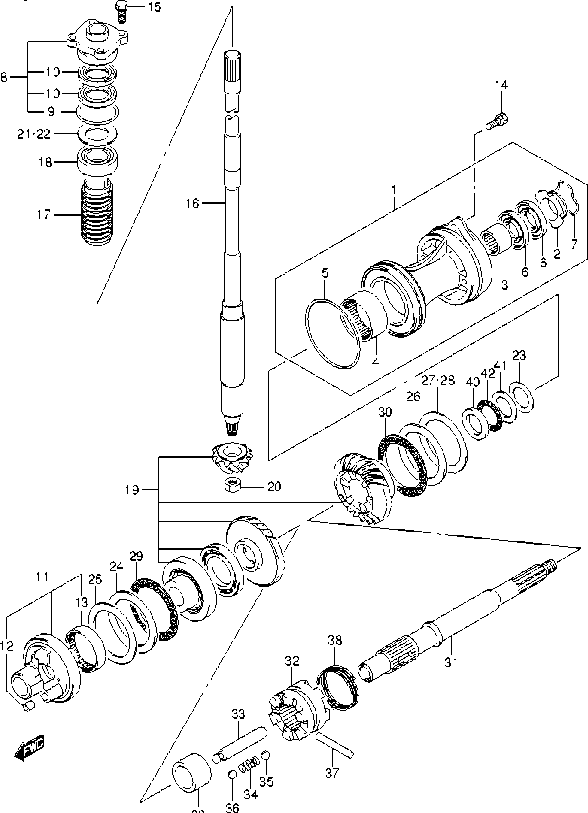

Section 24: TRANSMISSION (DF140AZ E03) (v2)
Model code: DF140A-E03-013
Parts list
Section 24
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
56120-92J12-0EP
HOUSING, PROP SFT BRG (BLACK)
|
1 | |
| 2 |
56123-92J00
.WASHER, OIL SEAL PROTECTOR
|
1 | |
| 3 |
09263-30051
.BEARING (30X37X26)
|
1 |
Price:
59.59 AED
In stock
(19)
|
| 4 |
09263-50001
.BEARING (50X62X25)
|
1 |
Price:
102.05 AED
In stock
(26)
|
| 5 |
09280-97001
.O RING (D:3.5,ID:95)
|
1 |
Price:
6.70 AED
In stock
(30)
|
| 6 |
09282-30007
.OIL SEAL (30X50X6)
|
2 |
Price:
17.88 AED
In stock
(127)
|
| 7 |
09387-52001
.CIRCLIP
|
1 | |
| 8 |
56130-90J00
HOUSING, DRIVE SHAFT BRG
|
1 |
Price:
133.33 AED
In stock
(4)
|
| 9 |
09280-46004
.O RING (D:3.5,ID:45.7)
|
1 |
Price:
5.21 AED
In stock
(11)
|
| 10 |
09282-24004
.OIL SEAL (24X40X7)
|
2 |
Price:
11.17 AED
In stock
(501)
|
| 11 |
56140-92J30
HOUSING, REV GEAR BRG
|
1 | |
| 12 |
09206-09012
.PIN (7.4X9X10)
|
1 | |
| 13 |
09263-45004
.BEARING (45X52X16)
|
1 | |
| 14 |
09117-08047
BOLT (8X30)
|
2 |
Price:
9.68 AED
In stock
(1)
|
| 15 |
09117-08110
BOLT (8X25)
|
4 |
Price:
10.43 AED
In stock
(9)
|
| 16 |
57110-92J70
SHAFT, DRIVE (X)
|
1 |
Price:
1,223.84 AED
In stock
(1)
|
| 17 |
57133-90J01
COLLAR, DRIVE SHAFT
|
1 | |
| 18 |
09265-25040
BEARING (25X52X29.25)
|
1 | |
| 19 |
57300-92870
PINION/GEAR SET
|
1 | |
| 20 |
09140-14024
NUT
|
1 |
Price:
4.47 AED
In stock
(32)
|
| 21 |
57500-87873
SHIM SET, DRIVE SHAFT
|
1 | |
| 34 |
09440-09040
SPRING
|
1 |
Price:
5.21 AED
In stock
(3)
|
| 35 |
06111-07004
BALL
|
2 |
Price:
2.98 AED
In stock
(24)
|
| 36 |
06111-11004
BALL
|
2 |
Price:
2.98 AED
In stock
(21)
|
| 37 |
09202-07002
PIN (7X48)
|
1 |
Price:
9.68 AED
In stock
(10)
|
| 38 |
09440-49004
SPRING
|
1 |
Price:
5.21 AED
In stock
(8)
|
| 39 |
57616-92J00
SPACER, CLUTCH DOG FWD
|
1 | |
| 40 |
09160-30055
WASHER (30X47X6)
|
1 | |
| 41 |
09160-30056
WASHER (32X47X3)
|
1 | |
| 42 |
09269-30014
BEARING (30X47X2)
|
1 |
Price:
23.84 AED
In stock
(20)
|
| 22-1 |
09181-40186
.SHIM (T:0.50)
|
1 | |
| 22-10 |
09181-41010
.SHIM (T:0.95)
|
1 | |
| 22-11 |
09181-40195
.SHIM (T:1.00)
|
1 | |
| 22-12 |
09181-41012
.SHIM (T:1.05)
|
1 | |
| 22-13 |
09181-41013
.SHIM (T:1.10)
|
1 | |
| 22-2 |
09181-41002
.SHIM (T:0.55)
|
1 | |
| 22-3 |
09181-41003
.SHIM (T:0.60)
|
1 | |
| 22-4 |
09181-41004
.SHIM (T:0.65)
|
1 | |
| 22-5 |
09181-41005
.SHIM (T:0.70)
|
1 | |
| 22-6 |
09181-41006
.SHIM (T:0.75)
|
1 | |
| 22-7 |
09181-40190
.SHIM (T:0.80)
|
1 | |
| 22-8 |
09181-41008
.SHIM (T:0.85)
|
1 | |
| 22-9 |
09181-41009
.SHIM (T:0.90)
|
1 |
