DF140A

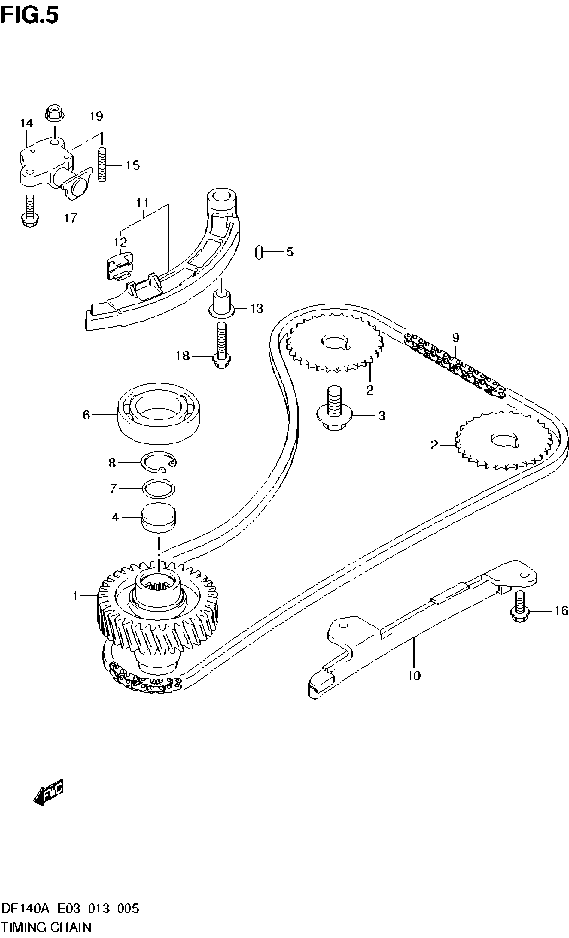

Section 5: TIMING CHAIN (v2)
Model code: DF140A-E03-013
Parts list
Section 5
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
12732-90J00
GEAR, DRIVEN (NT:18)
|
1 | |
| 2 |
12741-90J01
SPROCKET, CAM SHAFT TIMING (NT:29)
|
2 | |
| 3 |
09103-12049
BOLT (12X25)
|
2 | |
| 4 |
12733-90J00
PLUG, DRIVEN GEAR
|
1 | |
| 5 |
04221-05109
PIN
|
2 | |
| 6 |
09262-35068
BEARING (35X62X14)
|
1 |
Price:
104.28 AED
In stock
(14)
|
| 7 |
09280-22022
O RING (D:1.9, ID:21.8)
|
1 |
Price:
8.19 AED
In stock
(9)
|
| 8 |
08331-41269
CIRCLIP
|
1 |
Price:
3.72 AED
In stock
(2)
|
| 9 |
12761-90J00
CHAIN, TIMING
|
1 | |
| 10 |
12771-90J00
GUIDE, TIMING CHAIN
|
1 | |
| 11 |
12810-90J00
TENSIONER, TIMING CHAIN
|
1 | |
| 12 |
12813-73G00
.PAD, TIMING CHAIN TENSIONER
|
1 | |
| 13 |
12812-90J00
SPACER, TIMING CHAIN TENSIONER
|
1 | |
| 14 |
12831-90J02
ADJUSTER, TENSIONER
|
1 |
Price:
200.37 AED
In stock
(12)
|
| 15 |
01421-0616A
STUD BOLT
|
1 | |
| 16 |
01550-0616A
BOLT
|
2 |
Price:
4.47 AED
In stock
(3)
|
| 17 |
01550-0620A
BOLT
|
1 |
Price:
2.98 AED
In stock
(3)
|
| 18 |
01550-0835A
BOLT
|
1 | |
| 19 |
08316-1006A
NUT
|
1 |
Price:
4.47 AED
In stock
(6)
|
