DF140A

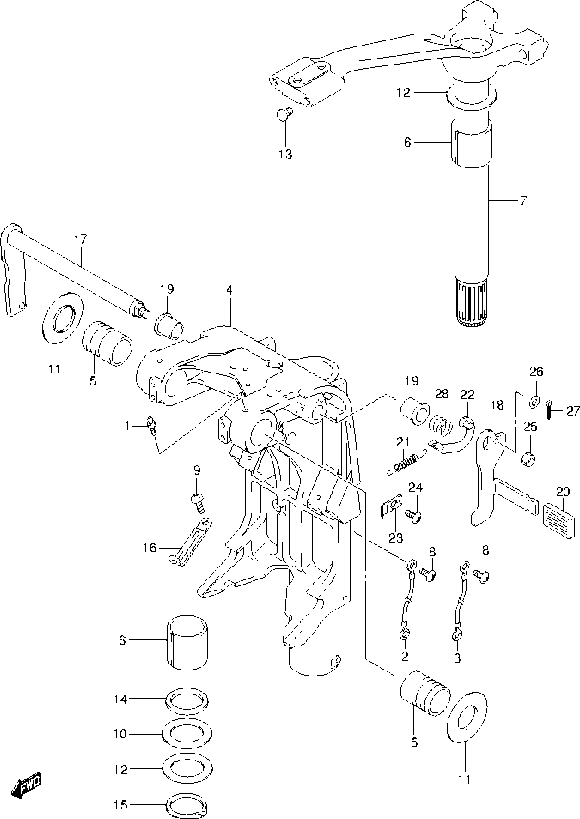

Section 33: SWIVEL BRACKET (DF140AT E03) (v2)
Model code: DF140A-E03-013
Parts list
Section 33
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
22511-99011
NIPPLE, GREASE
|
4 |
Price:
6.70 AED
In stock
(5)
|
| 2 |
36894-95201
LEAD (CLAMP TO SWIVEL)
|
1 | |
| 3 |
36894-87D00
LEAD (SWIVEL TO MOUNT BRKT)
|
1 |
Price:
47.67 AED
In stock
(7)
|
| 5 |
43211-93J00
BUSH, CLAMP SHAFT SWIVEL
|
2 | |
| 6 |
43711-97E00
BUSH, STEERING
|
2 | |
| 8 |
09125-05050
SCREW (5X8)
|
3 | |
| 9 |
09125-06063
SCREW (6X10)
|
2 |
Price:
2.98 AED
In stock
(15)
|
| 10 |
09160-39001
WASHER (39.5X64X1)
|
2 |
Price:
5.96 AED
In stock
(78)
|
| 11 |
09169-28003
WASHER
|
2 | |
| 12 |
09181-39001
SHIM (39.5X64X0.3)
|
4 |
Price:
6.70 AED
In stock
(77)
|
| 13 |
09250-10001
CAP (OD:14)
|
2 | |
| 14 |
09282-39001
OIL SEAL (39X51X5)
|
1 |
Price:
11.92 AED
In stock
(66)
|
| 15 |
09380-38003
CIRCLIP
|
1 |
Price:
19.37 AED
In stock
(27)
|
| 16 |
29404-93J10
CLAMP
|
2 | |
| 17 |
41220-95E13
LEVER, TILT LOCK
|
1 | |
| 18 |
41221-95E40
LEVER, TILT LOCK PORT
|
1 | |
| 19 |
41224-95E01
BUSH, TILT STOPPER ROD
|
2 | |
| 20 |
41225-94400
RUBBER, TILT LOCK LEVER
|
1 | |
| 21 |
41228-90J00
SPRING, TILT LOCK LEVER
|
1 | |
| 22 |
41230-95E00
LINK, TILT LOCK LEVER
|
1 | |
| 23 |
41233-95E10
BRACKET, TILT LOCK SPRING
|
1 | |
| 24 |
09125-06063
SCREW (6X10)
|
1 |
Price:
2.98 AED
In stock
(15)
|
| 25 |
09140-10032
NUT
|
1 |
Price:
3.72 AED
In stock
(7)
|
| 26 |
09160-06082
WASHER (6.5X13X1.0)
|
1 | |
| 27 |
09204-01006
PIN
|
1 |
Price:
3.72 AED
In stock
(10)
|
| 28 |
09440-19028
SPRING
|
1 | |
| 4-1 |
43111-92J80-0EP
BRACKET, SWIVEL (L) (BLACK)
|
1 | |
| 4-2 |
43111-92J90-0EP
BRACKET, SWIVEL (UL) (BLACK)
|
1 | |
| 7-1 |
43750-90J22-0EP
BRACKET, STEERING (L) (BLACK)
|
1 | |
| 7-2 |
43750-90J32-0EP
BRACKET, STEERING (X) (BLACK)
|
1 |
