YFM25RD

Choose a section to open the exploded parts diagram with live pricing. (v2)

Model code: 1BTM
Engine sections in this model
CYLINDER HEAD CYLINDER CRANKSHAFT & PISTON VALVE CAMSHAFT & CHAIN OIL PUMP OIL COOLER INTAKE CARBURETOR EXHAUST CRANKCASE CRANKCASE COVER 1 STARTER CLUTCH CLUTCH TRANSMISSION SHIFT CAM & FORK FRAME FRONT FENDER REAR FENDER REAR ARM REAR SUSPENSION FRONT SUSPENSION & WHEEL STEERING FUEL TANK SEAT FRONT WHEEL FRONT BRAKE CALIPER REAR WHEEL REAR BRAKE CALIPER STEERING HANDLE & CABLE FRONT MASTER CYLINDER STAND & FOOTREST REAR MASTER CYLINDER GUARD GENERATOR STARTING MOTOR HEADLIGHT TAILLIGHT HANDLE SWITCH & LEVER ELECTRICAL 1 GRAPHICS EMBLEM & LABEL 1
Fig. 1 – CYLINDER HEAD diagram
Fig. 1 – CYLINDER HEAD
Fig. 2 – CYLINDER diagram
Fig. 2 – CYLINDER
Fig. 3 – CRANKSHAFT & PISTON diagram
Fig. 3 – CRANKSHAFT & PISTON

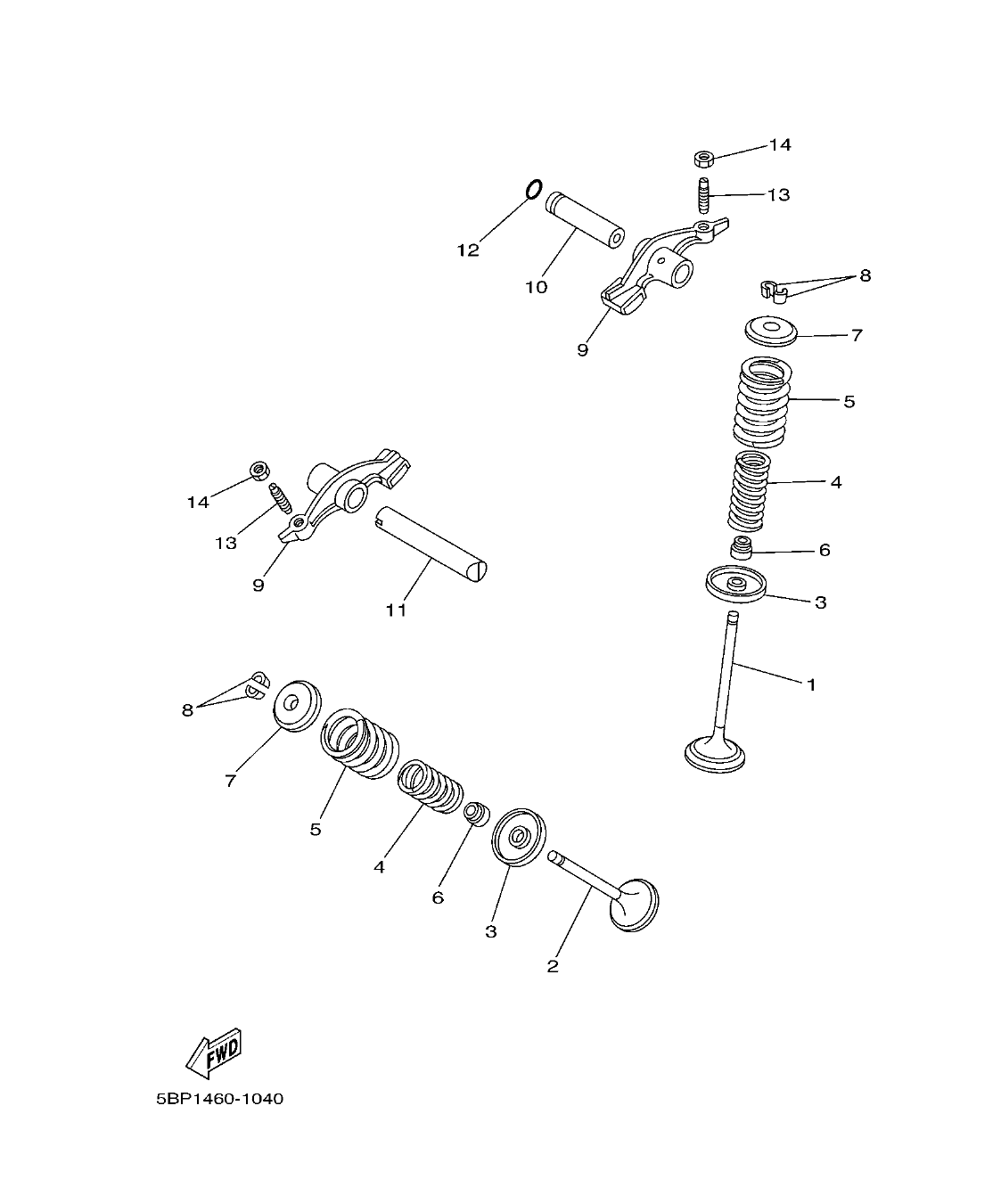

Fig. 4 – VALVE diagram
Fig. 4 – VALVE
Fig. 5 – CAMSHAFT & CHAIN diagram
Fig. 5 – CAMSHAFT & CHAIN

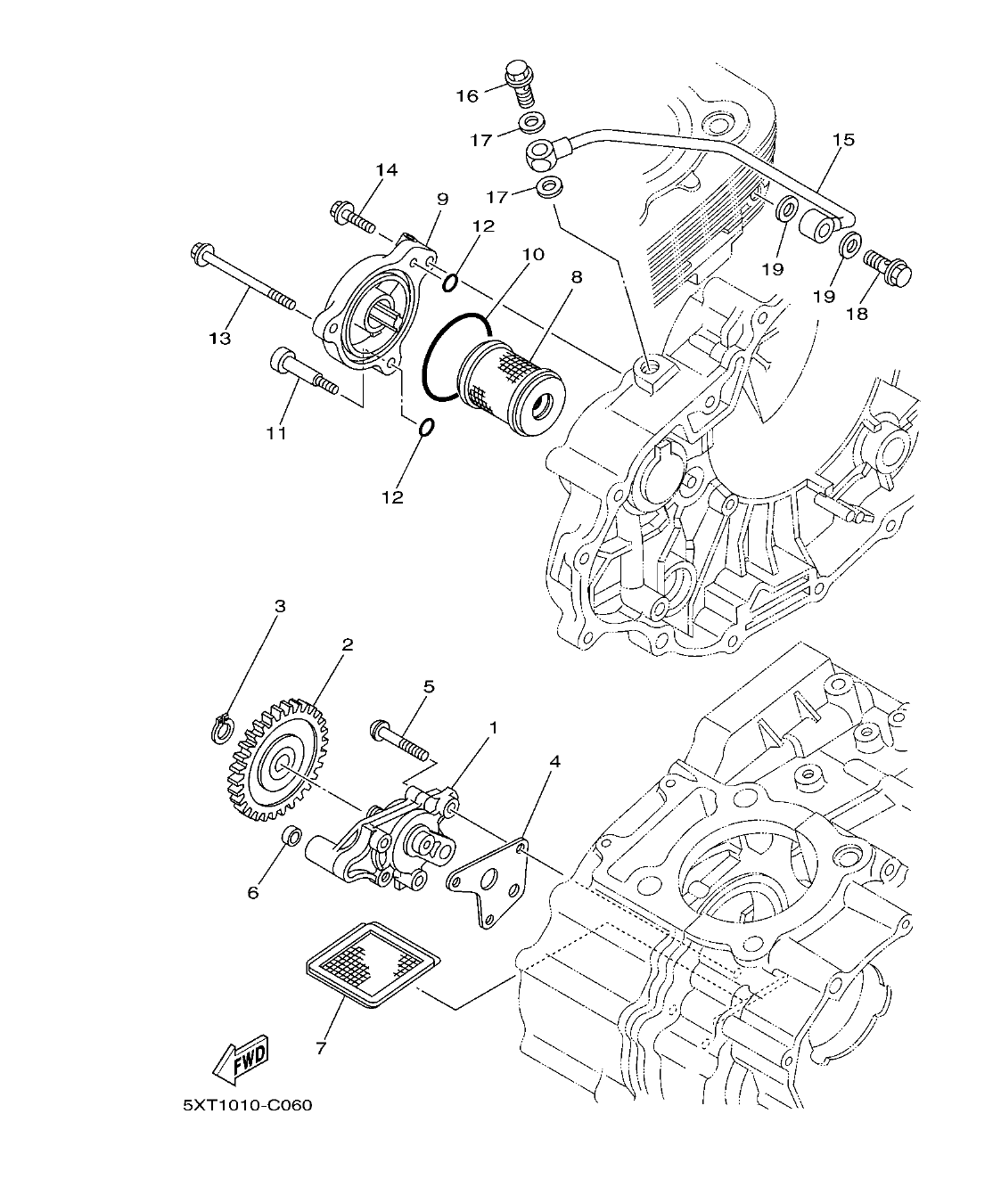

Fig. 6 – OIL PUMP diagram
Fig. 6 – OIL PUMP
Fig. 7 – OIL COOLER diagram
Fig. 7 – OIL COOLER
Fig. 8 – INTAKE diagram
Fig. 8 – INTAKE

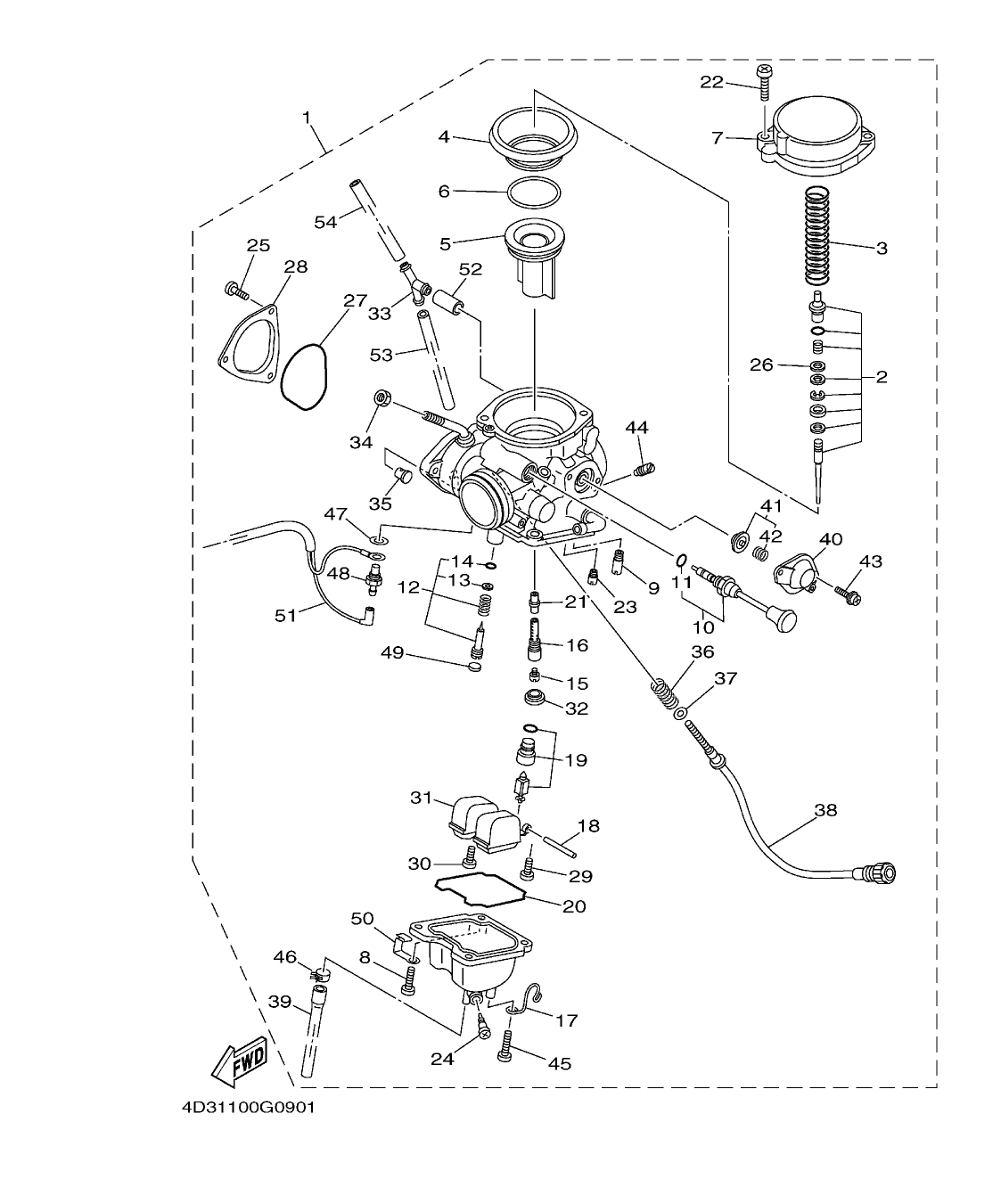

Fig. 9 – CARBURETOR diagram
Fig. 9 – CARBURETOR

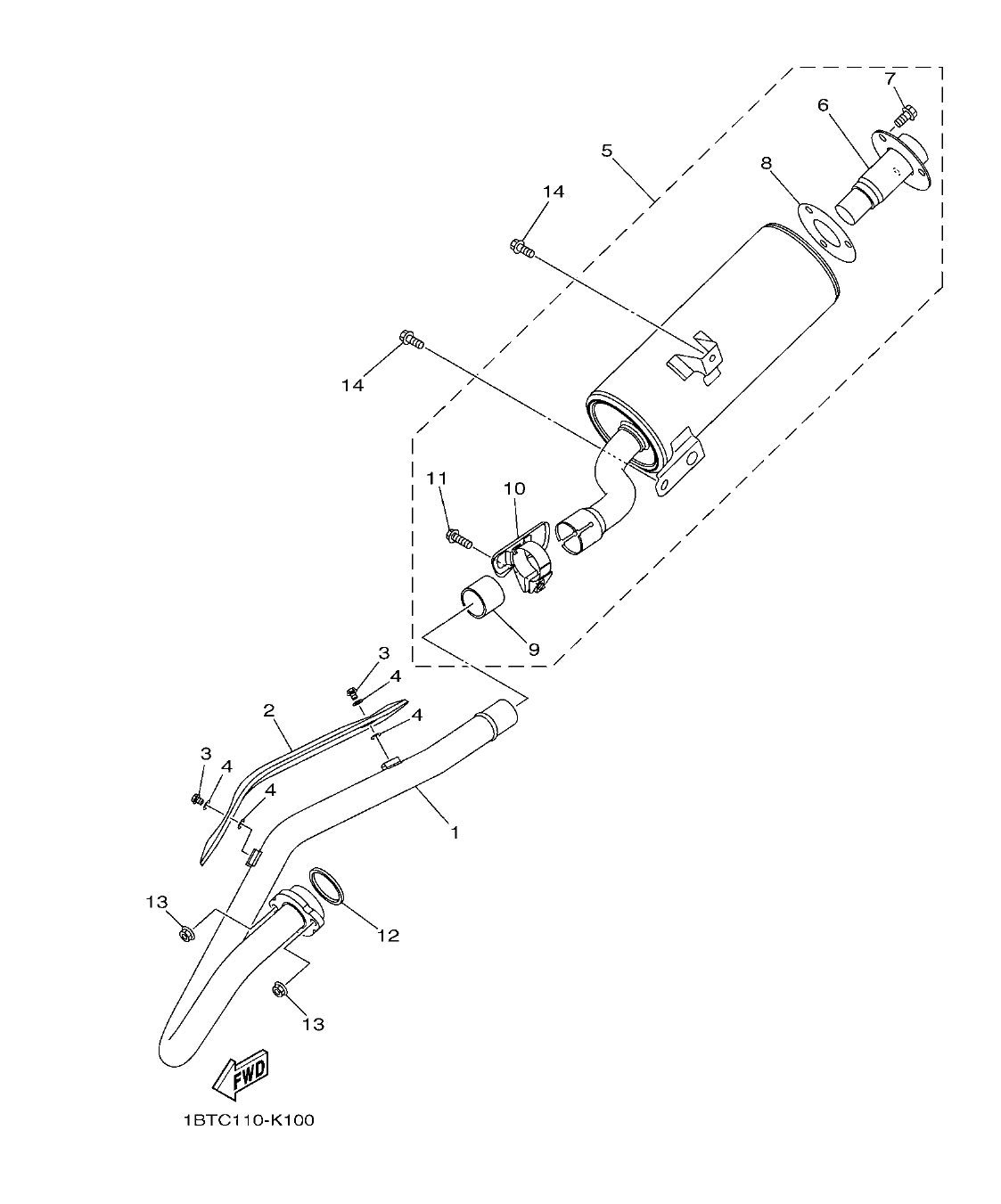

Fig. 10 – EXHAUST diagram
Fig. 10 – EXHAUST
Fig. 11 – CRANKCASE diagram
Fig. 11 – CRANKCASE
Fig. 12 – CRANKCASE COVER 1 diagram
Fig. 12 – CRANKCASE COVER 1
Fig. 13 – STARTER CLUTCH diagram
Fig. 13 – STARTER CLUTCH

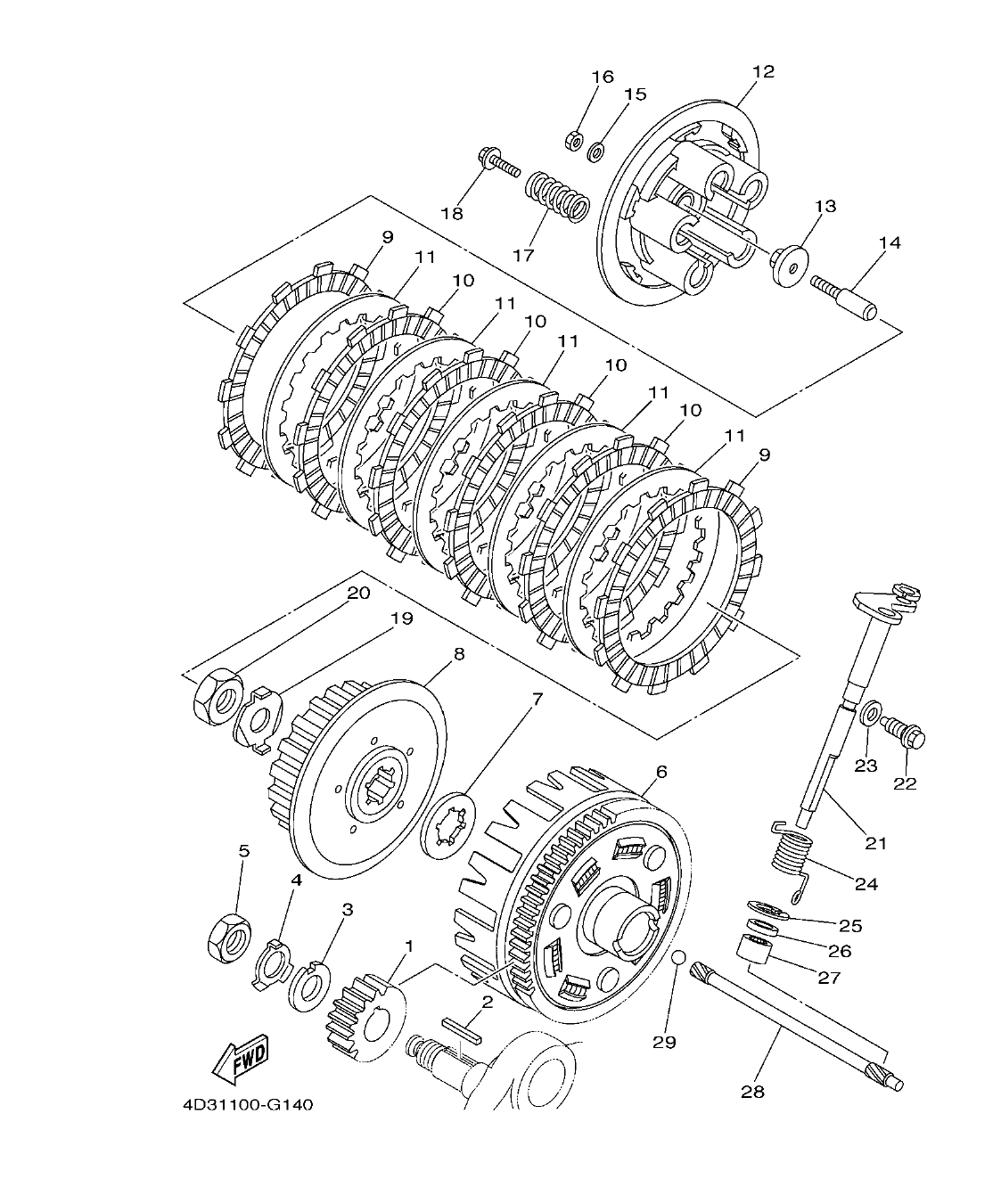

Fig. 14 – CLUTCH diagram
Fig. 14 – CLUTCH
Fig. 15 – TRANSMISSION diagram
Fig. 15 – TRANSMISSION
Fig. 16 – SHIFT CAM & FORK diagram
Fig. 16 – SHIFT CAM & FORK
Fig. 17 – FRAME diagram
Fig. 17 – FRAME

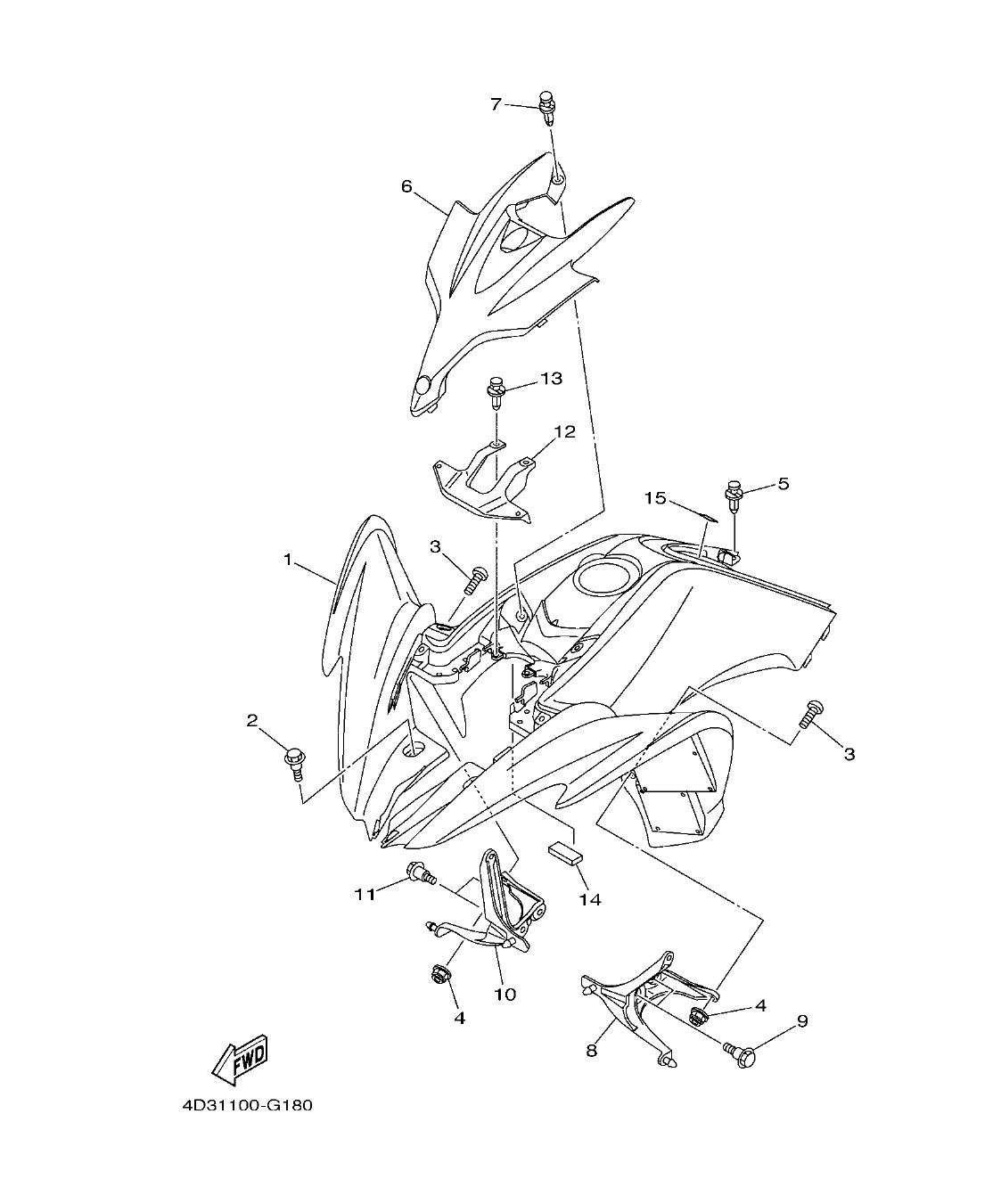

Fig. 18 – FRONT FENDER diagram
Fig. 18 – FRONT FENDER
Fig. 19 – REAR FENDER diagram
Fig. 19 – REAR FENDER

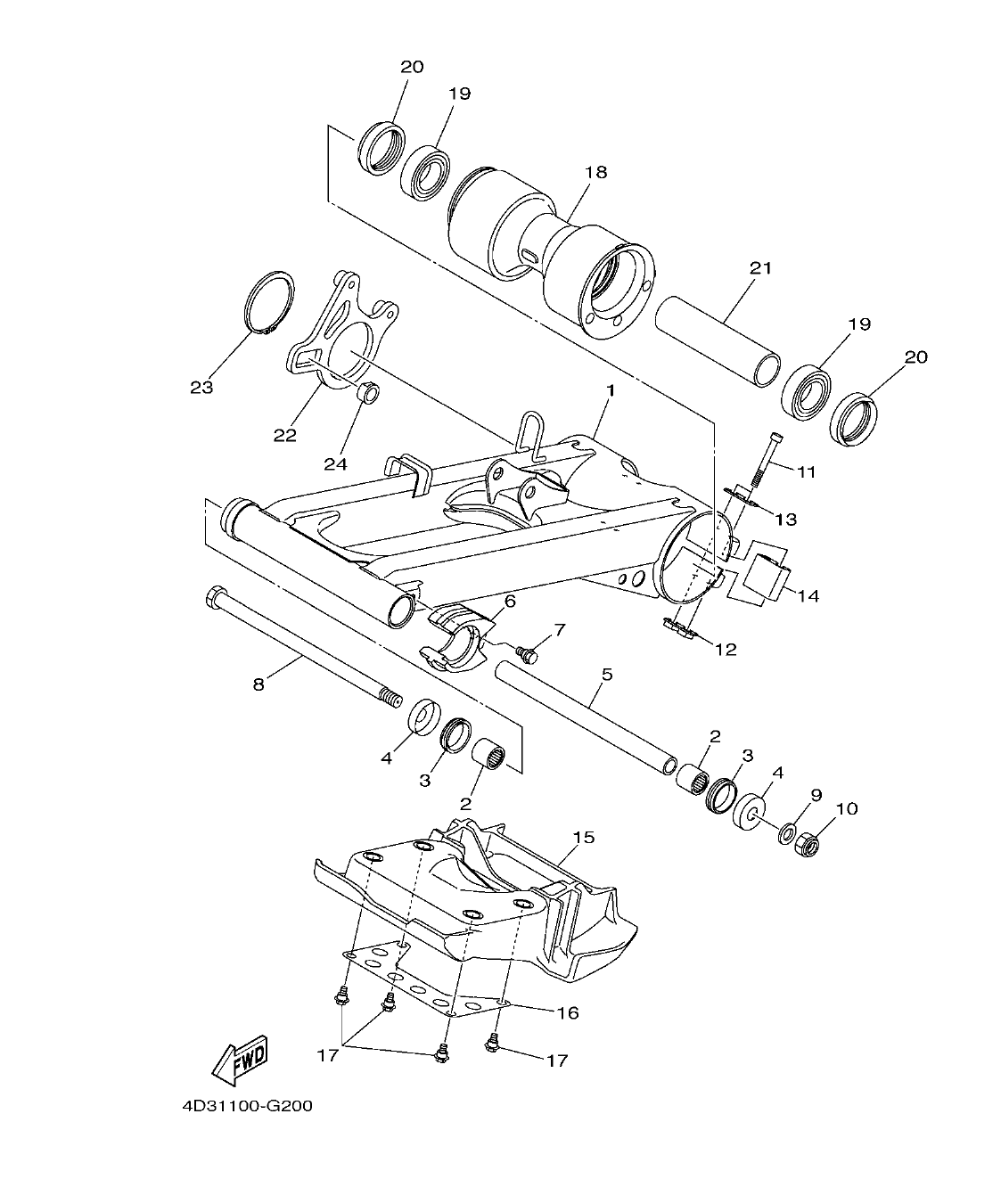

Fig. 20 – REAR ARM diagram
Fig. 20 – REAR ARM

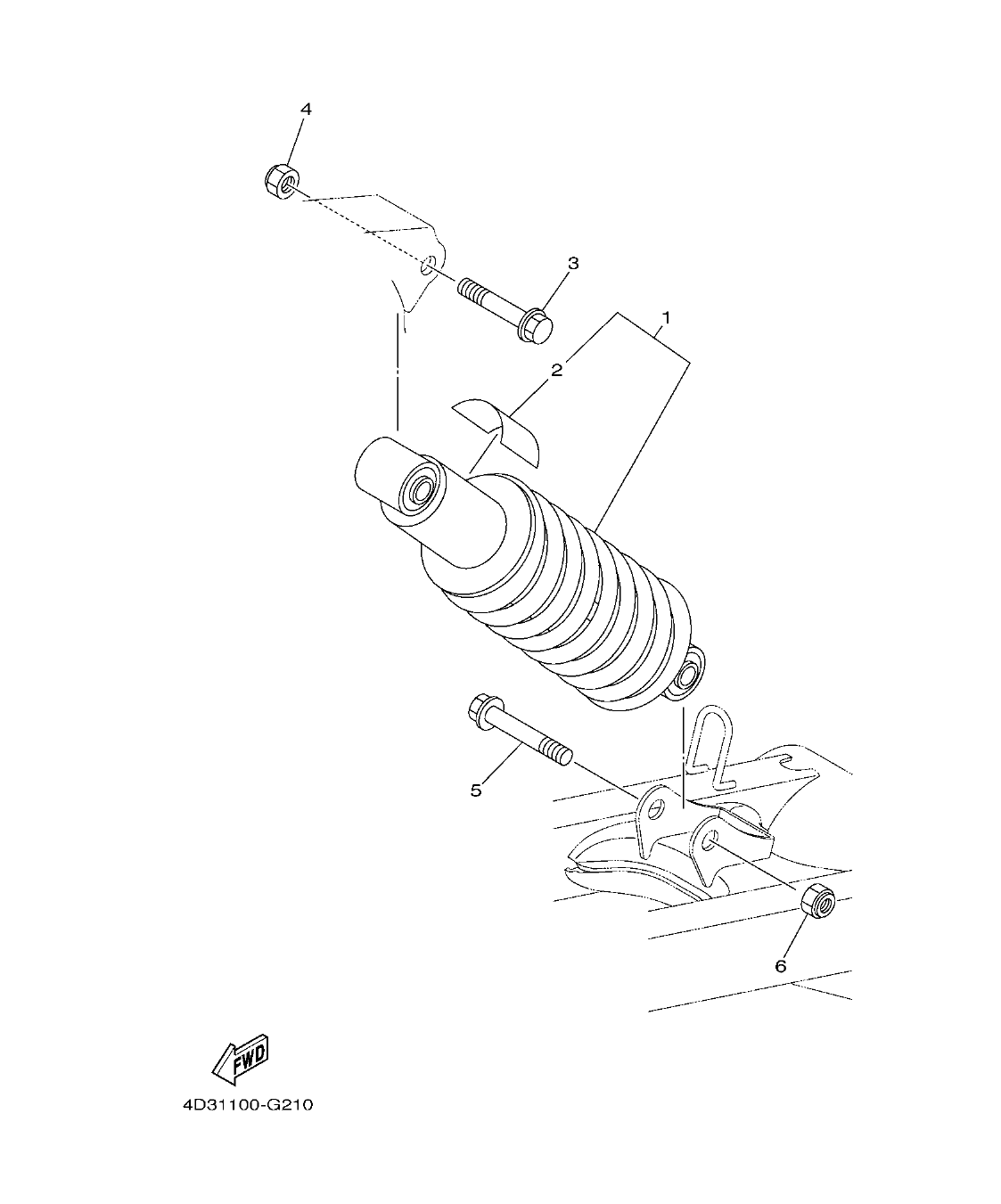

Fig. 21 – REAR SUSPENSION diagram
Fig. 21 – REAR SUSPENSION
Fig. 22 – FRONT SUSPENSION & WHEEL diagram
Fig. 22 – FRONT SUSPENSION & WHEEL
Fig. 23 – STEERING diagram
Fig. 23 – STEERING

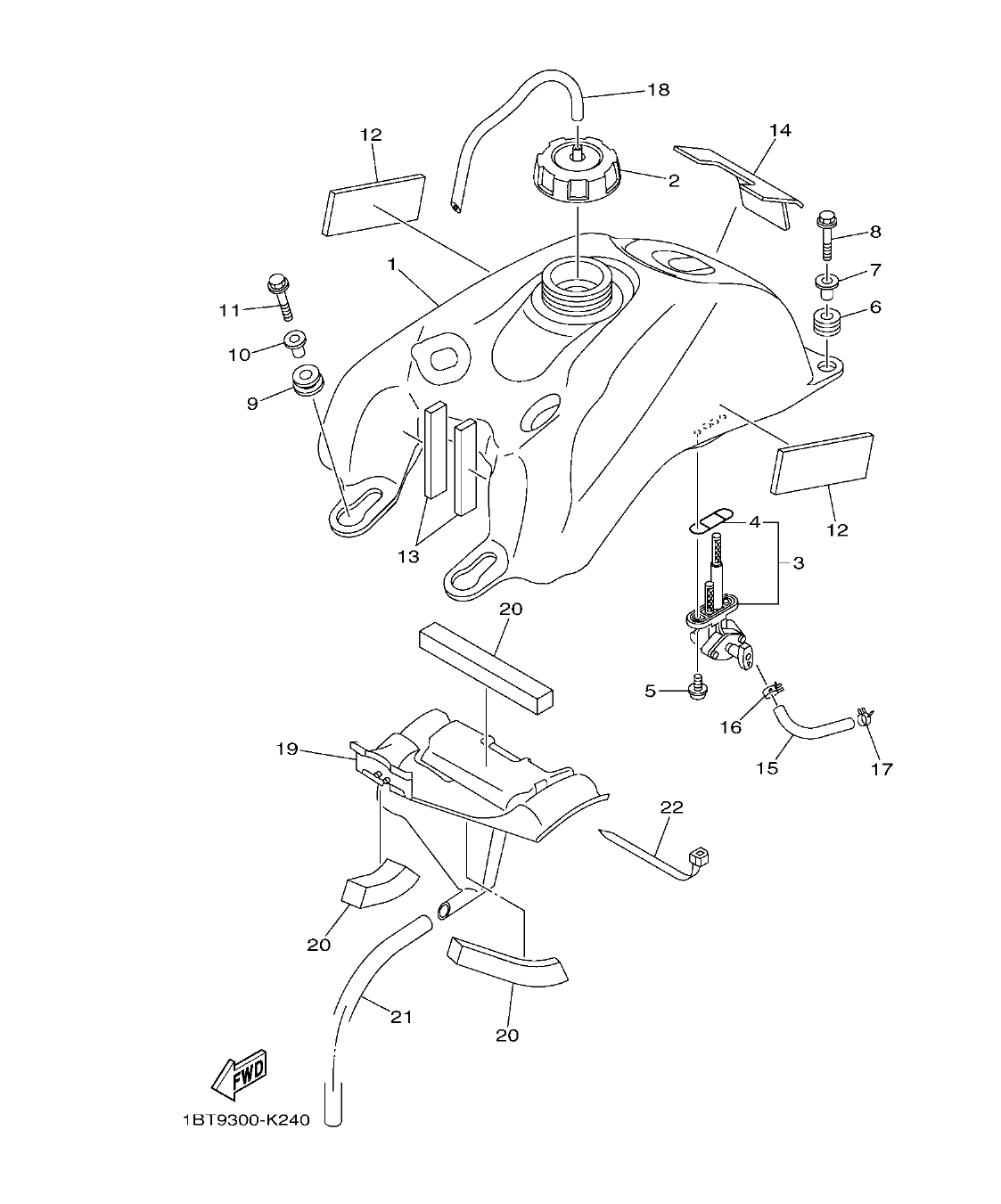

Fig. 24 – FUEL TANK diagram
Fig. 24 – FUEL TANK
Fig. 25 – SEAT diagram
Fig. 25 – SEAT
Fig. 26 – FRONT WHEEL diagram
Fig. 26 – FRONT WHEEL

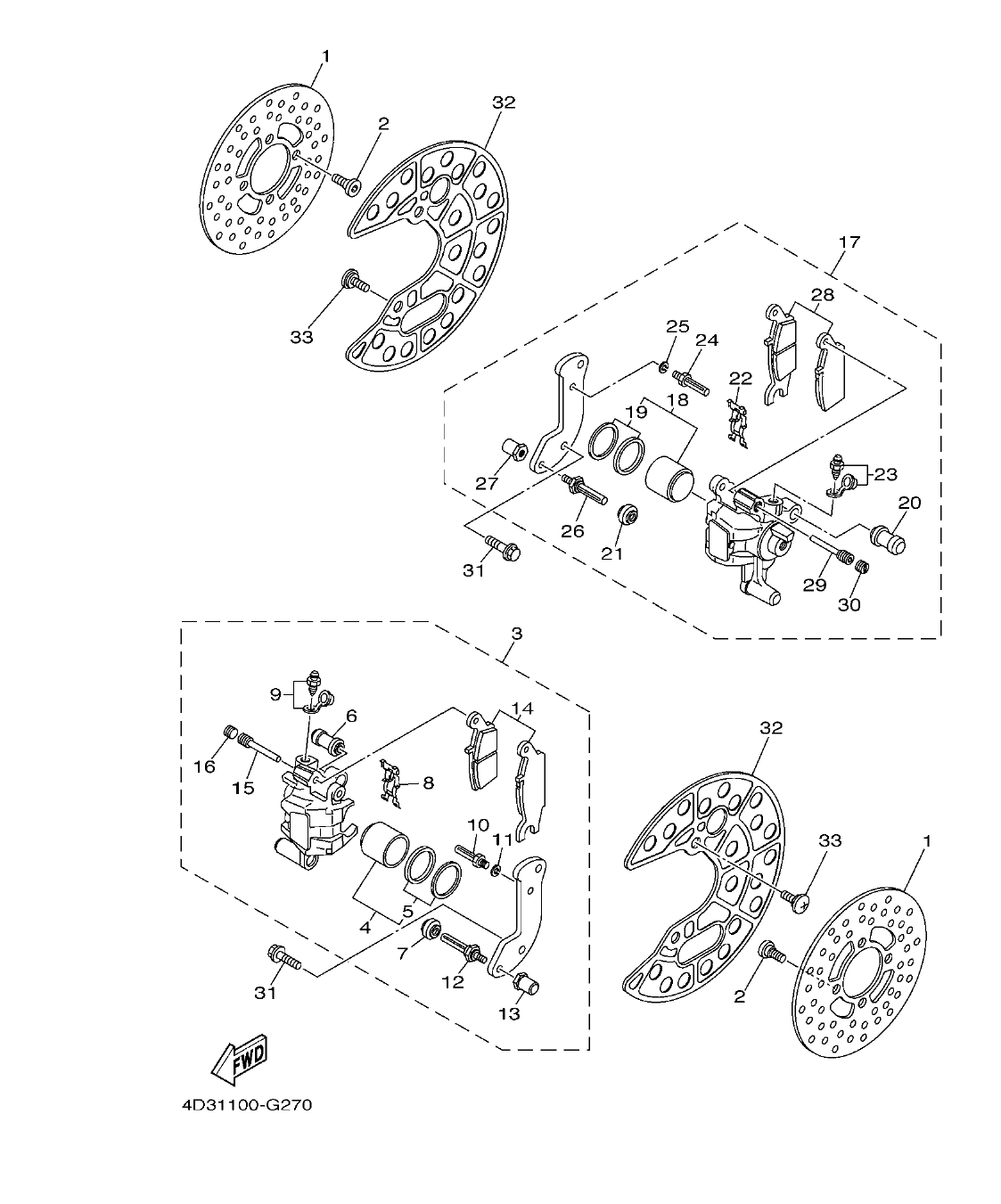

Fig. 27 – FRONT BRAKE CALIPER diagram
Fig. 27 – FRONT BRAKE CALIPER

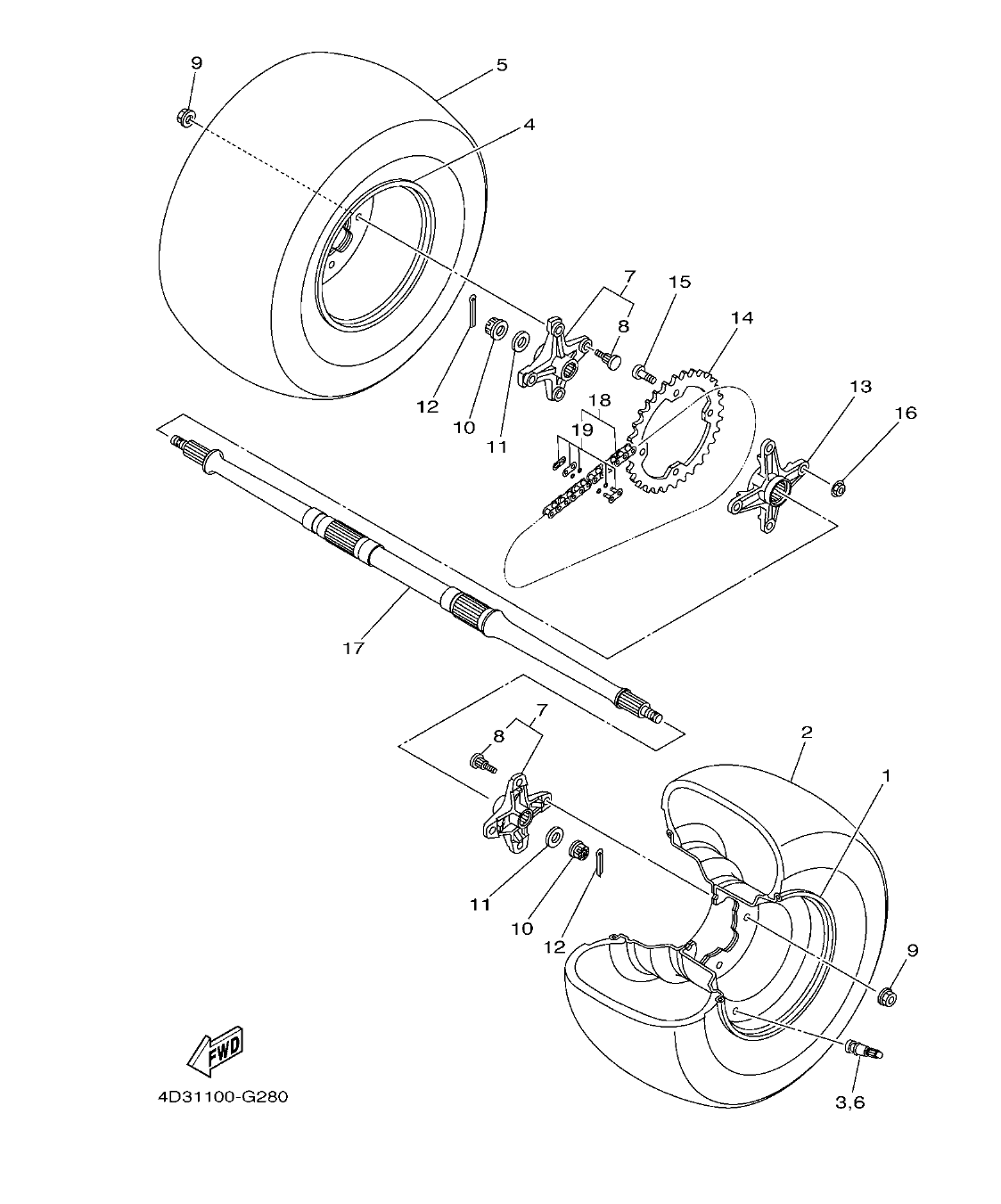

Fig. 28 – REAR WHEEL diagram
Fig. 28 – REAR WHEEL

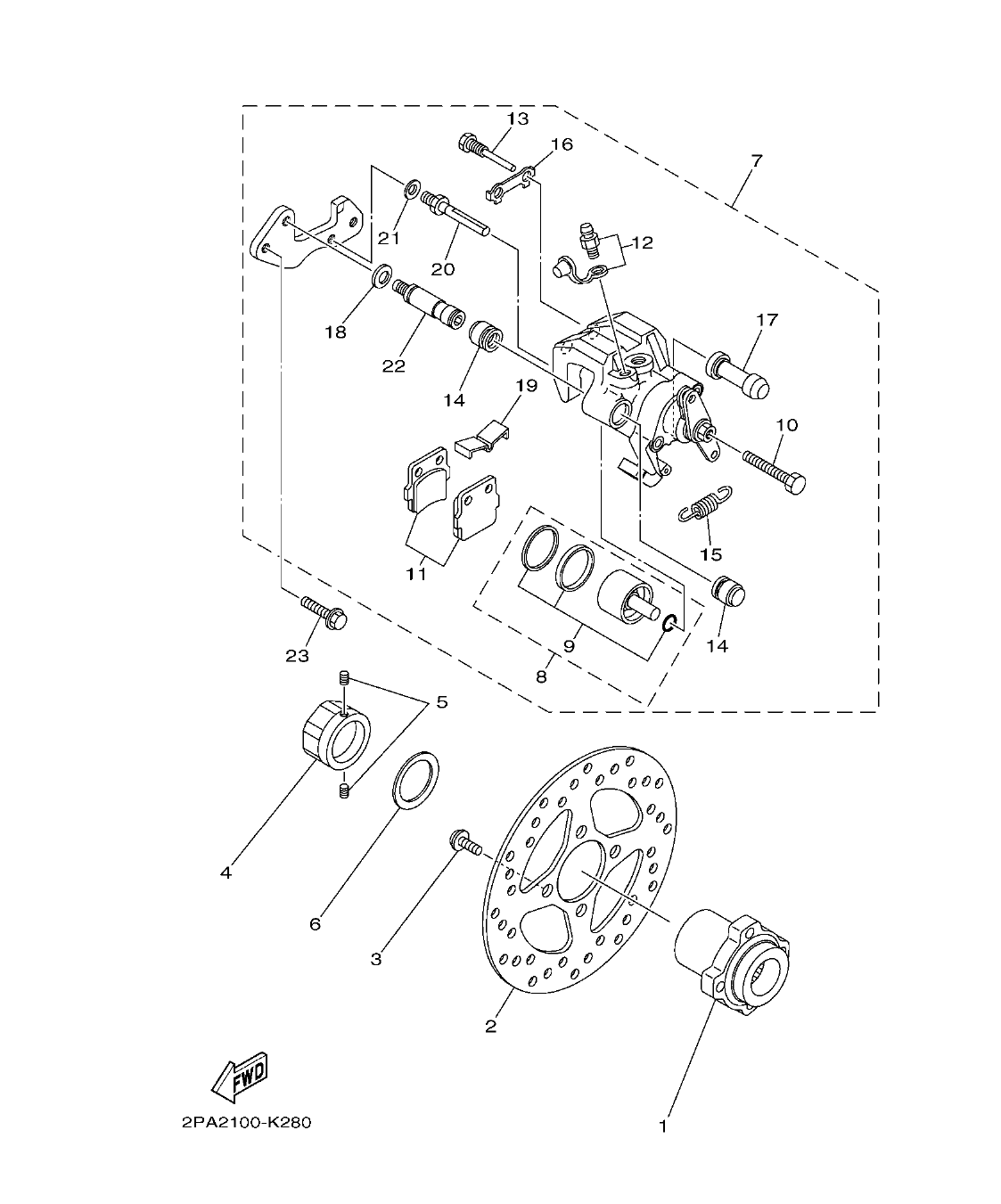

Fig. 29 – REAR BRAKE CALIPER diagram
Fig. 29 – REAR BRAKE CALIPER
Fig. 30 – STEERING HANDLE & CABLE diagram
Fig. 30 – STEERING HANDLE & CABLE
Fig. 31 – FRONT MASTER CYLINDER diagram
Fig. 31 – FRONT MASTER CYLINDER
Fig. 32 – STAND & FOOTREST diagram
Fig. 32 – STAND & FOOTREST
Fig. 33 – REAR MASTER CYLINDER diagram
Fig. 33 – REAR MASTER CYLINDER
Fig. 34 – GUARD diagram
Fig. 34 – GUARD
Fig. 35 – GENERATOR diagram
Fig. 35 – GENERATOR

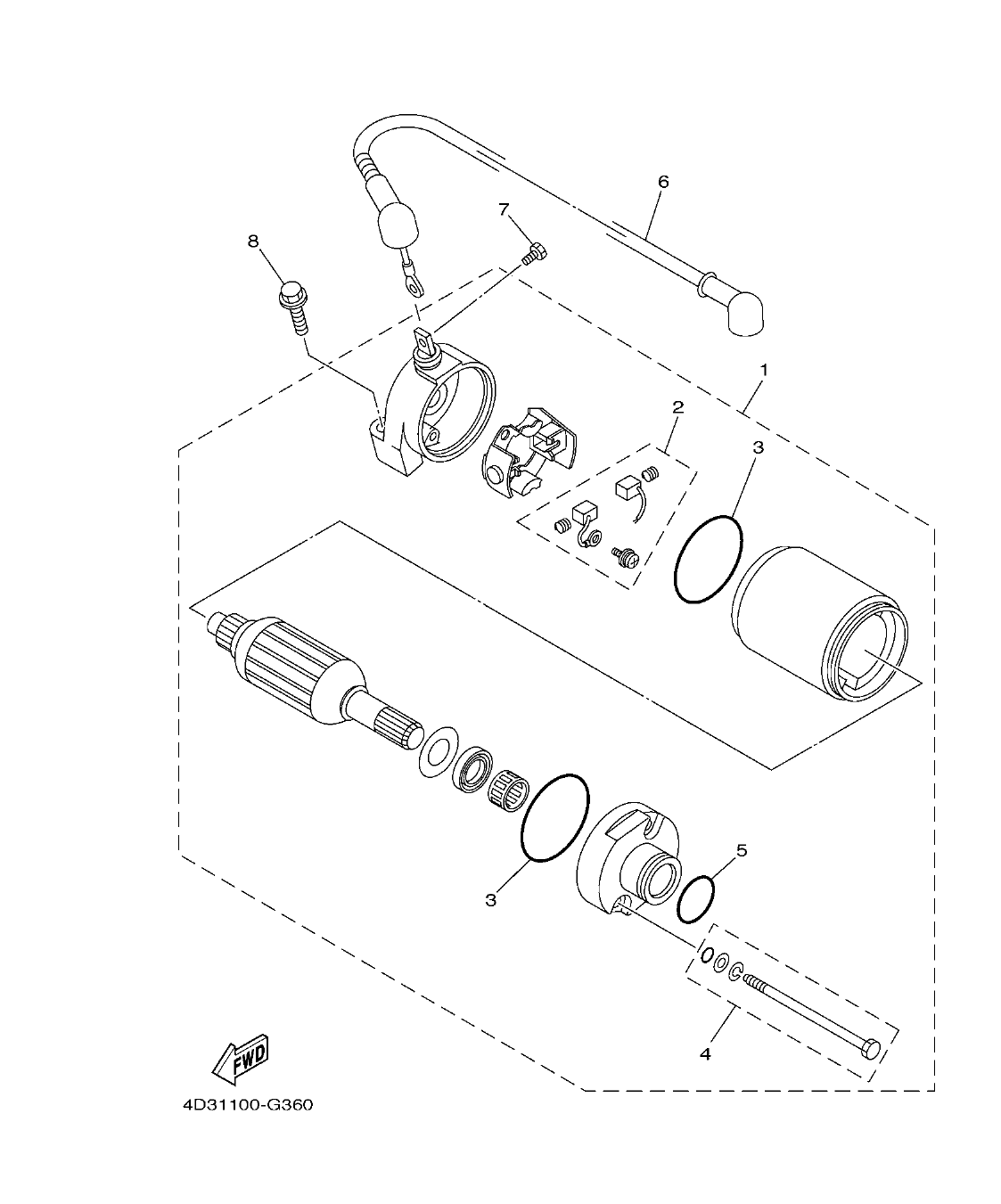

Fig. 36 – STARTING MOTOR diagram
Fig. 36 – STARTING MOTOR
Fig. 37 – HEADLIGHT diagram
Fig. 37 – HEADLIGHT
Fig. 38 – TAILLIGHT diagram
Fig. 38 – TAILLIGHT

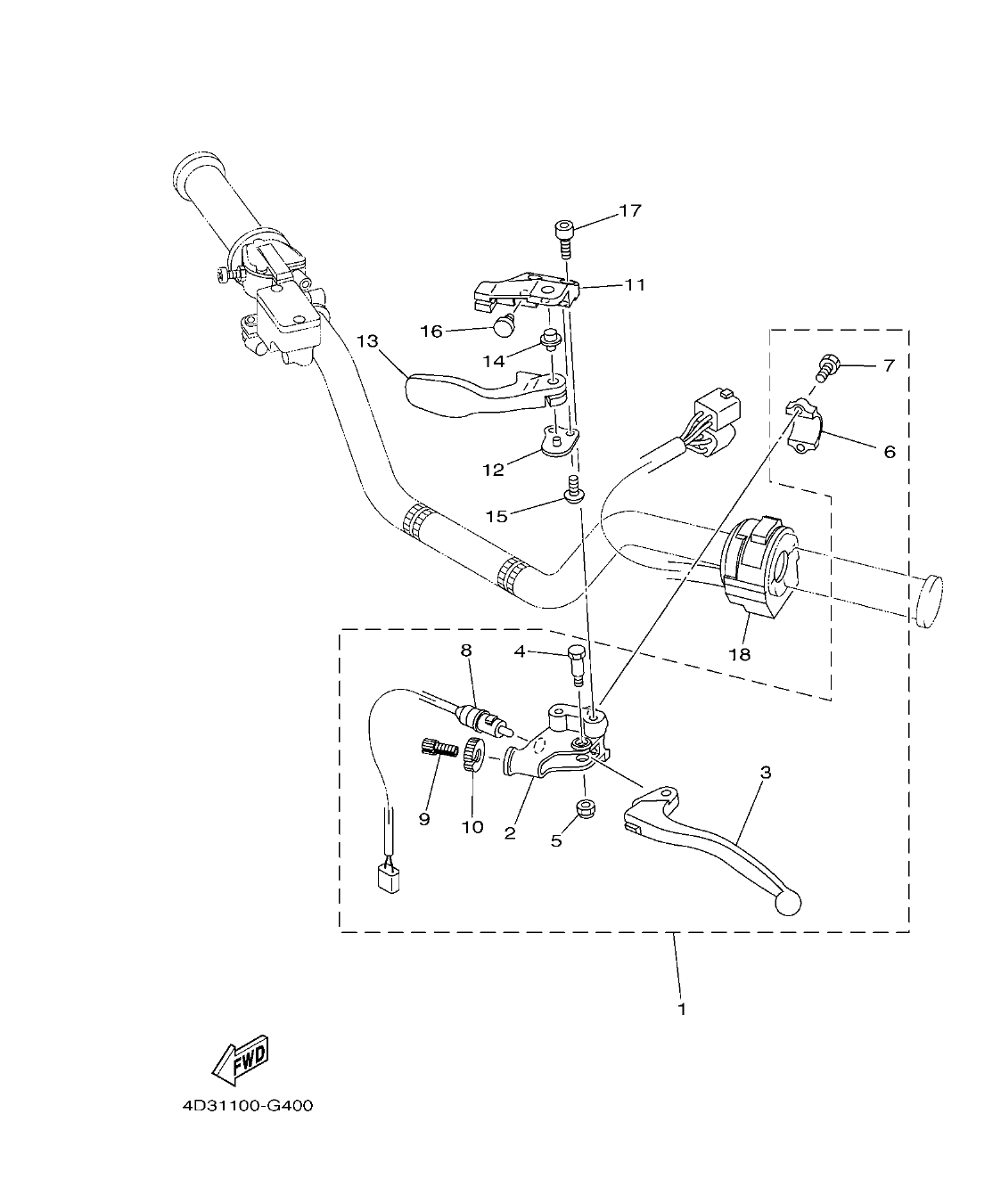

Fig. 39 – HANDLE SWITCH & LEVER diagram
Fig. 39 – HANDLE SWITCH & LEVER
Fig. 40 – ELECTRICAL 1 diagram
Fig. 40 – ELECTRICAL 1
Fig. 41 – GRAPHICS diagram
Fig. 41 – GRAPHICS
Fig. 42 – EMBLEM & LABEL 1 diagram
Fig. 42 – EMBLEM & LABEL 1
