YFM25RD

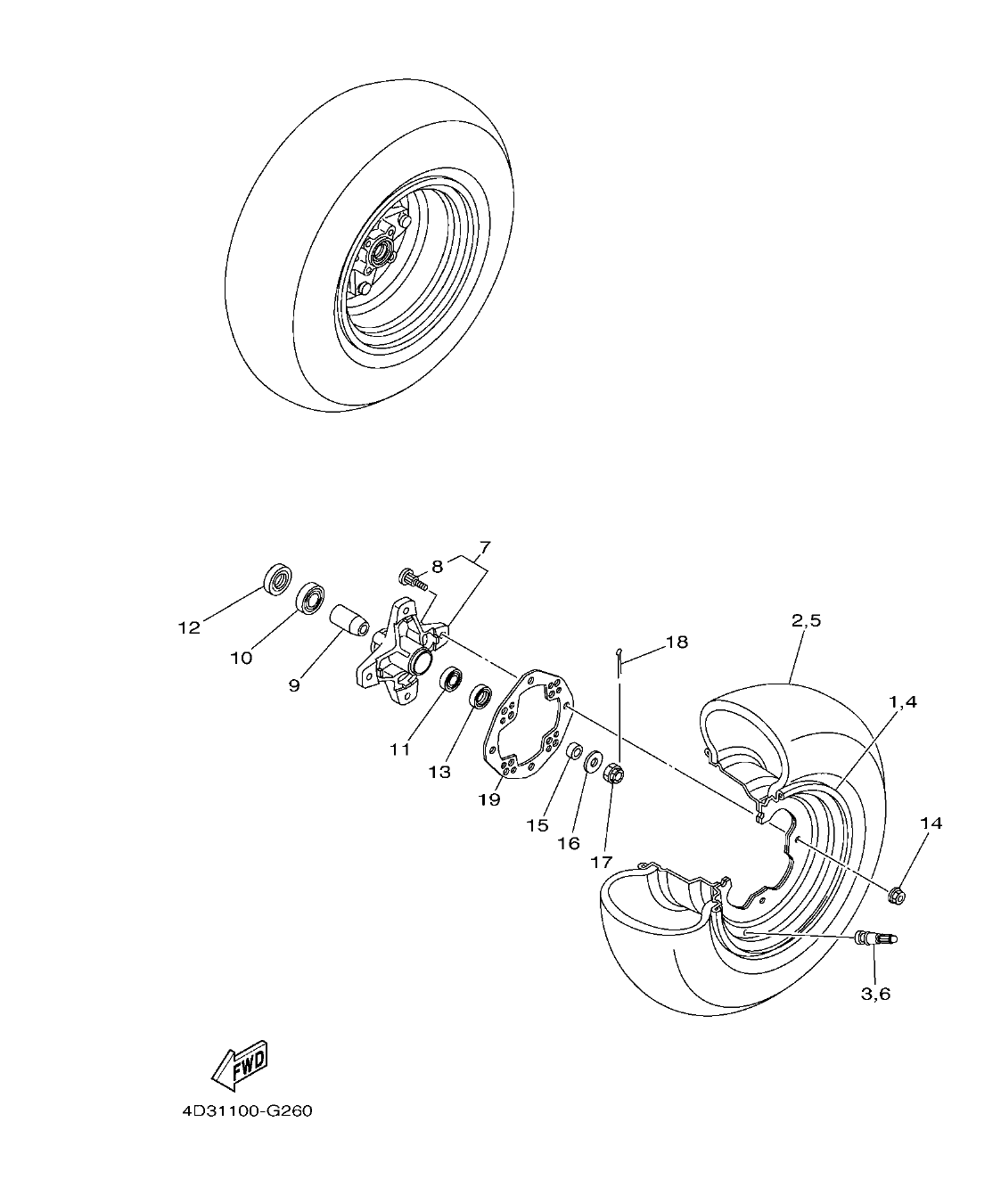

Section 26: FRONT WHEEL (v2)
Model code: 1BTM
Parts list
Section 26
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
1S3-25180-00
WHEEL COMP.
|
1 | |
| 2 |
94107-10033
TIRE (AT20X7-10 DI-K102 T/L N)
DURO
|
1 | |
| 3 |
93900-00022
VALVE, RIM (TR413)
TAIHEIYO
|
1 | |
| 4 |
1S3-25180-00
WHEEL COMP.
|
1 | |
| 5 |
94107-10033
TIRE (AT20X7-10 DI-K102 T/L N)
DURO
|
1 | |
| 6 |
93900-00022
VALVE, RIM (TR413)
TAIHEIYO
|
1 | |
| 7 |
3GD-25111-20
HUB, FRONT
|
2 | |
| 8 |
90114-10006
.BOLT, SERRATION
|
4 | |
| 9 |
1UY-25117-00
SPACER, BEARING
|
2 | |
| 10 |
93306-00446
BEARING
|
2 | |
| 11 |
93306-20231
BEARING
|
2 | |
| 12 |
93105-26026
OIL SEAL
|
2 | |
| 13 |
93102-22216
OIL SEAL
|
2 | |
| 14 |
95702-10500
NUT, FLANGE
|
8 | |
| 15 |
90387-150R1
COLLAR
|
2 | |
| 16 |
90201-14586
WASHER, PLATE
|
2 | |
| 17 |
90171-14002
NUT, CASTLE
|
2 | |
| 18 |
91401-30025
PIN, COTTER
|
2 | |
| 19 |
1S3-25127-01
COVER, PLATE
|
2 |
