YFM25RD

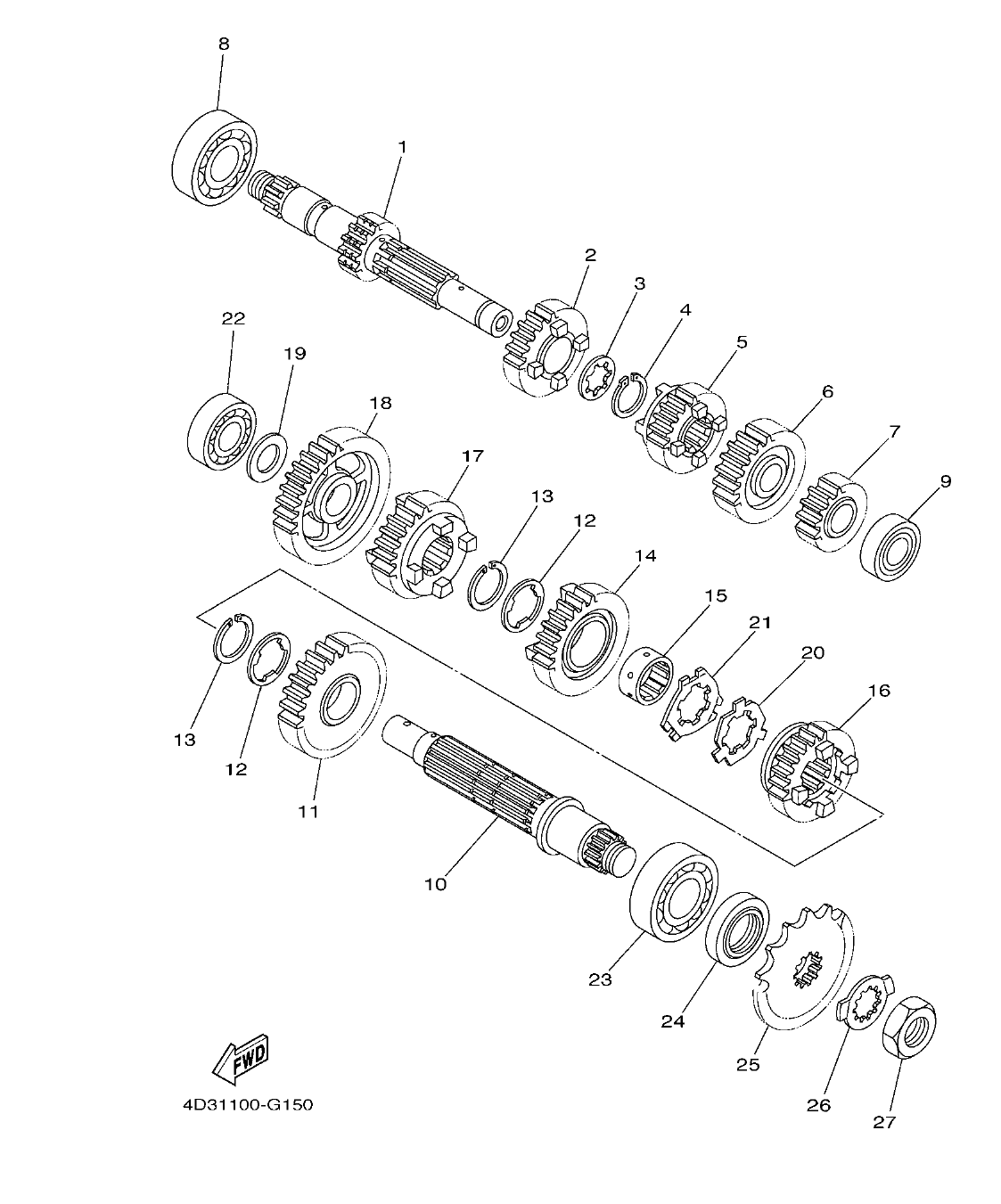

Section 15: TRANSMISSION (v2)
Model code: 1BTM
Parts list
Section 15
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
4D3-17411-00
AXLE, MAIN
|
1 | |
| 2 |
4D3-17141-00
GEAR, 4TH PINION (24T)
|
1 | |
| 3 |
90209-18208
WASHER
|
1 |
3.72 AED
Check price & stock on WhatsApp
|
| 4 |
93410-22039
CIRCLIP
|
1 | |
| 5 |
4D3-17131-00
GEAR, 3RD PINION (21T)
|
1 | |
| 6 |
4D3-17151-00
GEAR, 5TH PINION (29T)
|
1 | |
| 7 |
4D3-17121-00
GEAR, 2ND PINION (18T)
|
1 | |
| 8 |
93306-20427
BEARING
|
1 | |
| 9 |
93306-00320
BEARING
|
1 | |
| 10 |
4D3-17402-00
DRIVE AXLE ASSY
|
1 | |
| 11 |
4D3-17221-00
GEAR, 2ND WHEEL (33T)
|
1 | |
| 12 |
90209-22191
WASHER
|
2 | |
| 13 |
93440-25084
CIRCLIP
|
2 | |
| 14 |
4D3-17231-00
GEAR, 3RD WHEEL (29T)
|
1 | |
| 15 |
90387-22017
COLLAR
|
1 | |
| 16 |
4D3-17251-00
GEAR, 5TH WHEEL (28T)
|
1 | |
| 17 |
4D3-17241-00
GEAR, 4TH WHEEL (24T)
|
1 | |
| 18 |
4D3-17211-00
GEAR, 1ST WHEEL (37T)
|
1 | |
| 19 |
90201-17255
WASHER, PLATE
|
1 | |
| 20 |
90214-22004
WASHER, CLAW
|
1 | |
| 21 |
90214-22005
WASHER, CLAW
|
1 | |
| 22 |
93306-20332
BEARING
|
1 |
51.40 AED
Check price & stock on WhatsApp
|
| 23 |
93306-20532
BEARING
|
1 | |
| 24 |
93102-25226
OIL SEAL
|
1 | |
| 25 |
9383R-14236
SPROCKET,DRIVE (14T)
|
1 |
121.42 AED
Check price & stock on WhatsApp
|
| 26 |
90215-23265
WASHER, LOCK
|
1 | |
| 27 |
90179-18552
NUT
|
1 |
