YFM25RD

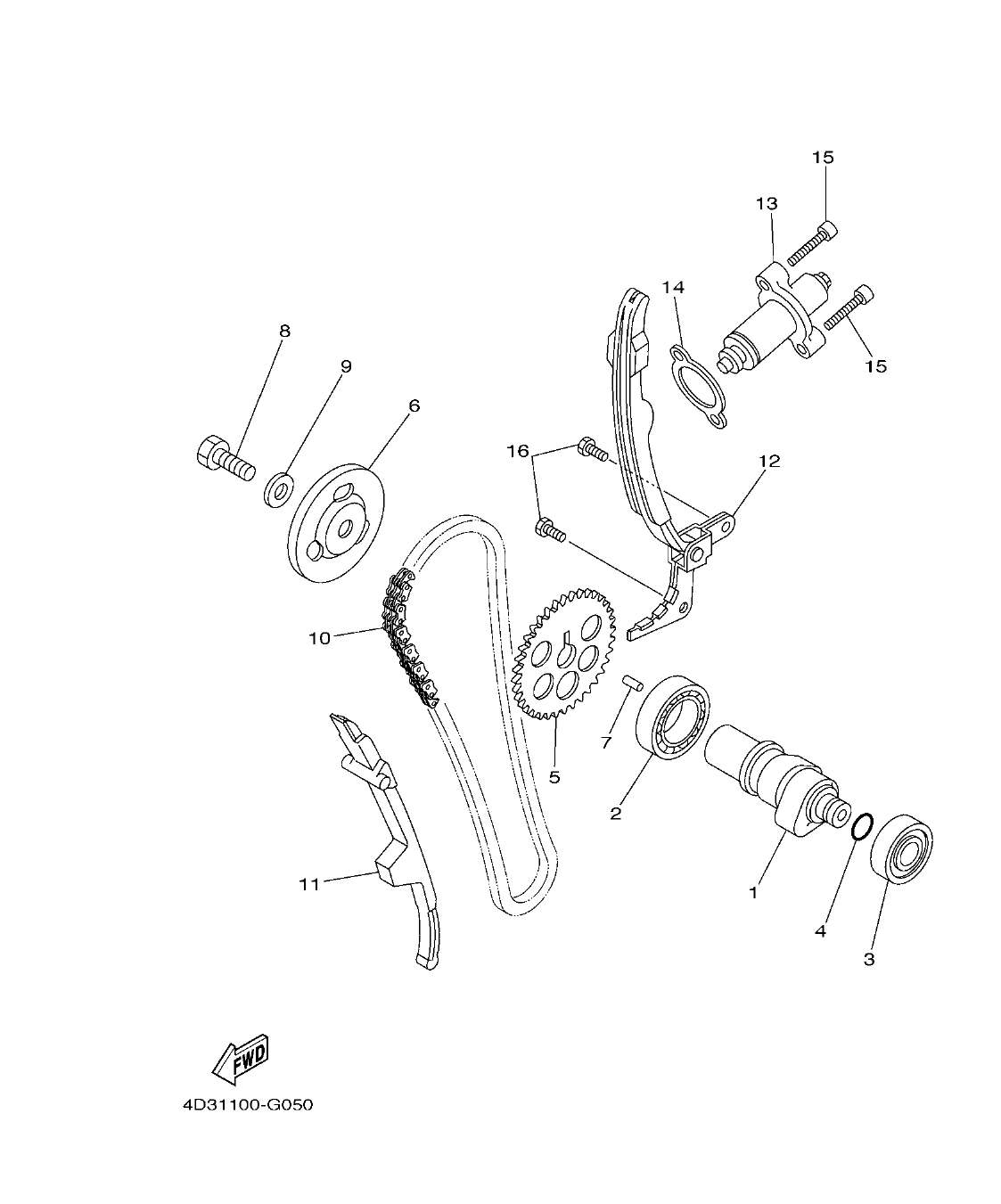

Section 5: CAMSHAFT & CHAIN (v2)
Model code: 1BTM
Parts list
Section 5
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
1S4-12171-00
CAMSHAFT 1
|
1 | |
| 2 |
93306-00518
BEARING
|
1 | |
| 3 |
93306-20204
BEARING
KOYO
|
1 | |
| 4 |
93210-11453
O-RING
|
1 | |
| 5 |
5XT-12176-00
SPROCKET, CAM CHAIN
|
1 | |
| 6 |
4KB-11145-00
PLATE, BREATHER 2
|
1 | |
| 7 |
93604-10011
PIN, DOWEL
|
1 | |
| 8 |
90101-10016
BOLT
|
1 | |
| 9 |
90201-10591
WASHER, PLATE
|
1 | |
| 10 |
94582-19104
CHAIN (DID SCR-0404 SV 104LE)
DAIDO
|
1 |
51.40 AED
Check price & stock on WhatsApp
|
| 11 |
5BP-12231-00
GUIDE, STOPPER 1
|
1 | |
| 12 |
5XT-12241-01
GUIDE, STOPPER 2
|
1 | |
| 13 |
5XT-12210-00
TENSIONER ASSY, CAM CHAIN
|
1 | |
| 14 |
4FM-12213-00
GASKET, TENSIONER CASE
|
1 | |
| 15 |
91312-06025
BOLT
|
2 | |
| 16 |
90101-06043
BOLT
|
2 |
